Hewlett-Packard Company ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE) SPECpower_ssj2008 = 866 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Cupertino, CA, USA Test Date: Feb 6, 2009
Hardware Availability: Jan-2009 Software Availability: May-2009 Publication: Feb 25, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 786 20.8
Calibration 2 795 20.4
Calibration 3 800 20.4
100% 799 20.4
90% 775 20.4
80% 745 20.4
70% 715 20.4
60% 687 20.4
50% 655 20.4
40% 619 20.4
30% 576 20.4
20% 520 20.4
10% 468 20.4
Active Idle 444 20.4

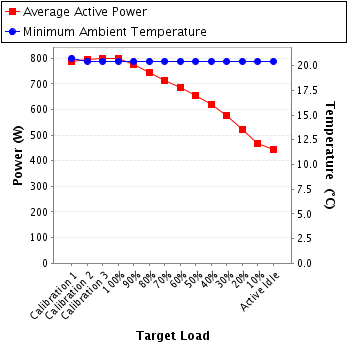

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91FB02050
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Instrument Calibration Service
Calibration Label: 67961
Date of Calibration: 02-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-62d59d34
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: OS Supplied
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
The power connection between the power analyzer and the SUT power supplies was a passive power strip and 3 power cords
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 205 300 4.03 5 0.949 786 --
Calibration 2 205 300 4.08 5 0.950 795 --
Calibration 3 205 300 4.11 5 0.950 800 --
100% 205 300 4.10 5 0.950 799 --
90% 205 300 3.99 5 0.948 775 --
80% 205 300 3.84 5 0.946 745 --
70% 205 300 3.70 5 0.944 715 --
60% 205 300 3.56 5 0.942 687 --
50% 205 300 3.40 5 0.940 655 --
40% 205 300 3.23 5 0.938 619 --
30% 205 300 3.01 5 0.936 576 --
20% 205 300 2.73 5 0.931 520 --
10% 205 300 2.47 5 0.924 468 --
Active Idle 205 300 2.35 5 0.920 444 --
Power details for pwr1
