SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY TX300 S4 (Intel Xeon L5430) | SPECpower_ssj2008 = 916 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 19.02.2009 |
| Hardware Availability: | Sep-2008 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

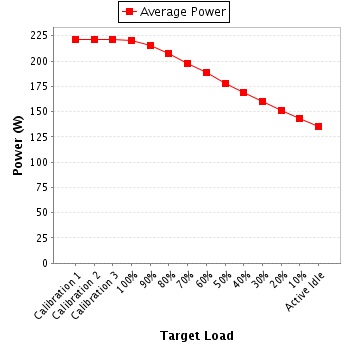

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 222 | 22.3 |
| Calibration 2 | 221 | 22.3 |
| Calibration 3 | 221 | 22.3 |
| 100% | 221 | 22.3 |
| 90% | 215 | 22.3 |
| 80% | 208 | 22.3 |
| 70% | 198 | 22.3 |
| 60% | 189 | 22.3 |
| 50% | 178 | 22.3 |
| 40% | 169 | 22.3 |
| 30% | 160 | 22.3 |
| 20% | 151 | 22.3 |
| 10% | 143 | 22.3 |
| Active Idle | 135 | 22.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES |
| Calibration Label: | 11780806.1f |
| Date of Calibration: | 25-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 228 | 250V | 1.05 | 1.20A | 0.926 | 222 | -- |
| Calibration 2 | 228 | 250V | 1.05 | 1.20A | 0.926 | 221 | -- |
| Calibration 3 | 228 | 250V | 1.05 | 1.20A | 0.926 | 221 | -- |
| 100% | 228 | 250V | 1.05 | 1.20A | 0.925 | 221 | -- |
| 90% | 228 | 250V | 1.03 | 1.20A | 0.921 | 215 | -- |
| 80% | 228 | 250V | 0.995 | 1.20A | 0.916 | 208 | -- |
| 70% | 228 | 250V | 0.956 | 1.20A | 0.908 | 198 | -- |
| 60% | 228 | 250V | 0.919 | 1.20A | 0.899 | 189 | -- |
| 50% | 228 | 250V | 0.878 | 1.20A | 0.889 | 178 | -- |
| 40% | 228 | 250V | 0.841 | 1.20A | 0.878 | 169 | -- |
| 30% | 228 | 250V | 0.808 | 1.20A | 0.867 | 160 | -- |
| 20% | 228 | 250V | 0.774 | 1.20A | 0.856 | 151 | -- |
| 10% | 229 | 250V | 0.742 | 1.20A | 0.845 | 143 | -- |
| Active Idle | 228 | 250V | 0.711 | 1.20A | 0.835 | 135 | -- |
