SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G5 (3.00GHz, Intel Xeon 5160 processor) | SPECpower_ssj2008 = 382 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 24, 2009 |
| Hardware Availability: | May-2006 | Software Availability: | Apr-2008 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

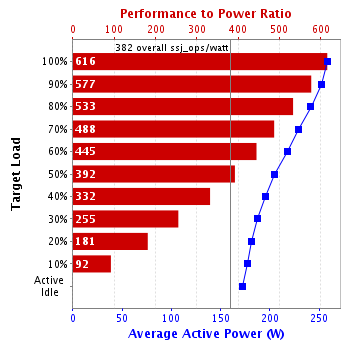

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.1% | 159,151 | 258 | 616 |
| 90% | 90.5% | 145,448 | 252 | 577 |
| 80% | 80.3% | 128,930 | 242 | 533 |
| 70% | 69.6% | 111,889 | 229 | 488 |
| 60% | 60.4% | 97,074 | 218 | 445 |
| 50% | 50.0% | 80,396 | 205 | 392 |
| 40% | 40.4% | 64,855 | 195 | 332 |
| 30% | 29.8% | 47,810 | 187 | 255 |
| 20% | 20.5% | 32,947 | 182 | 181 |
| 10% | 10.1% | 16,254 | 177 | 91.9 |
| Active Idle | 0 | 172 | 0 | |
| ∑ssj_ops / ∑power = | 382 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL380 G5 (3.00GHz, Intel Xeon 5160 processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL380 G5 (3.00GHz, Intel Xeon 5160 processor) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 3.00GHz, 4 MB L2 shared, 1333 MHz system bus |
| CPU Frequency (MHz): | 3000 |
| CPU(s) Enabled: | 4 cores, 2 chips, 2 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 GB |
| Memory Details: | PC2-5300F CL5 LP; slots 1,3 populated |
| Power Supply Quantity and Rating (W): | 1 x 1000 |
| Power Supply Details: | HP part# 379124-001 |
| Disk Drive: | 1 x 36GB 10K RPM SAS |
| Disk Controller: | HP Smart Array P400 |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC373i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | HP Dynamic Power Regulator enabled |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems,Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns3000m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | Used "start /AFFINITY" "0x3","0xc" CPU masks. |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard |
| Model: | ProLiant DL360 G3 |
| CPU Description: | Intel Xeon |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional |
| JVM Vendor: | BEA Systems,Inc. |
| JVM Version: | BEA JRockit(R) (build R27.2.0-131-78843-1.6.0-20070320-1457-windows-ia32, compiled mode) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 705420 |
| Date of Calibration: | 26-Nov-2008 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 258 | 22.2 |
| 90% | 252 | 22.2 |
| 80% | 242 | 22.1 |
| 70% | 229 | 22.1 |
| 60% | 218 | 22.1 |
| 50% | 205 | 22.1 |
| 40% | 195 | 22.1 |
| 30% | 187 | 22.1 |
| 20% | 182 | 22.1 |
| 10% | 177 | 22.1 |
| Active Idle | 172 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.1 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 158,573 | ||
| Calibration 2 | 160,643 | ||
| Calibration 3 | 160,672 | ||
| ssj_ops@calibrated=160,657 | |||
| 100% | 99.1% | 160,657 | 159,151 |
| 90% | 90.5% | 144,592 | 145,448 |
| 80% | 80.3% | 128,526 | 128,930 |
| 70% | 69.6% | 112,460 | 111,889 |
| 60% | 60.4% | 96,394 | 97,074 |
| 50% | 50.0% | 80,329 | 80,396 |
| 40% | 40.4% | 64,263 | 64,855 |
| 30% | 29.8% | 48,197 | 47,810 |
| 20% | 20.5% | 32,131 | 32,947 |
| 10% | 10.1% | 16,066 | 16,254 |
| Active Idle | 0 | 0 | |
