SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M2 | SPECpower_ssj2008 = 1,860 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | Mar 29, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | Jun-2009 | Publication: | Apr 23, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

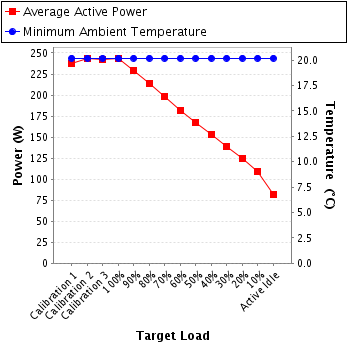

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 238 | 20.2 |
| Calibration 2 | 244 | 20.2 |
| Calibration 3 | 242 | 20.2 |
| 100% | 244 | 20.2 |
| 90% | 229 | 20.2 |
| 80% | 214 | 20.2 |
| 70% | 199 | 20.2 |
| 60% | 182 | 20.2 |
| 50% | 167 | 20.2 |
| 40% | 153 | 20.2 |
| 30% | 139 | 20.2 |
| 20% | 125 | 20.2 |
| 10% | 110 | 20.2 |
| Active Idle | 81.4 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB51133 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | SIMCO Electronics |
| Calibration Label: | 34436 |
| Date of Calibration: | 19-Jan-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Digiwatchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

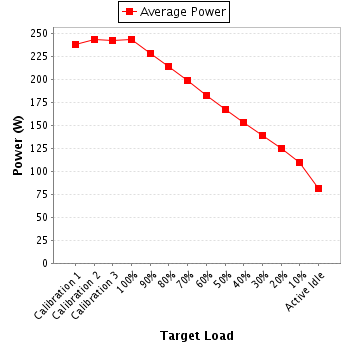

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300 | 1.21 | 2 | 0.958 | 238 | -- |
| Calibration 2 | 206 | 300 | 1.24 | 2 | 0.960 | 244 | -- |
| Calibration 3 | 206 | 300 | 1.23 | 2 | 0.959 | 242 | -- |
| 100% | 206 | 300 | 1.23 | 2 | 0.960 | 244 | -- |
| 90% | 206 | 300 | 1.16 | 2 | 0.955 | 229 | -- |
| 80% | 206 | 300 | 1.09 | 2 | 0.948 | 214 | -- |
| 70% | 206 | 300 | 1.03 | 2 | 0.940 | 199 | -- |
| 60% | 206 | 300 | 0.950 | 2 | 0.929 | 182 | -- |
| 50% | 207 | 300 | 0.883 | 2 | 0.917 | 167 | -- |
| 40% | 207 | 300 | 0.818 | 2 | 0.904 | 153 | -- |
| 30% | 206 | 300 | 0.757 | 2 | 0.890 | 139 | -- |
| 20% | 206 | 300 | 0.696 | 2 | 0.871 | 125 | -- |
| 10% | 206 | 300 | 0.630 | 2 | 0.842 | 110 | -- |
| Active Idle | 206 | 300 | 0.514 | 2 | 0.767 | 81.4 | -- |
