SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M2 | ssj_ops@100% = 620,270 ssj_ops@100% per JVM = 155,068 |
||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | Mar 29, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | Jun-2009 | Publication: | Apr 23, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 622,535 | ||
| Calibration 2 | 624,302 | ||
| Calibration 3 | 622,412 | ||
| ssj_ops@calibrated=623,357 | |||
| 100% | 99.5% | 623,357 | 620,270 |
| 90% | 90.0% | 561,021 | 560,826 |
| 80% | 80.1% | 498,686 | 499,591 |
| 70% | 70.4% | 436,350 | 438,538 |
| 60% | 59.8% | 374,014 | 372,799 |
| 50% | 50.1% | 311,678 | 312,052 |
| 40% | 40.0% | 249,343 | 249,157 |
| 30% | 30.1% | 187,007 | 187,353 |
| 20% | 20.0% | 124,671 | 124,759 |
| 10% | 9.9% | 62,336 | 61,878 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | IBM System x3650 M2 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3650 M2 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600 CL9 ECC; slots 3, 6, 11 and 14 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM P/N 39Y7200 |
| Disk Drive: | 1 x 32 GB SATA SSD, IBM Feature code 3747 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Balanced" power scheme) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0,F00,F000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1675 |
| JVM Maximum Heap (MB): | 1675 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | SUT |
| Other Software: | None |

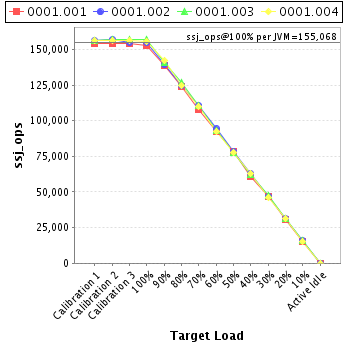

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 152,555 |
| 0001.002 | 154,860 |
| 0001.003 | 157,102 |
| 0001.004 | 155,753 |
| ssj_ops@100% | 620,270 |
| ssj_ops@100% per JVM | 155,068 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 154,076 | ||
| Calibration 2 | 154,229 | ||
| Calibration 3 | 154,052 | ||
| ssj_ops@calibrated=154,141 | |||
| 100% | 99.0% | 154,141 | 152,555 |
| 90% | 90.1% | 138,727 | 138,867 |
| 80% | 80.6% | 123,313 | 124,162 |
| 70% | 69.9% | 107,898 | 107,693 |
| 60% | 60.1% | 92,484 | 92,708 |
| 50% | 50.7% | 77,070 | 78,181 |
| 40% | 39.7% | 61,656 | 61,169 |
| 30% | 30.2% | 46,242 | 46,557 |
| 20% | 20.1% | 30,828 | 30,991 |
| 10% | 9.9% | 15,414 | 15,183 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 155,979 | ||
| Calibration 2 | 156,679 | ||
| Calibration 3 | 155,177 | ||
| ssj_ops@calibrated=155,928 | |||
| 100% | 99.3% | 155,928 | 154,860 |
| 90% | 89.2% | 140,335 | 139,124 |
| 80% | 79.8% | 124,742 | 124,356 |
| 70% | 70.8% | 109,149 | 110,452 |
| 60% | 60.5% | 93,557 | 94,295 |
| 50% | 50.2% | 77,964 | 78,225 |
| 40% | 40.3% | 62,371 | 62,883 |
| 30% | 30.1% | 46,778 | 46,886 |
| 20% | 20.1% | 31,186 | 31,307 |
| 10% | 10.0% | 15,593 | 15,633 |
| Active Idle | 0 | 0 | |

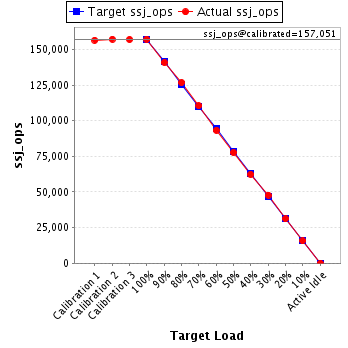

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 156,524 | ||
| Calibration 2 | 157,167 | ||
| Calibration 3 | 156,934 | ||
| ssj_ops@calibrated=157,051 | |||
| 100% | 100.0% | 157,051 | 157,102 |
| 90% | 89.7% | 141,346 | 140,836 |
| 80% | 80.7% | 125,640 | 126,692 |
| 70% | 70.3% | 109,935 | 110,476 |
| 60% | 59.4% | 94,230 | 93,308 |
| 50% | 49.5% | 78,525 | 77,668 |
| 40% | 39.7% | 62,820 | 62,311 |
| 30% | 30.5% | 47,115 | 47,832 |
| 20% | 19.8% | 31,410 | 31,149 |
| 10% | 10.0% | 15,705 | 15,695 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 155,956 | ||
| Calibration 2 | 156,226 | ||
| Calibration 3 | 156,249 | ||
| ssj_ops@calibrated=156,238 | |||
| 100% | 99.7% | 156,238 | 155,753 |
| 90% | 90.9% | 140,614 | 141,999 |
| 80% | 79.6% | 124,990 | 124,382 |
| 70% | 70.4% | 109,367 | 109,917 |
| 60% | 59.2% | 93,743 | 92,488 |
| 50% | 49.9% | 78,119 | 77,977 |
| 40% | 40.2% | 62,495 | 62,794 |
| 30% | 29.5% | 46,871 | 46,078 |
| 20% | 20.0% | 31,248 | 31,312 |
| 10% | 9.8% | 15,624 | 15,366 |
| Active Idle | 0 | 0 | |
