SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570) | SPECpower_ssj2008 = 1,586 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 20, 2009 |
| Hardware Availability: | Apr-2009 | Software Availability: | May-2009 | Publication: | Apr 23, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

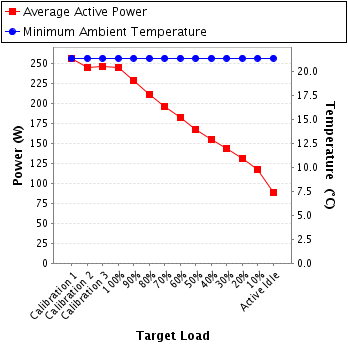

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 257 | 21.4 |
| Calibration 2 | 246 | 21.4 |
| Calibration 3 | 246 | 21.4 |
| 100% | 245 | 21.4 |
| 90% | 230 | 21.4 |
| 80% | 212 | 21.4 |
| 70% | 197 | 21.4 |
| 60% | 183 | 21.4 |
| 50% | 167 | 21.4 |
| 40% | 155 | 21.4 |
| 30% | 144 | 21.4 |
| 20% | 131 | 21.4 |
| 10% | 117 | 21.4 |
| Active Idle | 88.4 | 21.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB53024 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1739 |
| Date of Calibration: | 20-Dec-2008 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300 | 1.30 | 2 | 0.968 | 257 | -- |
| Calibration 2 | 205 | 300 | 1.24 | 2 | 0.966 | 246 | -- |
| Calibration 3 | 205 | 300 | 1.24 | 2 | 0.968 | 246 | -- |
| 100% | 205 | 300 | 1.24 | 2 | 0.968 | 245 | -- |
| 90% | 206 | 300 | 1.16 | 2 | 0.964 | 230 | -- |
| 80% | 206 | 300 | 1.07 | 2 | 0.959 | 212 | -- |
| 70% | 206 | 300 | 1.00 | 2 | 0.954 | 197 | -- |
| 60% | 206 | 300 | 0.937 | 2 | 0.948 | 183 | -- |
| 50% | 206 | 300 | 0.859 | 2 | 0.948 | 167 | -- |
| 40% | 206 | 300 | 0.783 | 2 | 0.963 | 155 | -- |
| 30% | 206 | 300 | 0.726 | 2 | 0.960 | 144 | -- |
| 20% | 206 | 300 | 0.670 | 2 | 0.952 | 131 | -- |
| 10% | 206 | 300 | 0.608 | 2 | 0.937 | 117 | -- |
| Active Idle | 206 | 300 | 0.481 | 2 | 0.892 | 88.4 | -- |
