Sun Microsystems, Inc. Sun Netra X4250 | ssj_ops@100% = 229,828 ssj_ops@100% per JVM = 28,728 |
||||
Test Sponsor: | Sun Microsystems, Inc. | SPEC License #: | 6 | Test Method: | Single Node |
Tested By: | Sun Microsystems, Inc. | Test Location: | Burlington, MA, USA | Test Date: | Apr 20, 2009 |
Hardware Availability: | Jul-2008 | Software Availability: | May-2009 | Publication: | May 6, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 232,752 | ||
Calibration 2 | 232,030 | ||
Calibration 3 | 231,219 | ||
ssj_ops@calibrated=231,625 | |||
100% | 99.2% | 231,625 | 229,828 |
90% | 90.1% | 208,462 | 208,601 |
80% | 79.8% | 185,300 | 184,875 |
70% | 70.1% | 162,137 | 162,384 |
60% | 59.8% | 138,975 | 138,548 |
50% | 49.8% | 115,812 | 115,284 |
40% | 40.1% | 92,650 | 92,768 |
30% | 29.8% | 69,487 | 68,959 |
20% | 19.8% | 46,325 | 45,752 |
10% | 9.9% | 23,162 | 22,866 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | Sun Netra X4250 |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Sun Microsystems, Inc. |
Model: | Sun Netra X4250 |
Form Factor: | 2U |
CPU Name: | Intel Xeon L5408 |
CPU Characteristics: | Quad-Core, 2.13 GHz, 2x6MB shared L2 cache, 1066 MHz system bus |
CPU Frequency (MHz): | 2133 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 8 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
Tertiary Cache: | None |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 8 x 4096 MB |
Memory Details: | 4GB 2Rx4 PC2-5300F ECC CL5 (Sun P/N X6382A); slots A0-1,B0-1,C0-1,D0-1 populated |
Power Supply Quantity and Rating (W): | 2 x 658 |
Power Supply Details: | Sun P/N 300-2015 |
Disk Drive: | 4 x Sun 146GB 10K RPM SAS (Sun P/N 540-7152) |
Disk Controller: | Integrated SAS controller |
# and type of Network Interface Cards (NICs) Installed: | 4 x on-board Intel Gigabit Ethernet, Sun x8 PCIe Quad Gigabit Ethernet option card (Sun P/N X4447A-Z) |
NICs Enabled in Firmware / OS / Connected: | 8/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (Server Balanced Processor Power and Performance) |
Operating System (OS): | Microsoft Windows Server 2003 R2, Enterprise x64 Edition with Service Pack 2 |
OS Version: | Version 5.2 R2 (Build 3790.srv03_sp2_rtm.070216-1710: Service Pack 2) (64 bit) |
Filesystem: | NTFS |
JVM Vendor: | Sun Microsystems, Inc. |
JVM Version: | Java HotSpot(TM) 32-Bit Server VM on Windows version 1.6.0_14 |
JVM Command-line Options: | -server -Xmx1400m -Xms1400m -Xmn1150m -XX:+AggressiveOpts -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:+UseStringCache -XX:PermSize=12m -XX:MaxPermSize=12m -XX:+UseLargePages -XX:AllocatePrefetchStyle=2 -XX:BiasedLockingStartupDelay=500 |
JVM Affinity: | start /affinity [0x01, 0x10, 0x02, 0x20, 0x04, 0x40, 0x08, 0x80] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 1400 |
JVM Maximum Heap (MB): | 1400 |
JVM Address Bits: | 32 |
Boot Firmware Version: | AMIBIOS version 08.00.14 |
Management Firmware Version: | Sun Integrated Lights Out Manager version 2.0.2.6 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | Platform-specific drivers installed from Sun Netra X4250 Tools and Drivers DVD Version 2.1N |

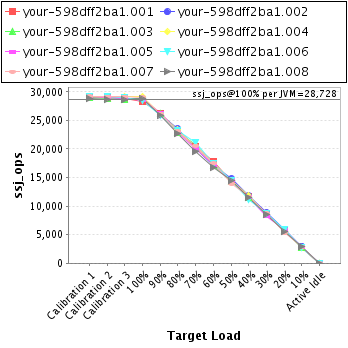

JVM Instance | ssj_ops@100% |
---|---|
your-598dff2ba1.001 | 28,284 |
your-598dff2ba1.002 | 28,829 |
your-598dff2ba1.003 | 28,755 |
your-598dff2ba1.004 | 29,203 |
your-598dff2ba1.005 | 28,487 |
your-598dff2ba1.006 | 28,471 |
your-598dff2ba1.007 | 29,045 |
your-598dff2ba1.008 | 28,754 |
ssj_ops@100% | 229,828 |
ssj_ops@100% per JVM | 28,728 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 29,133 | ||
Calibration 2 | 28,997 | ||
Calibration 3 | 28,918 | ||
ssj_ops@calibrated=28,957 | |||
100% | 97.7% | 28,957 | 28,284 |
90% | 90.3% | 26,062 | 26,160 |
80% | 80.2% | 23,166 | 23,212 |
70% | 70.4% | 20,270 | 20,391 |
60% | 61.5% | 17,374 | 17,822 |
50% | 49.4% | 14,479 | 14,319 |
40% | 40.6% | 11,583 | 11,754 |
30% | 29.8% | 8,687 | 8,621 |
20% | 20.2% | 5,791 | 5,842 |
10% | 9.6% | 2,896 | 2,779 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 29,096 | ||
Calibration 2 | 29,096 | ||
Calibration 3 | 28,879 | ||
ssj_ops@calibrated=28,987 | |||
100% | 99.5% | 28,987 | 28,829 |
90% | 89.8% | 26,089 | 26,044 |
80% | 81.2% | 23,190 | 23,536 |
70% | 69.0% | 20,291 | 20,002 |
60% | 58.9% | 17,392 | 17,063 |
50% | 51.0% | 14,494 | 14,798 |
40% | 40.7% | 11,595 | 11,802 |
30% | 30.6% | 8,696 | 8,883 |
20% | 20.2% | 5,797 | 5,854 |
10% | 10.4% | 2,899 | 3,017 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 28,988 | ||
Calibration 2 | 28,805 | ||
Calibration 3 | 28,727 | ||
ssj_ops@calibrated=28,766 | |||
100% | 100.0% | 28,766 | 28,755 |
90% | 91.0% | 25,889 | 26,169 |
80% | 79.6% | 23,013 | 22,887 |
70% | 72.0% | 20,136 | 20,706 |
60% | 59.7% | 17,260 | 17,164 |
50% | 49.9% | 14,383 | 14,358 |
40% | 40.1% | 11,506 | 11,542 |
30% | 29.7% | 8,630 | 8,550 |
20% | 19.8% | 5,753 | 5,704 |
10% | 9.7% | 2,877 | 2,792 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 29,162 | ||
Calibration 2 | 29,076 | ||
Calibration 3 | 29,174 | ||
ssj_ops@calibrated=29,125 | |||
100% | 100.3% | 29,125 | 29,203 |
90% | 89.2% | 26,213 | 25,967 |
80% | 80.1% | 23,300 | 23,341 |
70% | 68.8% | 20,388 | 20,026 |
60% | 60.2% | 17,475 | 17,533 |
50% | 49.8% | 14,563 | 14,508 |
40% | 40.7% | 11,650 | 11,854 |
30% | 29.3% | 8,738 | 8,533 |
20% | 19.7% | 5,825 | 5,744 |
10% | 9.6% | 2,913 | 2,800 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 29,108 | ||
Calibration 2 | 29,021 | ||
Calibration 3 | 28,839 | ||
ssj_ops@calibrated=28,930 | |||
100% | 98.5% | 28,930 | 28,487 |
90% | 91.0% | 26,037 | 26,322 |
80% | 78.8% | 23,144 | 22,810 |
70% | 69.5% | 20,251 | 20,118 |
60% | 59.7% | 17,358 | 17,263 |
50% | 50.2% | 14,465 | 14,514 |
40% | 40.0% | 11,572 | 11,581 |
30% | 28.4% | 8,679 | 8,225 |
20% | 20.3% | 5,786 | 5,879 |
10% | 9.8% | 2,893 | 2,846 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 29,195 | ||
Calibration 2 | 29,123 | ||
Calibration 3 | 29,000 | ||
ssj_ops@calibrated=29,062 | |||
100% | 98.0% | 29,062 | 28,471 |
90% | 88.8% | 26,156 | 25,804 |
80% | 80.2% | 23,249 | 23,298 |
70% | 72.4% | 20,343 | 21,050 |
60% | 59.9% | 17,437 | 17,415 |
50% | 49.7% | 14,531 | 14,457 |
40% | 38.1% | 11,625 | 11,082 |
30% | 30.2% | 8,719 | 8,789 |
20% | 20.2% | 5,812 | 5,867 |
10% | 9.7% | 2,906 | 2,829 |
Active Idle | 0 | 0 |

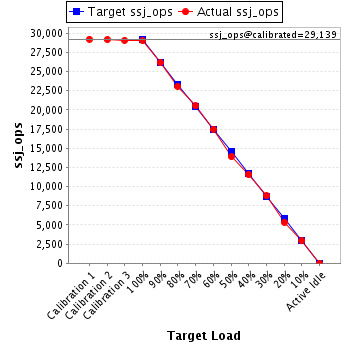

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 29,238 | ||
Calibration 2 | 29,175 | ||
Calibration 3 | 29,103 | ||
ssj_ops@calibrated=29,139 | |||
100% | 99.7% | 29,139 | 29,045 |
90% | 89.9% | 26,225 | 26,188 |
80% | 79.2% | 23,311 | 23,085 |
70% | 70.4% | 20,397 | 20,525 |
60% | 60.0% | 17,483 | 17,496 |
50% | 47.8% | 14,569 | 13,917 |
40% | 39.8% | 11,656 | 11,609 |
30% | 30.1% | 8,742 | 8,777 |
20% | 18.4% | 5,828 | 5,362 |
10% | 10.0% | 2,914 | 2,917 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 28,832 | ||
Calibration 2 | 28,736 | ||
Calibration 3 | 28,579 | ||
ssj_ops@calibrated=28,658 | |||
100% | 100.3% | 28,658 | 28,754 |
90% | 90.5% | 25,792 | 25,948 |
80% | 79.2% | 22,926 | 22,706 |
70% | 68.3% | 20,060 | 19,566 |
60% | 58.6% | 17,195 | 16,791 |
50% | 50.3% | 14,329 | 14,413 |
40% | 40.3% | 11,463 | 11,546 |
30% | 29.9% | 8,597 | 8,581 |
20% | 19.2% | 5,732 | 5,500 |
10% | 10.1% | 2,866 | 2,887 |
Active Idle | 0 | 0 |
