SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) | SPECpower_ssj2008 = 927 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Cupertino, CA, USA | Test Date: | Apr 15, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | May-2009 | Publication: | Jun 3, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

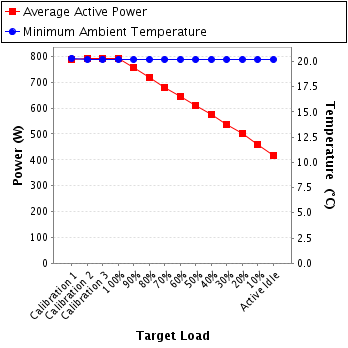

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 787 | 20.3 |
| Calibration 2 | 791 | 20.2 |
| Calibration 3 | 793 | 20.2 |
| 100% | 792 | 20.2 |
| 90% | 757 | 20.2 |
| 80% | 719 | 20.2 |
| 70% | 681 | 20.2 |
| 60% | 646 | 20.2 |
| 50% | 610 | 20.2 |
| 40% | 575 | 20.2 |
| 30% | 538 | 20.2 |
| 20% | 502 | 20.2 |
| 10% | 461 | 20.2 |
| Active Idle | 418 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91FB02050 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Instrument Calibration Service |
| Calibration Label: | 67961 |
| Date of Calibration: | 02-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-62d59d34 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | OS Supplied |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

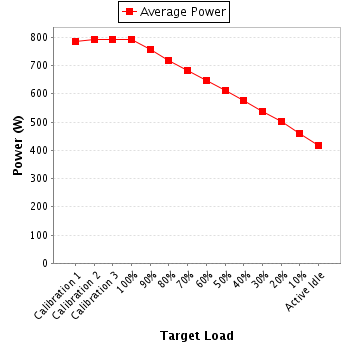

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300 | 4.12 | 5 | 0.928 | 787 | -- |
| Calibration 2 | 205 | 300 | 4.16 | 5 | 0.928 | 791 | -- |
| Calibration 3 | 205 | 300 | 4.17 | 5 | 0.928 | 793 | -- |
| 100% | 205 | 300 | 4.16 | 5 | 0.928 | 792 | -- |
| 90% | 205 | 300 | 3.99 | 5 | 0.926 | 757 | -- |
| 80% | 205 | 300 | 3.80 | 5 | 0.924 | 719 | -- |
| 70% | 205 | 300 | 3.61 | 5 | 0.922 | 681 | -- |
| 60% | 205 | 300 | 3.43 | 5 | 0.920 | 646 | -- |
| 50% | 205 | 300 | 3.25 | 5 | 0.918 | 610 | -- |
| 40% | 205 | 300 | 3.07 | 5 | 0.916 | 575 | -- |
| 30% | 205 | 300 | 2.88 | 5 | 0.913 | 538 | -- |
| 20% | 205 | 300 | 2.70 | 5 | 0.910 | 502 | -- |
| 10% | 205 | 300 | 2.48 | 5 | 0.906 | 461 | -- |
| Active Idle | 205 | 300 | 2.26 | 5 | 0.900 | 418 | -- |
