IBM Corporation IBM System x3650 M2 SPECpower_ssj2008 = 1,929 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: May 14, 2009
Hardware Availability: Jun-2009 Software Availability: Jun-2009 Publication: May 20, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 233 22.1
Calibration 2 236 21.9
Calibration 3 236 21.7
100% 236 21.6
90% 222 21.5
80% 207 21.3
70% 191 21.3
60% 176 21.2
50% 162 21.1
40% 147 21.1
30% 134 21.1
20% 120 21.0
10% 104 21.0
Active Idle 72.2 20.9
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB51131
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SIMCO Electronics
Calibration Label: 34441
Date of Calibration: 19-Jan-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 1.19 2.0 0.956 233 0.4%
Calibration 2 204 300.0 1.21 2.0 0.957 236 0.4%
Calibration 3 204 300.0 1.21 2.0 0.958 236 0.4%
100% 204 300.0 1.21 2.0 0.958 236 0.4%
90% 204 300.0 1.14 2.0 0.952 222 0.4%
80% 204 300.0 1.07 2.0 0.945 207 0.5%
70% 204 300.0 1.00 2.0 0.936 191 0.5%
60% 204 300.0 0.934 2.0 0.925 176 0.5%
50% 204 300.0 0.867 2.0 0.914 162 0.6%
40% 204 300.0 0.803 2.0 0.900 147 0.6%
30% 204 300.0 0.742 2.0 0.885 134 0.7%
20% 204 300.0 0.680 1.0 0.863 120 0.5%
10% 204 300.0 0.612 1.0 0.831 104 0.5%
Active Idle 204 300.0 0.479 1.0 0.737 72.2 0.7%

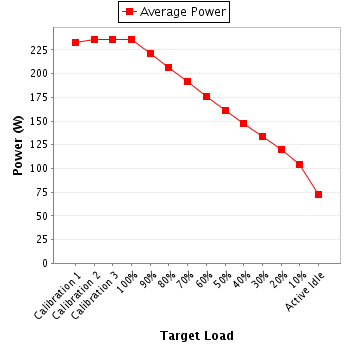

Power details for pwr1
