IBM Corporation IBM System x3400 M2 SPECpower_ssj2008 = 1,750 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: May 19, 2009
Hardware Availability: May-2009 Software Availability: May-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 223 24.6
Calibration 2 224 24.6
Calibration 3 224 24.8
100% 223 24.8
90% 211 24.7
80% 199 24.6
70% 186 24.6
60% 173 24.6
50% 161 24.6
40% 148 24.6
30% 135 24.6
20% 121 24.5
10% 104 24.6
Active Idle 70.9 24.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H245650
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 09-04-BAC-150-01
Date of Calibration: 13-Apr-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.16 2.0 0.918 223 0.5%
Calibration 2 209 300.0 1.17 2.0 0.919 224 0.5%
Calibration 3 209 300.0 1.16 2.0 0.919 224 0.5%
100% 209 300.0 1.16 2.0 0.919 223 0.5%
90% 209 300.0 1.11 2.0 0.912 211 0.5%
80% 207 300.0 1.06 2.0 0.908 199 0.5%
70% 207 300.0 1.00 1.0 0.900 186 0.4%
60% 207 300.0 0.939 1.0 0.891 173 0.4%
50% 207 300.0 0.881 1.0 0.882 161 0.4%
40% 207 300.0 0.819 1.0 0.872 148 0.4%
30% 207 300.0 0.757 1.0 0.861 135 0.4%
20% 207 300.0 0.690 1.0 0.847 121 0.5%
10% 207 300.0 0.608 1.0 0.824 104 0.5%
Active Idle 208 300.0 0.442 0.5 0.772 70.9 0.5%

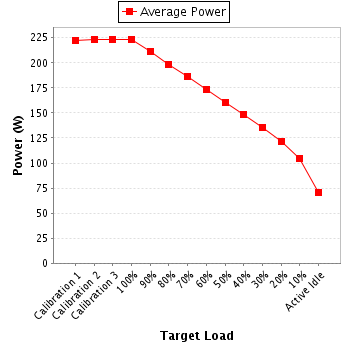

Power details for pwr1
