Plat'Home Cloud Station E | ssj_ops@100% = 443,893 ssj_ops@100% per JVM = 221,947 |
||||
Test Sponsor: | Plat'Home | SPEC License #: | 3835 | Test Method: | Single Node |
Tested By: | Plat'Home | Test Location: | Chiyoda-Ku, Tokyo, Japan | Test Date: | Jul 21, 2009 |
Hardware Availability: | Mar-2009 | Software Availability: | Jun-2009 | Publication: | Aug 24, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 440,496 | ||
Calibration 2 | 444,678 | ||
Calibration 3 | 446,106 | ||
ssj_ops@calibrated=445,392 | |||
100% | 99.7% | 445,392 | 443,893 |
90% | 90.3% | 400,853 | 402,134 |
80% | 80.3% | 356,313 | 357,504 |
70% | 70.0% | 311,774 | 311,959 |
60% | 59.8% | 267,235 | 266,197 |
50% | 50.1% | 222,696 | 223,317 |
40% | 39.9% | 178,157 | 177,617 |
30% | 29.8% | 133,618 | 132,760 |
20% | 20.0% | 89,078 | 89,033 |
10% | 9.8% | 44,539 | 43,724 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Plat'Home |
Model: | Cloud Station E |
Form Factor: | 1U |
CPU Name: | Intel Xeon L5520 |
CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 2260 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4 x 2 GB |
Memory Details: | DDR3-1333 CL5 Unregistered SDRAM; slots A1 ,B1 ,D1 ,and E1 populated |
Power Supply Quantity and Rating (W): | 1 x 450 |
Power Supply Details: | 3Y POWER TECHNOLOGY (YM-2451C) |
Disk Drive: | 1 x 32 GB SSD 2.5" SATA (Intel SSDSA2SH032G1GN) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Network Adapter |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition SP2 |
OS Version: | SP2(64-bit) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
JVM Command-line Options: | -Xms2700m -Xmx2700m -Xns2200m -XXthroughputcompaction -XXlazyunlocking -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=8 -XXtlasize:min=12k,preferred=1024k |
JVM Affinity: | start /affinity [00FF,FF00] |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 2700 |
JVM Maximum Heap (MB): | 2700 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 37 |
Management Firmware Version: | 38 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |

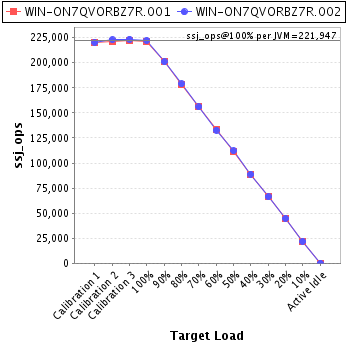

JVM Instance | ssj_ops@100% |
---|---|
WIN-ON7QVORBZ7R.001 | 221,649 |
WIN-ON7QVORBZ7R.002 | 222,244 |
ssj_ops@100% | 443,893 |
ssj_ops@100% per JVM | 221,947 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,249 | ||
Calibration 2 | 221,682 | ||
Calibration 3 | 222,536 | ||
ssj_ops@calibrated=222,109 | |||
100% | 99.8% | 222,109 | 221,649 |
90% | 90.5% | 199,898 | 201,111 |
80% | 80.4% | 177,687 | 178,648 |
70% | 70.2% | 155,476 | 156,011 |
60% | 60.1% | 133,265 | 133,485 |
50% | 50.1% | 111,054 | 111,251 |
40% | 39.9% | 88,844 | 88,681 |
30% | 30.0% | 66,633 | 66,540 |
20% | 19.9% | 44,422 | 44,242 |
10% | 9.9% | 22,211 | 21,948 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 220,247 | ||
Calibration 2 | 222,996 | ||
Calibration 3 | 223,570 | ||
ssj_ops@calibrated=223,283 | |||
100% | 99.5% | 223,283 | 222,244 |
90% | 90.0% | 200,955 | 201,023 |
80% | 80.1% | 178,626 | 178,856 |
70% | 69.8% | 156,298 | 155,948 |
60% | 59.4% | 133,970 | 132,711 |
50% | 50.2% | 111,641 | 112,066 |
40% | 39.8% | 89,313 | 88,936 |
30% | 29.7% | 66,985 | 66,220 |
20% | 20.1% | 44,657 | 44,791 |
10% | 9.8% | 22,328 | 21,776 |
Active Idle | 0 | 0 |
