ZT Systems 1224Ra Datacenter Server SPECpower_ssj2008 = 1,532 overall ssj_ops/watt
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX, USA Test Date: Aug 4, 2009
Hardware Availability: Jul-2009 Software Availability: Aug-2009 Publication: Aug 26, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 218 22.4
Calibration 2 219 21.3
Calibration 3 219 21.1
100% 218 20.9
90% 206 20.9
80% 193 20.9
70% 181 20.9
60% 165 20.9
50% 151 20.9
40% 138 20.9
30% 124 20.9
20% 111 20.9
10% 95.3 20.9
Active Idle 80.4 21.0

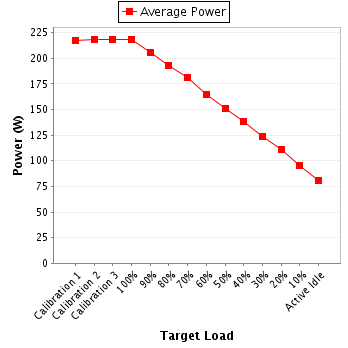

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91GB53037
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 3158212
Date of Calibration: 13-Mar-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 118 150.0 1.86 5.0 0.993 218 0.5%
Calibration 2 118 150.0 1.87 5.0 0.993 219 0.5%
Calibration 3 118 150.0 1.87 5.0 0.993 219 0.5%
100% 118 150.0 1.86 5.0 0.993 218 0.5%
90% 118 150.0 1.76 5.0 0.992 206 0.5%
80% 118 150.0 1.65 5.0 0.990 193 0.5%
70% 118 150.0 1.55 2.0 0.989 181 0.3%
60% 118 150.0 1.41 2.0 0.988 165 0.3%
50% 118 150.0 1.30 2.0 0.987 151 0.3%
40% 118 150.0 1.18 2.0 0.986 138 0.4%
30% 118 150.0 1.07 2.0 0.983 124 0.4%
20% 118 150.0 0.956 2.0 0.981 111 0.4%
10% 118 150.0 0.824 2.0 0.978 95.3 0.5%
Active Idle 118 150.0 0.697 2.0 0.974 80.4 0.5%
Power details for pwr1
