SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) | SPECpower_ssj2008 = 1,394 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Aug 11, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | Jul-2009 | Publication: | Aug 26, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

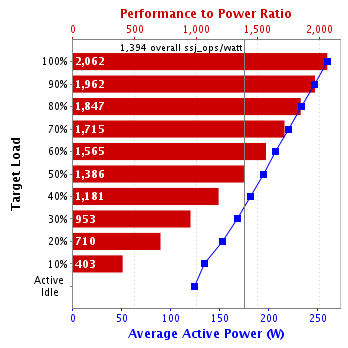

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.4% | 535,814 | 260 | 2,062 |
| 90% | 89.7% | 483,541 | 246 | 1,962 |
| 80% | 80.0% | 431,269 | 234 | 1,847 |
| 70% | 70.1% | 377,831 | 220 | 1,715 |
| 60% | 60.2% | 324,171 | 207 | 1,565 |
| 50% | 50.0% | 269,338 | 194 | 1,386 |
| 40% | 39.7% | 213,708 | 181 | 1,181 |
| 30% | 29.7% | 160,021 | 168 | 953 |
| 20% | 20.1% | 108,342 | 153 | 710 |
| 10% | 10.0% | 54,143 | 134 | 403 |
| Active Idle | 0 | 124 | 0 | |
| ∑ssj_ops / ∑power = | 1,394 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) |
| Form Factor: | 2U |
| CPU Name: | 2.6 GHz AMD Opteron 2435 |
| CPU Characteristics: | Six-core, 2.6 GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2600 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 12 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx4 PC2-6400P; slots 1 & 2 are populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | HP part # 503296-B21 |
| Disk Drive: | 1 x 120GB 5.4K RPM SFF SATA |
| Disk Controller: | Hp Smart Array P410/512 |
| # and type of Network Interface Cards (NICs) Installed: | 2 x HP NC382i Dual Port Multifunction Gigabit Server Adapters |
| NICs Enabled in Firmware / OS / Connected: | 4/4/2 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver mode |
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [3F,FC0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | A22 07/10/2009 |
| Management Firmware Version: | 1.79 08/07/2009 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL360 G5 |
| CPU Description: | Intel Xeon 5130 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Windows 2003 R2 Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47169 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 705452 |
| Date of Calibration: | 17-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 260 | 20.9 |
| 90% | 246 | 21.0 |
| 80% | 234 | 20.9 |
| 70% | 220 | 20.9 |
| 60% | 207 | 20.9 |
| 50% | 194 | 20.9 |
| 40% | 181 | 20.9 |
| 30% | 168 | 20.8 |
| 20% | 153 | 20.8 |
| 10% | 134 | 20.8 |
| Active Idle | 124 | 20.7 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.7 | 132 |

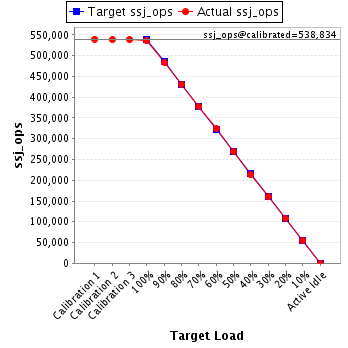

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 539,898 | ||
| Calibration 2 | 538,737 | ||
| Calibration 3 | 538,930 | ||
| ssj_ops@calibrated=538,834 | |||
| 100% | 99.4% | 538,834 | 535,814 |
| 90% | 89.7% | 484,950 | 483,541 |
| 80% | 80.0% | 431,067 | 431,269 |
| 70% | 70.1% | 377,184 | 377,831 |
| 60% | 60.2% | 323,300 | 324,171 |
| 50% | 50.0% | 269,417 | 269,338 |
| 40% | 39.7% | 215,533 | 213,708 |
| 30% | 29.7% | 161,650 | 160,021 |
| 20% | 20.1% | 107,767 | 108,342 |
| 10% | 10.0% | 53,883 | 54,143 |
| Active Idle | 0 | 0 | |
