Acer Incorporated Gateway GR160 F1 | SPECpower_ssj2008 = 1,515 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | San Jose, CA, USA | Test Date: | Oct 27, 2009 |
Hardware Availability: | Dec-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

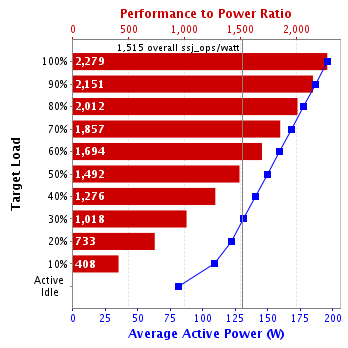

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.8% | 446,552 | 196 | 2,279 |
90% | 89.9% | 402,481 | 187 | 2,151 |
80% | 79.9% | 357,567 | 178 | 2,012 |
70% | 69.9% | 312,732 | 168 | 1,857 |
60% | 60.2% | 269,661 | 159 | 1,694 |
50% | 49.9% | 223,169 | 150 | 1,492 |
40% | 40.1% | 179,567 | 141 | 1,276 |
30% | 30.0% | 134,090 | 132 | 1,018 |
20% | 20.1% | 89,782 | 123 | 733 |
10% | 10.0% | 44,687 | 109 | 408 |
Active Idle | 0 | 81.4 | 0 | |
∑ssj_ops / ∑power = | 1,515 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GR160 F1 |
Form Factor: | 1U |
CPU Name: | Intel Xeon L5520 |
CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 2266 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8.0 |
# and size of DIMM: | 4 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor |
Power Supply Quantity and Rating (W): | 1 x 720 |
Power Supply Details: | Supermicro PWS-721P-1R |
Disk Drive: | Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC |
Disk Controller: | Intel ICH10R SATA 3.0Gbps Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced power enabled in OS |
Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
OS Version: | SP2 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
JVM Command-line Options: | -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00, 0xF000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1600 |
JVM Maximum Heap (MB): | 1600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | D03 10/23/2009 |
Management Firmware Version: | 0.03 10/03/2009 |
Workload Version: | SSJ 1.2.6 |
Director Location: | SUT |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GR160 F1 |
CPU Description: | Intel Xeon E5504 |
Memory amount (GB): | 4 |
Software | |
---|---|
Operating System (OS): | Windows Server 2008 x64, Enterprise Edition SP2 |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
CCS Version: | 1.2.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H851272 |
Connectivity: | RS232 |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | SE-Laboratories |
Calibration Label: | C56-0071 |
Date of Calibration: | 15-Jun-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.8-76a9e72a |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 196 | 21.8 |
90% | 187 | 21.8 |
80% | 178 | 21.8 |
70% | 168 | 21.8 |
60% | 159 | 21.9 |
50% | 150 | 21.8 |
40% | 141 | 21.7 |
30% | 132 | 21.7 |
20% | 123 | 21.6 |
10% | 109 | 21.6 |
Active Idle | 81.4 | 21.6 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 21.6 | 26 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 444,107 | ||
Calibration 2 | 448,461 | ||
Calibration 3 | 446,880 | ||
ssj_ops@calibrated=447,670 | |||
100% | 99.8% | 447,670 | 446,552 |
90% | 89.9% | 402,903 | 402,481 |
80% | 79.9% | 358,136 | 357,567 |
70% | 69.9% | 313,369 | 312,732 |
60% | 60.2% | 268,602 | 269,661 |
50% | 49.9% | 223,835 | 223,169 |
40% | 40.1% | 179,068 | 179,567 |
30% | 30.0% | 134,301 | 134,090 |
20% | 20.1% | 89,534 | 89,782 |
10% | 10.0% | 44,767 | 44,687 |
Active Idle | 0 | 0 |
