SPECpower_ssj2008
Host '220g6-13b-26-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,743 ssj_ops@100% per JVM = 128,186 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 509,594 | ||
| Calibration 2 | 513,558 | ||
| Calibration 3 | 512,311 | ||
| ssj_ops@calibrated=512,934 | |||
| 100% | 100.0% | 512,934 | 512,743 |
| 90% | 90.7% | 461,641 | 465,337 |
| 80% | 80.6% | 410,348 | 413,383 |
| 70% | 69.9% | 359,054 | 358,312 |
| 60% | 60.2% | 307,761 | 308,778 |
| 50% | 50.3% | 256,467 | 257,824 |
| 40% | 40.1% | 205,174 | 205,672 |
| 30% | 30.3% | 153,880 | 155,637 |
| 20% | 20.1% | 102,587 | 103,233 |
| 10% | 10.0% | 51,293 | 51,412 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-13b-26-da.001 | 129,244 |
| 220g6-13b-26-da.002 | 127,862 |
| 220g6-13b-26-da.003 | 129,128 |
| 220g6-13b-26-da.004 | 126,509 |
| ssj_ops@100% | 512,743 |
| ssj_ops@100% per JVM | 128,186 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,060 | ||
| Calibration 2 | 129,858 | ||
| Calibration 3 | 128,537 | ||
| ssj_ops@calibrated=129,197 | |||
| 100% | 100.0% | 129,197 | 129,244 |
| 90% | 90.8% | 116,278 | 117,283 |
| 80% | 81.3% | 103,358 | 105,083 |
| 70% | 70.3% | 90,438 | 90,880 |
| 60% | 60.0% | 77,518 | 77,543 |
| 50% | 50.5% | 64,599 | 65,204 |
| 40% | 40.3% | 51,679 | 52,110 |
| 30% | 30.5% | 38,759 | 39,392 |
| 20% | 20.4% | 25,839 | 26,381 |
| 10% | 9.7% | 12,920 | 12,541 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,423 | ||
| Calibration 2 | 127,612 | ||
| Calibration 3 | 127,941 | ||
| ssj_ops@calibrated=127,777 | |||
| 100% | 100.1% | 127,777 | 127,862 |
| 90% | 91.3% | 114,999 | 116,723 |
| 80% | 80.3% | 102,221 | 102,553 |
| 70% | 69.5% | 89,444 | 88,815 |
| 60% | 60.2% | 76,666 | 76,937 |
| 50% | 50.6% | 63,888 | 64,669 |
| 40% | 39.6% | 51,111 | 50,653 |
| 30% | 30.5% | 38,333 | 39,030 |
| 20% | 20.0% | 25,555 | 25,570 |
| 10% | 10.0% | 12,778 | 12,806 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,815 | ||
| Calibration 2 | 129,629 | ||
| Calibration 3 | 129,240 | ||
| ssj_ops@calibrated=129,435 | |||
| 100% | 99.8% | 129,435 | 129,128 |
| 90% | 90.5% | 116,491 | 117,144 |
| 80% | 80.3% | 103,548 | 103,890 |
| 70% | 69.9% | 90,604 | 90,511 |
| 60% | 60.2% | 77,661 | 77,926 |
| 50% | 50.1% | 64,717 | 64,791 |
| 40% | 40.1% | 51,774 | 51,856 |
| 30% | 30.0% | 38,830 | 38,871 |
| 20% | 19.9% | 25,887 | 25,811 |
| 10% | 10.3% | 12,943 | 13,315 |
| Active Idle | 0 | 0 | |

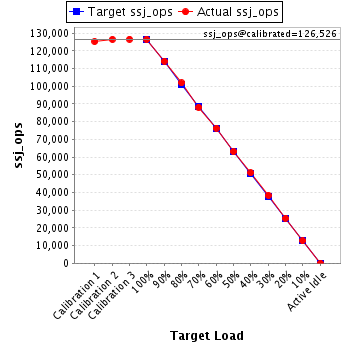

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 125,295 | ||
| Calibration 2 | 126,458 | ||
| Calibration 3 | 126,593 | ||
| ssj_ops@calibrated=126,526 | |||
| 100% | 100.0% | 126,526 | 126,509 |
| 90% | 90.2% | 113,873 | 114,187 |
| 80% | 80.5% | 101,221 | 101,858 |
| 70% | 69.6% | 88,568 | 88,106 |
| 60% | 60.4% | 75,916 | 76,371 |
| 50% | 49.9% | 63,263 | 63,159 |
| 40% | 40.4% | 50,610 | 51,054 |
| 30% | 30.3% | 37,958 | 38,344 |
| 20% | 20.1% | 25,305 | 25,471 |
| 10% | 10.1% | 12,653 | 12,749 |
| Active Idle | 0 | 0 | |
