SPECpower_ssj2008
Host '220g6-16b-32-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 515,083 ssj_ops@100% per JVM = 128,771 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 511,998 | ||
| Calibration 2 | 515,850 | ||
| Calibration 3 | 516,208 | ||
| ssj_ops@calibrated=516,029 | |||
| 100% | 99.8% | 516,029 | 515,083 |
| 90% | 90.3% | 464,426 | 465,792 |
| 80% | 80.0% | 412,823 | 412,880 |
| 70% | 69.7% | 361,220 | 359,538 |
| 60% | 59.8% | 309,617 | 308,803 |
| 50% | 49.6% | 258,015 | 256,207 |
| 40% | 40.2% | 206,412 | 207,535 |
| 30% | 30.0% | 154,809 | 154,959 |
| 20% | 20.2% | 103,206 | 104,114 |
| 10% | 10.1% | 51,603 | 52,162 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

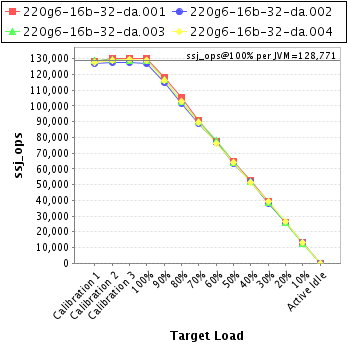

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-16b-32-da.001 | 130,096 |
| 220g6-16b-32-da.002 | 126,844 |
| 220g6-16b-32-da.003 | 129,031 |
| 220g6-16b-32-da.004 | 129,111 |
| ssj_ops@100% | 515,083 |
| ssj_ops@100% per JVM | 128,771 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,558 | ||
| Calibration 2 | 130,024 | ||
| Calibration 3 | 130,380 | ||
| ssj_ops@calibrated=130,202 | |||
| 100% | 99.9% | 130,202 | 130,096 |
| 90% | 90.7% | 117,182 | 118,094 |
| 80% | 80.9% | 104,162 | 105,343 |
| 70% | 69.7% | 91,141 | 90,744 |
| 60% | 59.4% | 78,121 | 77,338 |
| 50% | 49.8% | 65,101 | 64,834 |
| 40% | 40.2% | 52,081 | 52,309 |
| 30% | 30.1% | 39,061 | 39,146 |
| 20% | 20.0% | 26,040 | 25,976 |
| 10% | 10.1% | 13,020 | 13,122 |
| Active Idle | 0 | 0 | |

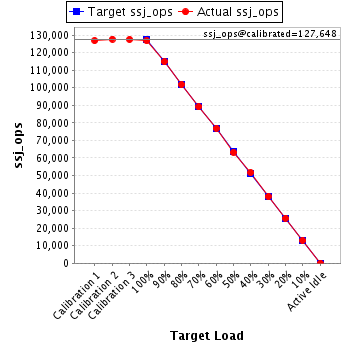

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,890 | ||
| Calibration 2 | 127,715 | ||
| Calibration 3 | 127,581 | ||
| ssj_ops@calibrated=127,648 | |||
| 100% | 99.4% | 127,648 | 126,844 |
| 90% | 90.0% | 114,883 | 114,866 |
| 80% | 79.8% | 102,118 | 101,840 |
| 70% | 69.8% | 89,354 | 89,113 |
| 60% | 60.3% | 76,589 | 76,979 |
| 50% | 49.6% | 63,824 | 63,283 |
| 40% | 40.5% | 51,059 | 51,740 |
| 30% | 29.8% | 38,294 | 38,042 |
| 20% | 20.1% | 25,530 | 25,711 |
| 10% | 10.2% | 12,765 | 13,008 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,678 | ||
| Calibration 2 | 129,278 | ||
| Calibration 3 | 129,006 | ||
| ssj_ops@calibrated=129,142 | |||
| 100% | 99.9% | 129,142 | 129,031 |
| 90% | 90.5% | 116,228 | 116,932 |
| 80% | 79.6% | 103,313 | 102,770 |
| 70% | 69.7% | 90,399 | 90,060 |
| 60% | 60.5% | 77,485 | 78,106 |
| 50% | 49.4% | 64,571 | 63,849 |
| 40% | 40.1% | 51,657 | 51,835 |
| 30% | 29.9% | 38,743 | 38,565 |
| 20% | 20.2% | 25,828 | 26,090 |
| 10% | 9.9% | 12,914 | 12,833 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,872 | ||
| Calibration 2 | 128,833 | ||
| Calibration 3 | 129,241 | ||
| ssj_ops@calibrated=129,037 | |||
| 100% | 100.1% | 129,037 | 129,111 |
| 90% | 89.8% | 116,134 | 115,901 |
| 80% | 79.8% | 103,230 | 102,928 |
| 70% | 69.5% | 90,326 | 89,621 |
| 60% | 59.2% | 77,422 | 76,381 |
| 50% | 49.8% | 64,519 | 64,240 |
| 40% | 40.0% | 51,615 | 51,651 |
| 30% | 30.4% | 38,711 | 39,205 |
| 20% | 20.4% | 25,807 | 26,338 |
| 10% | 10.2% | 12,904 | 13,199 |
| Active Idle | 0 | 0 | |
