SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3550 M2 | SPECpower_ssj2008 = 2,018 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nangang, Taipei, Taiwan | Test Date: | Oct 22, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

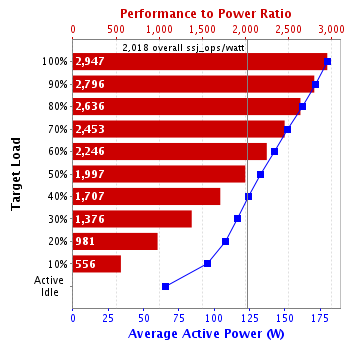

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 530,326 | 180 | 2,947 |
| 90% | 90.2% | 480,081 | 172 | 2,796 |
| 80% | 80.3% | 427,367 | 162 | 2,636 |
| 70% | 70.1% | 372,940 | 152 | 2,453 |
| 60% | 60.0% | 319,642 | 142 | 2,246 |
| 50% | 49.8% | 265,055 | 133 | 1,997 |
| 40% | 39.8% | 211,912 | 124 | 1,707 |
| 30% | 30.2% | 160,525 | 117 | 1,376 |
| 20% | 19.9% | 105,957 | 108 | 981 |
| 10% | 9.9% | 52,906 | 95.2 | 556 |
| Active Idle | 0 | 65.8 | 0 | |
| ∑ssj_ops / ∑power = | 2,018 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3550 M2 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon L5530 |
| CPU Characteristics: | Quad-Core, 2.40GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per chip |
| Tertiary Cache: | 8 MB I+D off chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600R ECC CL9; slots 3, 6, 11 and 14 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM P/N 46M1075 |
| Disk Drive: | 1 x 50GB SATA SSD, IBM Feature code 3745 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x000F,0x00F0,0x0F00,0xF000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1675 |
| JVM Maximum Heap (MB): | 1675 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 28U |
| Management Firmware Version: | YU0032D |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM NetVista |
| CPU Description: | Intel Pentium 4 2.4G |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional SP2 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9 VM(build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT210+ RS-232 |
| Serial Number: | 91H245648 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-02 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi, Inc. |
| Model: | Watchport/H USB |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 180 | 20.6 |
| 90% | 172 | 20.6 |
| 80% | 162 | 20.7 |
| 70% | 152 | 20.6 |
| 60% | 142 | 20.7 |
| 50% | 133 | 20.6 |
| 40% | 124 | 20.6 |
| 30% | 117 | 20.6 |
| 20% | 108 | 20.6 |
| 10% | 95.2 | 20.6 |
| Active Idle | 65.8 | 20.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.6 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 528,755 | ||
| Calibration 2 | 532,236 | ||
| Calibration 3 | 532,496 | ||
| ssj_ops@calibrated=532,366 | |||
| 100% | 99.6% | 532,366 | 530,326 |
| 90% | 90.2% | 479,129 | 480,081 |
| 80% | 80.3% | 425,893 | 427,367 |
| 70% | 70.1% | 372,656 | 372,940 |
| 60% | 60.0% | 319,419 | 319,642 |
| 50% | 49.8% | 266,183 | 265,055 |
| 40% | 39.8% | 212,946 | 211,912 |
| 30% | 30.2% | 159,710 | 160,525 |
| 20% | 19.9% | 106,473 | 105,957 |
| 10% | 9.9% | 53,237 | 52,906 |
| Active Idle | 0 | 0 | |
