Acer Incorporated Gateway GW1000-GW170 F1 ssj_ops@100% = 452,123
ssj_ops@100% per JVM = 113,031
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Oct 29, 2009
Hardware Availability: Dec-2009 Software Availability: Jun-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     446,623
Calibration 2     453,252
Calibration 3     453,143
ssj_ops@calibrated=453,197
100% 99.8% 453,197 452,123
90% 89.6% 407,878 406,148
80% 80.6% 362,558 365,428
70% 69.7% 317,238 315,667
60% 60.0% 271,918 271,759
50% 50.0% 226,599 226,807
40% 40.0% 181,279 181,273
30% 30.4% 135,959 137,790
20% 19.9% 90,639 90,165
10% 10.0% 45,320 45,326
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: None
# of Identical Nodes: 2
Comment: System Under Test
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW1000-GW170 F1
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D02 10/15/2009
Management Firmware Version: 0.03 10/26/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-GW1000-Sut0.001 113,370
Acer-GW1000-Sut0.002 112,341
Acer-GW1000-Sut0.003 113,660
Acer-GW1000-Sut0.004 112,751
ssj_ops@100% 452,123
ssj_ops@100% per JVM 113,031

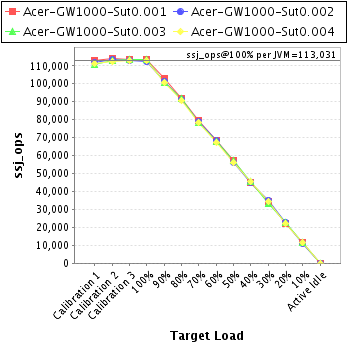

Graph of per-instance results
JVM 'Acer-GW1000-Sut0.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,853
Calibration 2     114,279
Calibration 3     113,550
ssj_ops@calibrated=113,914
100% 99.5% 113,914 113,370
90% 90.6% 102,523 103,183
80% 80.4% 91,131 91,640
70% 70.0% 79,740 79,708
60% 60.0% 68,349 68,372
50% 50.3% 56,957 57,258
40% 39.6% 45,566 45,130
30% 30.4% 34,174 34,577
20% 19.3% 22,783 21,968
10% 10.1% 11,391 11,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW1000-Sut0.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,744
Calibration 2     113,436
Calibration 3     113,102
ssj_ops@calibrated=113,269
100% 99.2% 113,269 112,341
90% 89.6% 101,942 101,526
80% 80.5% 90,615 91,194
70% 69.7% 79,288 78,918
60% 60.2% 67,961 68,162
50% 49.7% 56,634 56,293
40% 39.9% 45,308 45,210
30% 31.1% 33,981 35,206
20% 20.2% 22,654 22,920
10% 9.8% 11,327 11,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW1000-Sut0.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,700
Calibration 2     113,096
Calibration 3     113,638
ssj_ops@calibrated=113,367
100% 100.3% 113,367 113,660
90% 88.7% 102,030 100,568
80% 81.0% 90,694 91,824
70% 69.2% 79,357 78,500
60% 59.8% 68,020 67,786
50% 50.5% 56,684 57,235
40% 40.2% 45,347 45,625
30% 29.6% 34,010 33,542
20% 20.2% 22,673 22,850
10% 10.0% 11,337 11,369
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW1000-Sut0.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,326
Calibration 2     112,441
Calibration 3     112,853
ssj_ops@calibrated=112,647
100% 100.1% 112,647 112,751
90% 89.5% 101,382 100,872
80% 80.6% 90,118 90,770
70% 69.7% 78,853 78,542
60% 59.9% 67,588 67,438
50% 49.7% 56,324 56,021
40% 40.2% 45,059 45,308
30% 30.6% 33,794 34,465
20% 19.9% 22,529 22,427
10% 10.1% 11,265 11,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
