IBM Corporation IBM System x3400 M2 | SPECpower_ssj2008 = 1,865 overall ssj_ops/watt | ||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Oct 20, 2009 |
Hardware Availability: | Dec-2009 | Software Availability: | May-2009 | Publication: | Dec 2, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

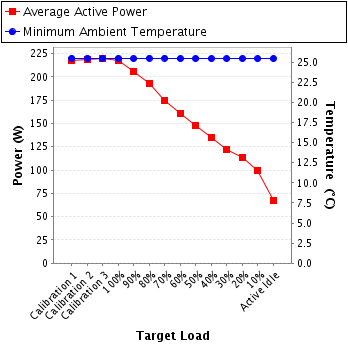

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 218 | 25.5 |
Calibration 2 | 218 | 25.5 |
Calibration 3 | 220 | 25.5 |
100% | 218 | 25.5 |
90% | 206 | 25.4 |
80% | 193 | 25.5 |
70% | 175 | 25.5 |
60% | 160 | 25.4 |
50% | 148 | 25.4 |
40% | 134 | 25.4 |
30% | 122 | 25.4 |
20% | 114 | 25.4 |
10% | 100.0 | 25.4 |
Active Idle | 67.0 | 25.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H245650 |
Connectivity: | RS-232 |
Input Connection: | Default |
Calibration Institute: | NML/ROC |
Accredited by: | ETC, Taiwan |
Calibration Label: | 09-04-BAC-150-01 |
Date of Calibration: | 13-Apr-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.8-76a9e72a |
Setup Description: | Unknown |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International, Inc. |
Model: | Watchport/H |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | Unknown |

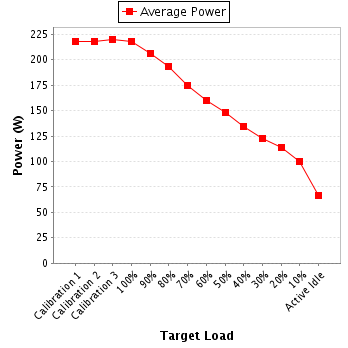

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 1.14 | 2.0 | 0.913 | 218 | 0.5% |
Calibration 2 | 211 | 300.0 | 1.14 | 2.0 | 0.913 | 218 | 0.5% |
Calibration 3 | 210 | 300.0 | 1.15 | 2.0 | 0.914 | 220 | 0.5% |
100% | 210 | 300.0 | 1.14 | 2.0 | 0.913 | 218 | 0.5% |
90% | 210 | 300.0 | 1.08 | 2.0 | 0.908 | 206 | 0.5% |
80% | 211 | 300.0 | 1.02 | 2.0 | 0.901 | 193 | 0.5% |
70% | 211 | 300.0 | 0.935 | 1.0 | 0.889 | 175 | 0.4% |
60% | 211 | 300.0 | 0.866 | 1.0 | 0.879 | 160 | 0.4% |
50% | 211 | 300.0 | 0.806 | 1.0 | 0.870 | 148 | 0.4% |
40% | 211 | 300.0 | 0.741 | 1.0 | 0.858 | 134 | 0.4% |
30% | 210 | 300.0 | 0.686 | 1.0 | 0.850 | 122 | 0.5% |
20% | 209 | 300.0 | 0.647 | 1.0 | 0.840 | 114 | 0.5% |
10% | 209 | 300.0 | 0.586 | 1.0 | 0.815 | 100.0 | 0.5% |
Active Idle | 209 | 300.0 | 0.424 | 0.5 | 0.756 | 67.0 | 0.5% |
