Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 450,674
ssj_ops@100% per JVM = 112,669
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Nov 2, 2009
Hardware Availability: Jan-2010 Software Availability: Jun-2009 Publication: Dec 30, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     448,494
Calibration 2     451,109
Calibration 3     452,243
ssj_ops@calibrated=451,676
100% 99.8% 451,676 450,674
90% 90.0% 406,509 406,679
80% 79.8% 361,341 360,302
70% 69.8% 316,173 315,206
60% 60.2% 271,006 271,923
50% 50.0% 225,838 226,018
40% 39.9% 180,671 180,205
30% 30.1% 135,503 135,854
20% 20.1% 90,335 91,002
10% 10.0% 45,168 44,961
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: None
# of Identical Nodes: 4
Comment: System Under Test
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D02 10/15/2009
Management Firmware Version: 0.03 10/26/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-GW2000h-1.001 112,968
Acer-GW2000h-1.002 111,426
Acer-GW2000h-1.003 112,097
Acer-GW2000h-1.004 114,183
ssj_ops@100% 450,674
ssj_ops@100% per JVM 112,669

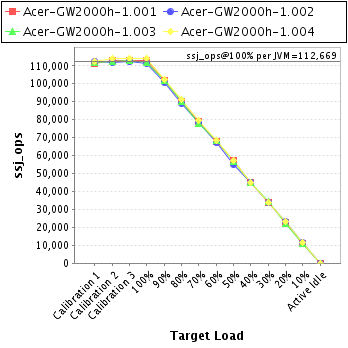

Graph of per-instance results
JVM 'Acer-GW2000h-1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,379
Calibration 2     113,196
Calibration 3     112,935
ssj_ops@calibrated=113,065
100% 99.9% 113,065 112,968
90% 90.0% 101,759 101,728
80% 79.8% 90,452 90,216
70% 70.0% 79,146 79,186
60% 60.0% 67,839 67,880
50% 50.4% 56,533 57,008
40% 40.0% 45,226 45,265
30% 30.1% 33,920 34,037
20% 19.9% 22,613 22,468
10% 9.6% 11,307 10,846
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,621
Calibration 2     111,789
Calibration 3     112,143
ssj_ops@calibrated=111,966
100% 99.5% 111,966 111,426
90% 90.1% 100,770 100,829
80% 79.6% 89,573 89,109
70% 70.1% 78,376 78,498
60% 60.0% 67,180 67,162
50% 49.1% 55,983 54,989
40% 40.4% 44,786 45,276
30% 30.1% 33,590 33,667
20% 20.6% 22,393 23,117
10% 10.2% 11,197 11,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,843
Calibration 2     112,315
Calibration 3     112,902
ssj_ops@calibrated=112,609
100% 99.5% 112,609 112,097
90% 90.3% 101,348 101,686
80% 79.8% 90,087 89,878
70% 69.3% 78,826 78,006
60% 60.6% 67,565 68,229
50% 50.5% 56,304 56,902
40% 39.9% 45,043 44,930
30% 30.4% 33,783 34,256
20% 19.8% 22,522 22,352
10% 9.9% 11,261 11,122
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,651
Calibration 2     113,809
Calibration 3     114,264
ssj_ops@calibrated=114,036
100% 100.1% 114,036 114,183
90% 89.8% 102,633 102,436
80% 79.9% 91,229 91,099
70% 69.7% 79,825 79,517
60% 60.2% 68,422 68,652
50% 50.1% 57,018 57,119
40% 39.2% 45,615 44,735
30% 29.7% 34,211 33,894
20% 20.2% 22,807 23,065
10% 10.1% 11,404 11,519
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
