Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 451,205
ssj_ops@100% per JVM = 112,801
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Nov 2, 2009
Hardware Availability: Jan-2010 Software Availability: Jun-2009 Publication: Dec 30, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     449,455
Calibration 2     453,169
Calibration 3     454,108
ssj_ops@calibrated=453,639
100% 99.5% 453,639 451,205
90% 90.7% 408,275 411,488
80% 79.8% 362,911 362,114
70% 70.2% 317,547 318,283
60% 59.9% 272,183 271,612
50% 50.2% 226,819 227,597
40% 40.1% 181,455 181,964
30% 29.9% 136,092 135,484
20% 19.9% 90,728 90,449
10% 9.9% 45,364 44,715
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: None
# of Identical Nodes: 4
Comment: System Under Test
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D02 10/15/2009
Management Firmware Version: 0.03 10/26/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-GW2000h-2.001 112,161
Acer-GW2000h-2.002 114,144
Acer-GW2000h-2.003 111,583
Acer-GW2000h-2.004 113,318
ssj_ops@100% 451,205
ssj_ops@100% per JVM 112,801

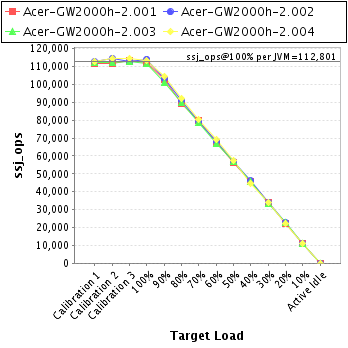

Graph of per-instance results
JVM 'Acer-GW2000h-2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,924
Calibration 2     111,626
Calibration 3     113,554
ssj_ops@calibrated=112,590
100% 99.6% 112,590 112,161
90% 91.1% 101,331 102,545
80% 79.5% 90,072 89,534
70% 70.9% 78,813 79,806
60% 60.1% 67,554 67,627
50% 50.2% 56,295 56,576
40% 40.5% 45,036 45,620
30% 30.1% 33,777 33,902
20% 19.9% 22,518 22,422
10% 9.9% 11,259 11,199
Active Idle   0 0

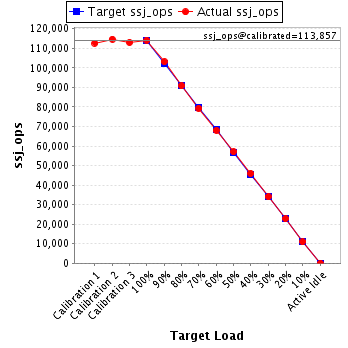

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,704
Calibration 2     114,667
Calibration 3     113,047
ssj_ops@calibrated=113,857
100% 100.3% 113,857 114,144
90% 90.6% 102,471 103,126
80% 79.7% 91,086 90,740
70% 69.7% 79,700 79,313
60% 59.7% 68,314 68,016
50% 50.1% 56,929 56,990
40% 40.4% 45,543 46,026
30% 29.9% 34,157 34,017
20% 20.0% 22,771 22,766
10% 9.6% 11,386 10,965
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,292
Calibration 2     112,494
Calibration 3     113,040
ssj_ops@calibrated=112,767
100% 98.9% 112,767 111,583
90% 89.8% 101,491 101,281
80% 79.5% 90,214 89,673
70% 69.9% 78,937 78,774
60% 59.4% 67,660 67,003
50% 50.3% 56,384 56,770
40% 40.3% 45,107 45,497
30% 29.7% 33,830 33,487
20% 20.2% 22,553 22,808
10% 10.0% 11,277 11,260
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,536
Calibration 2     114,382
Calibration 3     114,466
ssj_ops@calibrated=114,424
100% 99.0% 114,424 113,318
90% 91.4% 102,982 104,536
80% 80.5% 91,539 92,168
70% 70.3% 80,097 80,389
60% 60.3% 68,654 68,966
50% 50.0% 57,212 57,260
40% 39.2% 45,770 44,822
30% 29.8% 34,327 34,079
20% 19.6% 22,885 22,453
10% 9.9% 11,442 11,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
