Acer Incorporated Gateway GW2000h-GW170h F1 ssj_ops@100% = 450,516
ssj_ops@100% per JVM = 112,629
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Nov 2, 2009
Hardware Availability: Jan-2010 Software Availability: Jun-2009 Publication: Dec 30, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     446,645
Calibration 2     453,472
Calibration 3     453,215
ssj_ops@calibrated=453,343
100% 99.4% 453,343 450,516
90% 90.0% 408,009 408,205
80% 79.8% 362,675 361,989
70% 70.5% 317,340 319,736
60% 60.4% 272,006 273,738
50% 49.8% 226,672 225,931
40% 39.7% 181,337 179,864
30% 29.9% 136,003 135,687
20% 20.1% 90,669 91,124
10% 9.9% 45,334 44,839
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: None
# of Identical Nodes: 4
Comment: System Under Test
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D02 10/15/2009
Management Firmware Version: 0.03 10/26/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-GW2000h-4.001 112,109
Acer-GW2000h-4.002 112,760
Acer-GW2000h-4.003 113,543
Acer-GW2000h-4.004 112,104
ssj_ops@100% 450,516
ssj_ops@100% per JVM 112,629

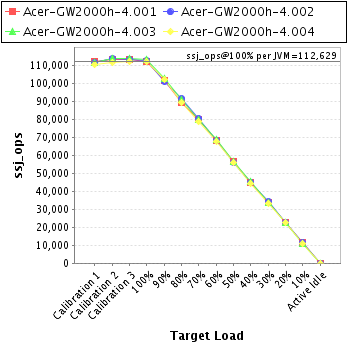

Graph of per-instance results
JVM 'Acer-GW2000h-4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,402
Calibration 2     113,409
Calibration 3     113,253
ssj_ops@calibrated=113,331
100% 98.9% 113,331 112,109
90% 89.9% 101,998 101,917
80% 79.2% 90,665 89,741
70% 70.8% 79,332 80,287
60% 60.2% 67,999 68,243
50% 50.1% 56,666 56,780
40% 39.5% 45,332 44,822
30% 29.9% 33,999 33,911
20% 20.0% 22,666 22,713
10% 10.1% 11,333 11,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,716
Calibration 2     113,882
Calibration 3     113,552
ssj_ops@calibrated=113,717
100% 99.2% 113,717 112,760
90% 89.1% 102,346 101,330
80% 80.7% 90,974 91,753
70% 70.9% 79,602 80,632
60% 60.2% 68,230 68,434
50% 49.5% 56,859 56,279
40% 39.7% 45,487 45,145
30% 30.1% 34,115 34,266
20% 20.1% 22,743 22,843
10% 10.0% 11,372 11,423
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,935
Calibration 2     114,200
Calibration 3     113,838
ssj_ops@calibrated=114,019
100% 99.6% 114,019 113,543
90% 90.0% 102,617 102,615
80% 79.9% 91,215 91,080
70% 70.2% 79,813 80,027
60% 60.5% 68,411 69,025
50% 49.9% 57,009 56,853
40% 40.0% 45,608 45,596
30% 29.8% 34,206 34,019
20% 20.0% 22,804 22,805
10% 9.8% 11,402 11,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW2000h-4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,592
Calibration 2     111,980
Calibration 3     112,572
ssj_ops@calibrated=112,276
100% 99.8% 112,276 112,104
90% 91.2% 101,048 102,344
80% 79.6% 89,821 89,416
70% 70.2% 78,593 78,789
60% 60.6% 67,366 68,036
50% 49.9% 56,138 56,019
40% 39.5% 44,910 44,302
30% 29.8% 33,683 33,490
20% 20.3% 22,455 22,764
10% 9.6% 11,228 10,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
