NEC Corporation Express5800/iR120a-1E ssj_ops@100% = 454,560
ssj_ops@100% per JVM = 56,820
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Oct 28, 2009
Hardware Availability: Dec-2009 Software Availability: May-2009 Publication: Dec 30, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     446,803
Calibration 2     457,880
Calibration 3     458,967
ssj_ops@calibrated=458,424
100% 99.2% 458,424 454,560
90% 89.8% 412,581 411,835
80% 79.9% 366,739 366,188
70% 69.9% 320,897 320,440
60% 60.1% 275,054 275,288
50% 50.4% 229,212 230,898
40% 40.1% 183,370 183,686
30% 29.7% 137,527 136,244
20% 20.0% 91,685 91,889
10% 9.9% 45,842 45,587
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/iR120a-1E (Intel Xeon L5520, 2.26 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/iR120a-1E
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx4 PC3-10600E ECC CL7; slots CPU1_DIMM1, CPU1_DIMM2, CPU2_DIMM1, and CPU2_DIMM2 populated
Power Supply Quantity and Rating (W): 1 x 360
Power Supply Details: Delta TDPS-360AB E
Disk Drive: 1 x 50GB SSD SATA, NEC P/N:N8150-702
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82567 Gigabit Ethernet Controller, 1 x Integrated Intel 82574L Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64)
JVM Command-line Options: -Xms795m -Xmx795m -Xns720m -XXaggressive -Xlargepages:exitOnFailure=true -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000]
JVM Instances: 8
JVM Initial Heap (MB): 795
JVM Maximum Heap (MB): 795
JVM Address Bits: 64
Boot Firmware Version: 1.0.0007
Management Firmware Version: 01.05
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
ECO.001 56,832
ECO.002 56,064
ECO.003 57,032
ECO.004 57,022
ECO.005 57,530
ECO.006 57,027
ECO.007 56,303
ECO.008 56,750
ssj_ops@100% 454,560
ssj_ops@100% per JVM 56,820

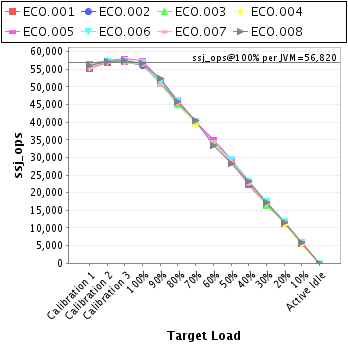

Graph of per-instance results
JVM 'ECO.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,356
Calibration 2     56,880
Calibration 3     57,116
ssj_ops@calibrated=56,998
100% 99.7% 56,998 56,832
90% 90.0% 51,298 51,319
80% 79.9% 45,598 45,532
70% 70.0% 39,899 39,894
60% 61.2% 34,199 34,870
50% 50.4% 28,499 28,707
40% 39.1% 22,799 22,266
30% 29.2% 17,099 16,643
20% 19.7% 11,400 11,225
10% 9.8% 5,700 5,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

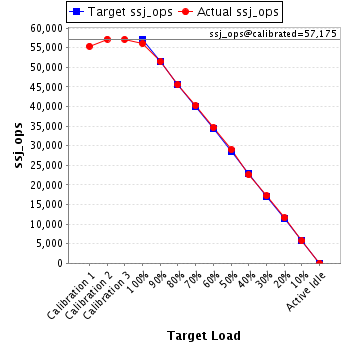

JVM 'ECO.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,403
Calibration 2     57,201
Calibration 3     57,149
ssj_ops@calibrated=57,175
100% 98.1% 57,175 56,064
90% 90.1% 51,458 51,503
80% 79.7% 45,740 45,554
70% 70.4% 40,023 40,233
60% 60.6% 34,305 34,633
50% 50.7% 28,588 29,016
40% 39.5% 22,870 22,587
30% 30.1% 17,153 17,191
20% 20.3% 11,435 11,615
10% 10.0% 5,718 5,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ECO.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,056
Calibration 2     57,471
Calibration 3     57,409
ssj_ops@calibrated=57,440
100% 99.3% 57,440 57,032
90% 88.7% 51,696 50,944
80% 78.3% 45,952 44,968
70% 69.3% 40,208 39,832
60% 60.0% 34,464 34,481
50% 49.6% 28,720 28,506
40% 40.5% 22,976 23,237
30% 28.6% 17,232 16,445
20% 20.0% 11,488 11,483
10% 10.1% 5,744 5,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ECO.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,624
Calibration 2     57,187
Calibration 3     57,424
ssj_ops@calibrated=57,305
100% 99.5% 57,305 57,022
90% 90.3% 51,575 51,755
80% 80.6% 45,844 46,213
70% 68.9% 40,114 39,478
60% 60.3% 34,383 34,548
50% 50.4% 28,653 28,862
40% 40.0% 22,922 22,907
30% 29.9% 17,192 17,108
20% 19.3% 11,461 11,043
10% 9.4% 5,731 5,402
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ECO.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,784
Calibration 2     57,586
Calibration 3     58,158
ssj_ops@calibrated=57,872
100% 99.4% 57,872 57,530
90% 89.6% 52,085 51,853
80% 80.5% 46,298 46,582
70% 69.6% 40,510 40,258
60% 60.5% 34,723 35,033
50% 50.8% 28,936 29,406
40% 40.8% 23,149 23,587
30% 29.6% 17,362 17,146
20% 20.3% 11,574 11,721
10% 9.9% 5,787 5,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ECO.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,063
Calibration 2     57,238
Calibration 3     57,398
ssj_ops@calibrated=57,318
100% 99.5% 57,318 57,027
90% 89.8% 51,586 51,476
80% 80.4% 45,854 46,107
70% 70.0% 40,123 40,094
60% 59.5% 34,391 34,088
50% 51.3% 28,659 29,385
40% 40.5% 22,927 23,241
30% 30.6% 17,195 17,546
20% 20.4% 11,464 11,704
10% 10.2% 5,732 5,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

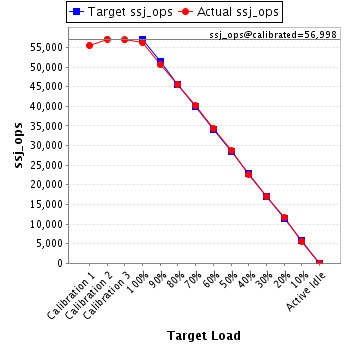

JVM 'ECO.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     55,472
Calibration 2     57,100
Calibration 3     56,896
ssj_ops@calibrated=56,998
100% 98.8% 56,998 56,303
90% 88.8% 51,298 50,593
80% 79.8% 45,598 45,490
70% 70.3% 39,898 40,088
60% 60.2% 34,199 34,338
50% 50.3% 28,499 28,646
40% 39.7% 22,799 22,608
30% 29.8% 17,099 16,958
20% 20.4% 11,400 11,626
10% 9.9% 5,700 5,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

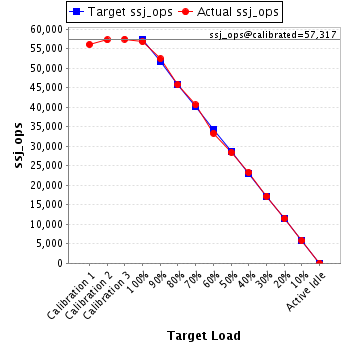

JVM 'ECO.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     56,046
Calibration 2     57,219
Calibration 3     57,416
ssj_ops@calibrated=57,317
100% 99.0% 57,317 56,750
90% 91.4% 51,585 52,391
80% 79.8% 45,854 45,742
70% 70.8% 40,122 40,561
60% 58.1% 34,390 33,296
50% 49.5% 28,659 28,371
40% 40.6% 22,927 23,253
30% 30.0% 17,195 17,206
20% 20.0% 11,463 11,473
10% 10.1% 5,732 5,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
