Fujitsu PRIMERGY TX150 S7 (Intel Xeon X3470) SPECpower_ssj2008 = 2,187 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 11, 2010
Hardware Availability: Jan-2010 Software Availability: May-2009 Publication: Feb 2, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 111 20.9
Calibration 2 112 20.9
Calibration 3 113 20.9
Calibration 4 113 20.9
Calibration 5 113 20.9
100% 112 20.9
90% 97.6 20.9
80% 84.6 20.9
70% 73.6 20.9
60% 65.5 20.9
50% 58.7 20.9
40% 53.2 20.9
30% 48.2 20.9
20% 42.8 20.9
10% 36.5 21.0
Active Idle 24.3 21.0
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91HA48097
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09116242
Date of Calibration: 20-Nov-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.9-49c8760c
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 300.0 0.536 1.0 0.898 111 0.5%
Calibration 2 231 300.0 0.542 1.0 0.899 112 0.5%
Calibration 3 230 300.0 0.544 1.0 0.900 113 0.5%
Calibration 4 230 300.0 0.543 1.0 0.900 113 0.5%
Calibration 5 231 300.0 0.544 1.0 0.900 113 0.5%
100% 231 300.0 0.541 1.0 0.900 112 0.5%
90% 231 300.0 0.480 0.5 0.885 97.6 0.4%
80% 230 300.0 0.423 0.5 0.872 84.6 0.4%
70% 231 300.0 0.372 0.5 0.859 73.6 0.4%
60% 230 300.0 0.336 0.5 0.847 65.5 0.5%
50% 230 300.0 0.306 0.5 0.834 58.7 0.5%
40% 230 300.0 0.281 0.5 0.821 53.2 0.5%
30% 231 300.0 0.259 0.5 0.807 48.2 0.6%
20% 230 300.0 0.236 0.5 0.787 42.8 0.6%
10% 231 300.0 0.209 0.5 0.756 36.5 0.7%
Active Idle 231 300.0 0.155 0.5 0.680 24.3 0.9%

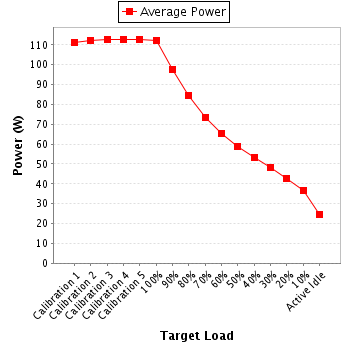

Power details for pwr1
