Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 19,935,560
ssj_ops@100% per Host = 524,620
ssj_ops@100% per JVM = 131,155
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,078,120
Calibration 2     20,110,012
Calibration 3     20,028,069
ssj_ops@calibrated=20,069,040
100% 99.3% 20,069,040 19,935,560
90% 90.0% 18,062,136 18,067,787
80% 80.0% 16,055,232 16,058,381
70% 70.0% 14,048,328 14,050,984
60% 60.0% 12,041,424 12,042,621
50% 50.0% 10,034,520 10,034,224
40% 40.0% 8,027,616 8,023,246
30% 30.0% 6,020,712 6,021,596
20% 20.0% 4,013,808 4,011,503
10% 10.0% 2,006,904 2,006,467
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
38 76 304 608 304 38 152
System Under Test
Shared Hardware
Shared Hardware
Enclosure: PRIMERGY CX1000 S1
Form Factor: 43U
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Network Switch: Brocade FastIron FCX648F
Network Switch Details: 48-port 1GbE LAN Switch
KVM Switch: None
KVM Switch Details: None
Other Hardware: Shared enclosure is a 38U Rack with a 5U cooling unit on top.
Comment: The network switch is a standalone device and is not included in the measured power.
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware per Node
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
Node-1 531,352
Node-10 517,318
Node-11 530,164
Node-12 524,738
Node-13 518,144
Node-14 527,478
Node-15 518,125
Node-16 529,473
Node-17 531,352
Node-18 519,584
Node-19 529,736
Node-2 522,034
Node-20 515,500
Node-21 522,898
Node-22 527,488
Node-23 521,967
Node-24 522,034
Node-25 518,940
Node-26 522,126
Node-27 530,783
Node-28 516,965
Node-29 529,726
Node-3 527,571
Node-30 524,669
Node-31 527,571
Node-32 523,776
Node-33 526,180
Node-34 534,839
Node-35 517,626
Node-36 525,522
Node-37 513,152
Node-38 520,547
Node-4 527,298
Node-5 526,996
Node-6 531,859
Node-7 523,429
Node-8 530,791
Node-9 525,807
ssj_ops@100% 19,935,560
ssj_ops@100% per Host 524,620
ssj_ops@100% per JVM 131,155
Graph of per-host results
Host 'Node-1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,487
Calibration 2     533,191
Calibration 3     533,087
ssj_ops@calibrated=533,139
100% 99.7% 533,139 531,352
90% 89.9% 479,825 479,508
80% 79.9% 426,511 425,767
70% 69.8% 373,197 372,314
60% 60.2% 319,884 320,934
50% 49.9% 266,570 265,836
40% 39.8% 213,256 212,155
30% 29.9% 159,942 159,536
20% 20.2% 106,628 107,826
10% 10.0% 53,314 53,144
Active Idle   0 0
Graph of results
Host 'Node-10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     532,409
Calibration 2     534,856
Calibration 3     519,762
ssj_ops@calibrated=527,309
100% 98.1% 527,309 517,318
90% 90.4% 474,578 476,628
80% 80.0% 421,847 421,893
70% 70.3% 369,116 370,775
60% 60.1% 316,385 316,706
50% 50.0% 263,655 263,792
40% 39.8% 210,924 209,885
30% 30.1% 158,193 158,767
20% 19.9% 105,462 104,736
10% 10.0% 52,731 52,668
Active Idle   0 0

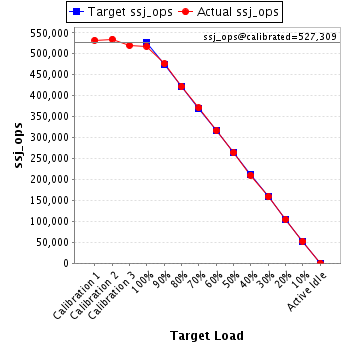

Graph of results
Host 'Node-11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,966
Calibration 2     530,675
Calibration 3     531,751
ssj_ops@calibrated=531,213
100% 99.8% 531,213 530,164
90% 89.7% 478,092 476,646
80% 80.1% 424,971 425,590
70% 70.1% 371,849 372,474
60% 59.6% 318,728 316,466
50% 49.9% 265,607 264,977
40% 40.1% 212,485 212,855
30% 30.0% 159,364 159,524
20% 19.9% 106,243 105,854
10% 10.1% 53,121 53,731
Active Idle   0 0
Graph of results
Host 'Node-12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,293
Calibration 2     530,246
Calibration 3     526,392
ssj_ops@calibrated=528,319
100% 99.3% 528,319 524,738
90% 89.8% 475,487 474,251
80% 80.2% 422,655 423,582
70% 70.0% 369,823 369,890
60% 60.0% 316,991 317,145
50% 49.9% 264,160 263,813
40% 40.2% 211,328 212,387
30% 29.9% 158,496 158,086
20% 19.9% 105,664 105,007
10% 10.0% 52,832 53,018
Active Idle   0 0
Graph of results
Host 'Node-13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     526,931
Calibration 2     525,819
Calibration 3     522,662
ssj_ops@calibrated=524,241
100% 98.8% 524,241 518,144
90% 90.2% 471,817 473,060
80% 79.9% 419,392 418,700
70% 70.1% 366,968 367,711
60% 60.0% 314,544 314,611
50% 50.5% 262,120 264,891
40% 40.0% 209,696 209,665
30% 30.3% 157,272 158,843
20% 20.0% 104,848 104,686
10% 10.0% 52,424 52,407
Active Idle   0 0
Graph of results
Host 'Node-14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,596
Calibration 2     532,365
Calibration 3     529,998
ssj_ops@calibrated=531,181
100% 99.3% 531,181 527,478
90% 89.8% 478,063 476,987
80% 79.8% 424,945 424,132
70% 70.0% 371,827 372,018
60% 60.0% 318,709 318,940
50% 49.5% 265,591 263,001
40% 39.8% 212,472 211,330
30% 29.9% 159,354 158,951
20% 19.9% 106,236 105,893
10% 10.2% 53,118 54,347
Active Idle   0 0
Graph of results
Host 'Node-15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,389
Calibration 2     525,873
Calibration 3     520,650
ssj_ops@calibrated=523,262
100% 99.0% 523,262 518,125
90% 89.9% 470,935 470,188
80% 79.8% 418,609 417,320
70% 69.5% 366,283 363,592
60% 60.3% 313,957 315,785
50% 50.4% 261,631 263,959
40% 39.8% 209,305 208,445
30% 30.2% 156,978 158,128
20% 20.0% 104,652 104,721
10% 10.1% 52,326 52,706
Active Idle   0 0
Graph of results
Host 'Node-16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,105
Calibration 2     531,705
Calibration 3     532,173
ssj_ops@calibrated=531,939
100% 99.5% 531,939 529,473
90% 90.0% 478,745 478,946
80% 80.1% 425,551 426,017
70% 69.8% 372,357 371,462
60% 60.0% 319,163 319,329
50% 49.7% 265,969 264,430
40% 40.2% 212,776 213,677
30% 30.1% 159,582 160,156
20% 19.7% 106,388 105,004
10% 10.1% 53,194 53,730
Active Idle   0 0
Graph of results
Host 'Node-17' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,487
Calibration 2     533,191
Calibration 3     533,087
ssj_ops@calibrated=533,139
100% 99.7% 533,139 531,352
90% 89.9% 479,825 479,508
80% 79.9% 426,511 425,767
70% 69.8% 373,197 372,314
60% 60.2% 319,884 320,934
50% 49.9% 266,570 265,836
40% 39.8% 213,256 212,155
30% 29.9% 159,942 159,536
20% 20.2% 106,628 107,826
10% 10.0% 53,314 53,144
Active Idle   0 0
Graph of results
Host 'Node-18' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     528,174
Calibration 2     530,325
Calibration 3     523,005
ssj_ops@calibrated=526,665
100% 98.7% 526,665 519,584
90% 90.0% 473,999 474,229
80% 80.1% 421,332 421,666
70% 69.9% 368,666 368,305
60% 60.2% 315,999 317,140
50% 50.0% 263,333 263,322
40% 40.2% 210,666 211,732
30% 29.9% 158,000 157,516
20% 19.9% 105,333 104,797
10% 10.0% 52,667 52,727
Active Idle   0 0
Graph of results
Host 'Node-19' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,065
Calibration 2     531,057
Calibration 3     531,886
ssj_ops@calibrated=531,472
100% 99.7% 531,472 529,736
90% 90.1% 478,325 478,920
80% 80.0% 425,177 424,917
70% 70.1% 372,030 372,362
60% 59.8% 318,883 317,897
50% 49.9% 265,736 265,287
40% 39.9% 212,589 212,310
30% 29.8% 159,442 158,557
20% 20.0% 106,294 106,194
10% 10.0% 53,147 53,072
Active Idle   0 0
Graph of results
Host 'Node-2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     524,577
Calibration 2     526,898
Calibration 3     526,432
ssj_ops@calibrated=526,665
100% 99.1% 526,665 522,034
90% 90.2% 473,999 475,171
80% 80.1% 421,332 421,895
70% 70.2% 368,666 369,574
60% 60.0% 315,999 315,812
50% 49.8% 263,333 262,536
40% 40.2% 210,666 211,802
30% 30.2% 158,000 158,834
20% 20.1% 105,333 105,731
10% 10.1% 52,667 53,068
Active Idle   0 0
Graph of results
Host 'Node-20' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     522,765
Calibration 2     521,279
Calibration 3     517,594
ssj_ops@calibrated=519,437
100% 99.2% 519,437 515,500
90% 89.9% 467,493 467,208
80% 79.8% 415,549 414,715
70% 70.1% 363,606 363,939
60% 60.0% 311,662 311,533
50% 49.8% 259,718 258,509
40% 40.2% 207,775 208,900
30% 30.0% 155,831 155,762
20% 20.0% 103,887 103,950
10% 9.9% 51,944 51,309
Active Idle   0 0
Graph of results
Host 'Node-21' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,214
Calibration 2     526,627
Calibration 3     526,972
ssj_ops@calibrated=526,799
100% 99.3% 526,799 522,898
90% 89.6% 474,119 471,753
80% 80.2% 421,439 422,335
70% 70.3% 368,759 370,407
60% 60.0% 316,079 316,196
50% 49.8% 263,400 262,311
40% 40.1% 210,720 211,258
30% 30.3% 158,040 159,524
20% 20.1% 105,360 105,756
10% 9.9% 52,680 52,009
Active Idle   0 0
Graph of results
Host 'Node-22' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     532,063
Calibration 2     529,565
Calibration 3     530,043
ssj_ops@calibrated=529,804
100% 99.6% 529,804 527,488
90% 90.0% 476,823 476,843
80% 80.3% 423,843 425,296
70% 70.6% 370,863 374,244
60% 59.9% 317,882 317,543
50% 50.4% 264,902 266,854
40% 40.2% 211,921 212,756
30% 29.8% 158,941 157,910
20% 19.9% 105,961 105,224
10% 9.9% 52,980 52,550
Active Idle   0 0
Graph of results
Host 'Node-23' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     526,081
Calibration 2     525,622
Calibration 3     526,656
ssj_ops@calibrated=526,139
100% 99.2% 526,139 521,967
90% 90.0% 473,525 473,615
80% 79.8% 420,911 420,006
70% 70.0% 368,297 368,206
60% 60.4% 315,683 317,605
50% 50.4% 263,070 265,363
40% 40.0% 210,456 210,420
30% 30.1% 157,842 158,620
20% 20.0% 105,228 105,200
10% 9.9% 52,614 52,196
Active Idle   0 0
Graph of results
Host 'Node-24' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     524,577
Calibration 2     526,898
Calibration 3     526,432
ssj_ops@calibrated=526,665
100% 99.1% 526,665 522,034
90% 90.2% 473,999 475,171
80% 80.1% 421,332 421,895
70% 70.2% 368,666 369,574
60% 60.0% 315,999 315,812
50% 49.8% 263,333 262,536
40% 40.2% 210,666 211,802
30% 30.2% 158,000 158,834
20% 20.1% 105,333 105,731
10% 10.1% 52,667 53,068
Active Idle   0 0
Graph of results
Host 'Node-25' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     528,233
Calibration 2     525,951
Calibration 3     519,869
ssj_ops@calibrated=522,910
100% 99.2% 522,910 518,940
90% 89.9% 470,619 470,033
80% 80.0% 418,328 418,332
70% 70.1% 366,037 366,733
60% 60.2% 313,746 314,690
50% 50.2% 261,455 262,734
40% 40.2% 209,164 209,965
30% 30.0% 156,873 156,674
20% 19.9% 104,582 104,297
10% 9.9% 52,291 51,865
Active Idle   0 0
Graph of results
Host 'Node-26' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     525,644
Calibration 2     526,772
Calibration 3     527,542
ssj_ops@calibrated=527,157
100% 99.0% 527,157 522,126
90% 89.7% 474,441 472,946
80% 80.2% 421,726 422,738
70% 70.0% 369,010 369,070
60% 60.2% 316,294 317,540
50% 50.2% 263,578 264,663
40% 39.7% 210,863 209,534
30% 29.8% 158,147 157,124
20% 20.1% 105,431 105,834
10% 10.0% 52,716 52,793
Active Idle   0 0
Graph of results
Host 'Node-27' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     528,683
Calibration 2     532,081
Calibration 3     531,330
ssj_ops@calibrated=531,706
100% 99.8% 531,706 530,783
90% 90.1% 478,535 478,947
80% 79.8% 425,365 424,044
70% 69.8% 372,194 371,065
60% 60.2% 319,024 319,840
50% 49.8% 265,853 264,537
40% 40.0% 212,682 212,826
30% 29.9% 159,512 159,194
20% 20.0% 106,341 106,102
10% 10.0% 53,171 53,370
Active Idle   0 0
Graph of results
Host 'Node-28' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     525,630
Calibration 2     524,437
Calibration 3     519,544
ssj_ops@calibrated=521,991
100% 99.0% 521,991 516,965
90% 89.7% 469,792 468,262
80% 80.1% 417,592 417,859
70% 70.0% 365,393 365,168
60% 60.0% 313,194 313,301
50% 49.6% 260,995 258,772
40% 40.2% 208,796 209,750
30% 29.8% 156,597 155,413
20% 19.9% 104,398 103,927
10% 10.0% 52,199 52,321
Active Idle   0 0
Graph of results
Host 'Node-29' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     528,904
Calibration 2     532,533
Calibration 3     532,020
ssj_ops@calibrated=532,276
100% 99.5% 532,276 529,726
90% 90.0% 479,049 479,218
80% 79.8% 425,821 424,822
70% 69.5% 372,594 369,723
60% 59.9% 319,366 318,622
50% 50.0% 266,138 266,250
40% 40.2% 212,911 213,832
30% 30.0% 159,683 159,766
20% 20.0% 106,455 106,345
10% 9.9% 53,228 52,711
Active Idle   0 0
Graph of results
Host 'Node-3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     532,093
Calibration 2     533,561
Calibration 3     530,165
ssj_ops@calibrated=531,863
100% 99.2% 531,863 527,571
90% 90.6% 478,677 481,639
80% 79.8% 425,490 424,611
70% 69.7% 372,304 370,926
60% 59.3% 319,118 315,313
50% 50.1% 265,931 266,536
40% 39.7% 212,745 211,353
30% 29.8% 159,559 158,598
20% 19.9% 106,373 105,890
10% 10.0% 53,186 53,017
Active Idle   0 0
Graph of results
Host 'Node-30' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     528,592
Calibration 2     526,689
Calibration 3     526,985
ssj_ops@calibrated=526,837
100% 99.6% 526,837 524,669
90% 90.1% 474,153 474,828
80% 79.9% 421,470 421,061
70% 69.8% 368,786 367,961
60% 59.9% 316,102 315,394
50% 49.8% 263,418 262,597
40% 40.1% 210,735 211,082
30% 29.9% 158,051 157,440
20% 20.0% 105,367 105,475
10% 9.9% 52,684 52,278
Active Idle   0 0
Graph of results
Host 'Node-31' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     532,093
Calibration 2     533,561
Calibration 3     530,165
ssj_ops@calibrated=531,863
100% 99.2% 531,863 527,571
90% 90.6% 478,677 481,639
80% 79.8% 425,490 424,611
70% 69.7% 372,304 370,926
60% 59.3% 319,118 315,313
50% 50.1% 265,931 266,536
40% 39.7% 212,745 211,353
30% 29.8% 159,559 158,598
20% 19.9% 106,373 105,890
10% 10.0% 53,186 53,017
Active Idle   0 0
Graph of results
Host 'Node-32' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,915
Calibration 2     529,821
Calibration 3     524,455
ssj_ops@calibrated=527,138
100% 99.4% 527,138 523,776
90% 90.6% 474,424 477,477
80% 79.9% 421,711 421,277
70% 69.8% 368,997 367,848
60% 60.2% 316,283 317,137
50% 49.9% 263,569 263,056
40% 39.8% 210,855 209,683
30% 30.0% 158,141 158,358
20% 20.1% 105,428 105,731
10% 10.0% 52,714 52,670
Active Idle   0 0
Graph of results
Host 'Node-33' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,463
Calibration 2     528,271
Calibration 3     526,748
ssj_ops@calibrated=527,510
100% 99.7% 527,510 526,180
90% 90.3% 474,759 476,493
80% 80.1% 422,008 422,548
70% 70.1% 369,257 369,993
60% 59.9% 316,506 316,225
50% 50.0% 263,755 263,918
40% 39.7% 211,004 209,675
30% 29.9% 158,253 157,943
20% 20.1% 105,502 105,927
10% 10.0% 52,751 52,950
Active Idle   0 0
Graph of results
Host 'Node-34' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     532,581
Calibration 2     535,214
Calibration 3     536,254
ssj_ops@calibrated=535,734
100% 99.8% 535,734 534,839
90% 89.7% 482,161 480,387
80% 80.4% 428,587 430,855
70% 70.3% 375,014 376,522
60% 60.0% 321,440 321,494
50% 50.2% 267,867 268,979
40% 40.0% 214,294 214,116
30% 30.3% 160,720 162,442
20% 20.0% 107,147 107,371
10% 10.1% 53,573 54,129
Active Idle   0 0
Graph of results
Host 'Node-35' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,186
Calibration 2     520,133
Calibration 3     518,073
ssj_ops@calibrated=519,103
100% 99.7% 519,103 517,626
90% 89.4% 467,193 464,085
80% 80.3% 415,283 417,027
70% 70.0% 363,372 363,183
60% 60.2% 311,462 312,388
50% 49.9% 259,552 259,269
40% 40.1% 207,641 208,272
30% 29.8% 155,731 154,708
20% 19.7% 103,821 102,499
10% 9.9% 51,910 51,473
Active Idle   0 0
Graph of results
Host 'Node-36' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,733
Calibration 2     531,994
Calibration 3     527,145
ssj_ops@calibrated=529,570
100% 99.2% 529,570 525,522
90% 90.2% 476,613 477,901
80% 79.9% 423,656 423,328
70% 69.7% 370,699 369,000
60% 60.1% 317,742 318,393
50% 50.0% 264,785 264,934
40% 39.7% 211,828 210,131
30% 30.0% 158,871 158,971
20% 19.8% 105,914 104,789
10% 9.9% 52,957 52,561
Active Idle   0 0
Graph of results
Host 'Node-37' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,609
Calibration 2     527,636
Calibration 3     520,660
ssj_ops@calibrated=524,148
100% 97.9% 524,148 513,152
90% 89.8% 471,733 470,813
80% 80.1% 419,318 419,998
70% 69.9% 366,904 366,121
60% 60.0% 314,489 314,263
50% 49.9% 262,074 261,434
40% 40.0% 209,659 209,405
30% 30.3% 157,244 158,624
20% 20.1% 104,830 105,110
10% 9.8% 52,415 51,296
Active Idle   0 0
Graph of results
Host 'Node-38' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,245
Calibration 2     523,329
Calibration 3     525,461
ssj_ops@calibrated=524,395
100% 99.3% 524,395 520,547
90% 89.9% 471,955 471,293
80% 79.8% 419,516 418,520
70% 70.0% 367,076 366,919
60% 60.2% 314,637 315,851
50% 50.1% 262,197 262,483
40% 39.6% 209,758 207,615
30% 29.7% 157,318 155,628
20% 20.3% 104,879 106,376
10% 9.9% 52,439 52,059
Active Idle   0 0
Graph of results
Host 'Node-4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,151
Calibration 2     532,458
Calibration 3     528,375
ssj_ops@calibrated=530,417
100% 99.4% 530,417 527,298
90% 90.1% 477,375 477,915
80% 80.1% 424,333 424,626
70% 69.9% 371,292 370,956
60% 59.7% 318,250 316,712
50% 50.3% 265,208 266,620
40% 39.9% 212,167 211,897
30% 30.0% 159,125 159,339
20% 20.1% 106,083 106,808
10% 10.1% 53,042 53,745
Active Idle   0 0
Graph of results
Host 'Node-5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     525,745
Calibration 2     528,641
Calibration 3     529,168
ssj_ops@calibrated=528,905
100% 99.6% 528,905 526,996
90% 89.4% 476,014 472,615
80% 80.2% 423,124 424,210
70% 70.1% 370,233 370,952
60% 59.8% 317,343 316,147
50% 50.1% 264,452 264,902
40% 39.9% 211,562 211,249
30% 30.1% 158,671 159,007
20% 20.0% 105,781 105,539
10% 10.1% 52,890 53,598
Active Idle   0 0

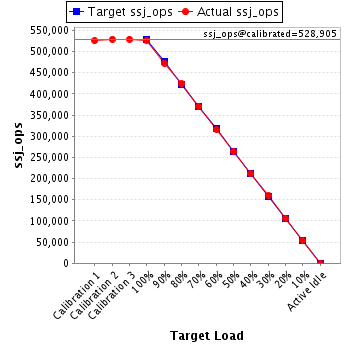

Graph of results
Host 'Node-6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,133
Calibration 2     531,549
Calibration 3     531,497
ssj_ops@calibrated=531,523
100% 100.1% 531,523 531,859
90% 90.1% 478,371 478,674
80% 79.8% 425,219 424,333
70% 70.3% 372,066 373,648
60% 60.3% 318,914 320,642
50% 49.7% 265,762 264,353
40% 40.1% 212,609 212,929
30% 30.1% 159,457 159,915
20% 20.0% 106,305 106,542
10% 10.0% 53,152 53,169
Active Idle   0 0
Graph of results
Host 'Node-7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,127
Calibration 2     529,382
Calibration 3     526,236
ssj_ops@calibrated=527,809
100% 99.2% 527,809 523,429
90% 90.3% 475,028 476,354
80% 80.2% 422,247 423,515
70% 70.4% 369,466 371,386
60% 59.9% 316,685 316,376
50% 49.8% 263,904 263,001
40% 40.0% 211,124 211,345
30% 29.9% 158,343 157,905
20% 19.9% 105,562 105,020
10% 10.1% 52,781 53,415
Active Idle   0 0
Graph of results
Host 'Node-8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,044
Calibration 2     531,865
Calibration 3     531,086
ssj_ops@calibrated=531,475
100% 99.9% 531,475 530,791
90% 90.3% 478,328 479,856
80% 80.4% 425,180 427,115
70% 70.5% 372,033 374,510
60% 60.1% 318,885 319,336
50% 50.2% 265,738 266,609
40% 40.0% 212,590 212,532
30% 30.2% 159,443 160,391
20% 20.2% 106,295 107,163
10% 9.9% 53,148 52,433
Active Idle   0 0
Graph of results
Host 'Node-9' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,139
Calibration 2     527,939
Calibration 3     526,707
ssj_ops@calibrated=527,323
100% 99.7% 527,323 525,807
90% 90.6% 474,591 477,781
80% 79.9% 421,859 421,458
70% 70.0% 369,126 369,215
60% 60.2% 316,394 317,254
50% 50.2% 263,662 264,790
40% 40.0% 210,929 211,168
30% 30.1% 158,197 158,472
20% 19.9% 105,465 104,733
10% 10.0% 52,732 52,700
Active Idle   0 0
Graph of results
