SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G6 (2.93 GHz, Intel Xeon X5670 processor) | SPECpower_ssj2008 = 2,780 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Mar 29, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Apr 21, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

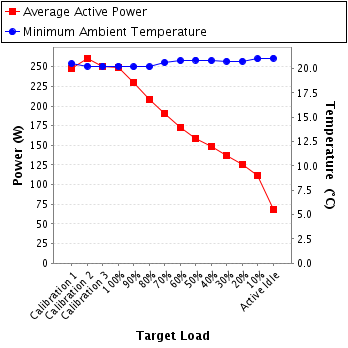

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 247 | 20.5 |
| Calibration 2 | 261 | 20.2 |
| Calibration 3 | 251 | 20.2 |
| 100% | 249 | 20.2 |
| 90% | 230 | 20.2 |
| 80% | 208 | 20.2 |
| 70% | 190 | 20.6 |
| 60% | 173 | 20.8 |
| 50% | 159 | 20.9 |
| 40% | 148 | 20.8 |
| 30% | 137 | 20.8 |
| 20% | 125 | 20.8 |
| 10% | 111 | 21.0 |
| Active Idle | 68.1 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705449 |
| Date of Calibration: | 10-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 210 | 300.0 | 1.25 | 2.0 | 0.945 | 247 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.31 | 2.0 | 0.950 | 261 | 0.4% |
| Calibration 3 | 209 | 300.0 | 1.26 | 2.0 | 0.948 | 251 | 0.4% |
| 100% | 210 | 300.0 | 1.25 | 2.0 | 0.948 | 249 | 0.4% |
| 90% | 209 | 300.0 | 1.16 | 2.0 | 0.943 | 230 | 0.4% |
| 80% | 209 | 300.0 | 1.07 | 2.0 | 0.932 | 208 | 0.5% |
| 70% | 209 | 300.0 | 0.983 | 1.0 | 0.923 | 190 | 0.3% |
| 60% | 209 | 300.0 | 0.906 | 1.0 | 0.914 | 173 | 0.4% |
| 50% | 210 | 300.0 | 0.839 | 1.0 | 0.905 | 159 | 0.4% |
| 40% | 210 | 300.0 | 0.788 | 1.0 | 0.896 | 148 | 0.4% |
| 30% | 210 | 300.0 | 0.736 | 1.0 | 0.887 | 137 | 0.4% |
| 20% | 210 | 300.0 | 0.683 | 1.0 | 0.876 | 125 | 0.4% |
| 10% | 210 | 300.0 | 0.619 | 1.0 | 0.857 | 111 | 0.5% |
| Active Idle | 210 | 300.0 | 0.414 | 1.0 | 0.785 | 68.1 | 0.7% |
