Acer Incorporated Acer AT110 F1 SPECpower_ssj2008 = 1,243 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Apr 9, 2010
Hardware Availability: Dec-2009 Software Availability: Jul-2009 Publication: May 19, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 94.3 25.2
Calibration 2 96.3 25.4
Calibration 3 95.8 25.5
100% 95.4 25.6
90% 92.3 25.7
80% 87.9 25.8
70% 84.3 25.8
60% 80.7 25.8
50% 75.4 25.7
40% 70.9 25.8
30% 64.9 25.8
20% 59.5 25.6
10% 53.3 25.6
Active Idle 49.6 25.5

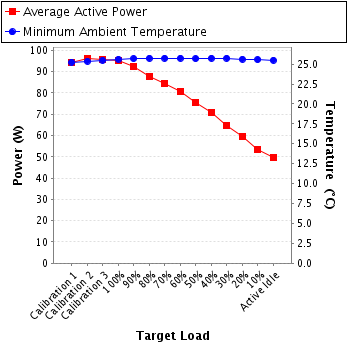

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232-C
Input Connection: Default
Calibration Institute: Tai Yi Electronics & Surveillance Co., Ltd.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T9802230701
Date of Calibration: 30-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: Temperature@lert
Driver Version: 2.4.16.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 110 150.0 0.873 2.0 0.980 94.3 0.5%
Calibration 2 110 150.0 0.892 2.0 0.980 96.3 0.5%
Calibration 3 110 150.0 0.886 2.0 0.980 95.8 0.5%
100% 110 150.0 0.883 2.0 0.980 95.4 0.5%
90% 110 150.0 0.855 2.0 0.979 92.3 0.5%
80% 110 150.0 0.815 2.0 0.977 87.9 0.5%
70% 110 150.0 0.784 2.0 0.975 84.3 0.5%
60% 110 150.0 0.752 2.0 0.972 80.7 0.5%
50% 110 150.0 0.705 2.0 0.969 75.4 0.6%
40% 110 150.0 0.665 2.0 0.967 70.9 0.6%
30% 110 150.0 0.611 2.0 0.963 64.9 0.6%
20% 110 150.0 0.561 2.0 0.960 59.5 0.7%
10% 110 150.0 0.504 2.0 0.959 53.3 0.7%
Active Idle 110 150.0 0.466 2.0 0.966 49.6 0.8%
Power details for pwr1
