Acer Incorporated Acer AT110 F1 ssj_ops@100% = 183,161
ssj_ops@100% per JVM = 91,580
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Apr 9, 2010
Hardware Availability: Dec-2009 Software Availability: Jul-2009 Publication: May 19, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,067
Calibration 2     183,476
Calibration 3     184,798
ssj_ops@calibrated=184,137
100% 99.5% 184,137 183,161
90% 89.6% 165,723 164,961
80% 80.0% 147,309 147,343
70% 69.9% 128,896 128,773
60% 60.3% 110,482 110,963
50% 50.0% 92,068 92,053
40% 40.4% 73,655 74,381
30% 29.9% 55,241 55,127
20% 20.1% 36,827 37,020
10% 9.7% 18,414 17,941
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT110 F1
Form Factor: Tower
CPU Name: Intel Xeon Processor L3360
CPU Characteristics: 12M Cache, 2.83 GHz, 1333 MHz FSB
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4.00
# and size of DIMM: 2 x 2048 MB
Memory Details: 2GB 2Rx8 PC2-6400E ECC CL5; slots 1A and 1B populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: FSP450-60EP
Disk Drive: 1 x 320 GB 7200RPM SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82566DM-2 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: N/A
Software
Power Management: Balance power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition SP2
OS Version: Version 6.0.6002 Service Pack 2 Build 6002
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64)
JVM Command-line Options: --Xms1500m -Xmx1500m -Xns1300m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [0x3,0xC]
JVM Instances: 2
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: none
Management Firmware Version: none
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: None
Boot Firmware Settings
none
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-2TX2SGLJBDD.001 91,430
WIN-2TX2SGLJBDD.002 91,731
ssj_ops@100% 183,161
ssj_ops@100% per JVM 91,580
Graph of per-instance results
JVM 'WIN-2TX2SGLJBDD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,501
Calibration 2     91,549
Calibration 3     92,365
ssj_ops@calibrated=91,957
100% 99.4% 91,957 91,430
90% 89.2% 82,761 82,046
80% 80.3% 73,565 73,840
70% 69.9% 64,370 64,291
60% 60.1% 55,174 55,254
50% 49.9% 45,978 45,914
40% 39.8% 36,783 36,570
30% 30.2% 27,587 27,753
20% 20.2% 18,391 18,619
10% 9.8% 9,196 8,979
Active Idle   0 0

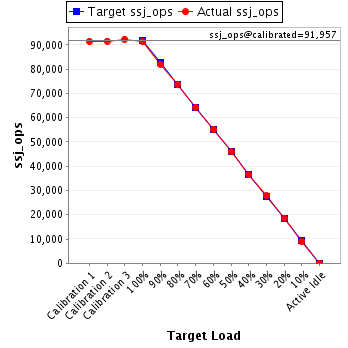

Graph of results
JVM 'WIN-2TX2SGLJBDD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,566
Calibration 2     91,927
Calibration 3     92,433
ssj_ops@calibrated=92,180
100% 99.5% 92,180 91,731
90% 89.9% 82,962 82,915
80% 79.7% 73,744 73,502
70% 70.0% 64,526 64,481
60% 60.4% 55,308 55,709
50% 50.1% 46,090 46,140
40% 41.0% 36,872 37,812
30% 29.7% 27,654 27,374
20% 20.0% 18,436 18,401
10% 9.7% 9,218 8,962
Active Idle   0 0

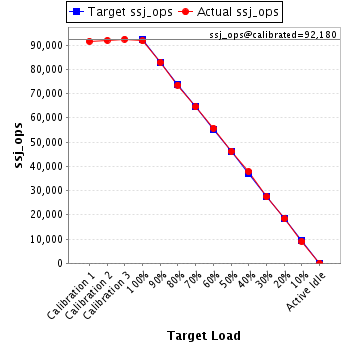

Graph of results
