Fujitsu PRIMERGY TX300 S6 (Intel Xeon X5670) SPECpower_ssj2008 = 2,900 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Apr 30, 2010
Hardware Availability: Apr-2010 Software Availability: Nov-2009 Publication: May 19, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 236 22.6
Calibration 2 236 22.6
Calibration 3 236 22.7
100% 236 22.7
90% 215 22.7
80% 196 22.7
70% 180 22.7
60% 166 22.7
50% 155 22.7
40% 144 22.7
30% 134 22.7
20% 124 22.6
10% 113 22.6
Active Idle 78.5 22.6

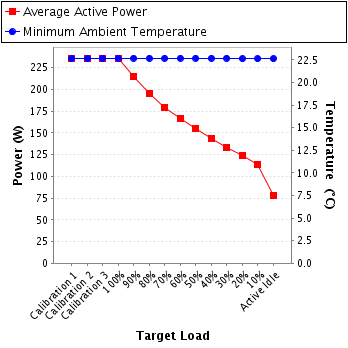

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210208
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10026886
Date of Calibration: 23-Feb-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 1.09 1.2 0.941 236 0.1%
Calibration 2 231 250.0 1.09 1.2 0.941 236 0.1%
Calibration 3 232 250.0 1.08 1.2 0.940 236 0.1%
100% 232 250.0 1.08 1.2 0.940 236 0.1%
90% 232 250.0 0.995 1.2 0.932 215 0.1%
80% 232 250.0 0.914 1.2 0.923 196 0.1%
70% 232 250.0 0.847 1.2 0.914 180 0.1%
60% 232 250.0 0.791 1.2 0.905 166 0.1%
50% 233 250.0 0.742 1.2 0.894 155 0.1%
40% 233 250.0 0.698 1.2 0.884 144 0.1%
30% 233 250.0 0.658 1.2 0.873 134 0.1%
20% 233 250.0 0.620 1.2 0.860 124 0.1%
10% 233 250.0 0.579 0.6 0.838 113 0.1%
Active Idle 234 250.0 0.439 0.6 0.765 78.5 0.1%

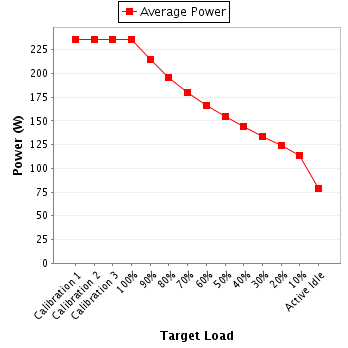

Power details for pwr1
