Hewlett-Packard Company ProLiant SL2x170z G6 ssj_ops@100% = 2,889,017
ssj_ops@100% per Host = 722,254
ssj_ops@100% per JVM = 120,376
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 1, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Jun 17, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,883,238
Calibration 2     2,898,419
Calibration 3     2,898,933
ssj_ops@calibrated=2,898,676
100% 99.7% 2,898,676 2,889,017
90% 90.1% 2,608,809 2,611,127
80% 80.0% 2,318,941 2,319,902
70% 70.1% 2,029,073 2,031,265
60% 60.1% 1,739,206 1,740,977
50% 50.0% 1,449,338 1,448,809
40% 40.0% 1,159,470 1,159,755
30% 30.0% 869,603 869,077
20% 20.0% 579,735 581,126
10% 10.0% 289,868 290,762
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 64.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant SL6000
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: part number: 570451-101
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant SL2x170z G6
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant SL2x170z G6
Form Factor: 1U
CPU Name: Intel Xeon L5640
CPU Characteristics: Six-Core, 2.27 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per chip
Tertiary Cache: 12 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB PC3L-10600E; slots 1 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB 3G SATA 2.5in QR MDL SSD, HP part #586585-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x NC362i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1900
JVM Maximum Heap (MB): 1900
JVM Address Bits: 64
Boot Firmware Version: O34 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
sl2x170z-node1 721,216
sl2x170z-node2 719,572
sl2x170z-node3 726,994
sl2x170z-node4 721,235
ssj_ops@100% 2,889,017
ssj_ops@100% per Host 722,254
ssj_ops@100% per JVM 120,376
Graph of per-host results
Host 'sl2x170z-node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     723,542
Calibration 2     725,309
Calibration 3     725,703
ssj_ops@calibrated=725,506
100% 99.4% 725,506 721,216
90% 90.3% 652,955 655,048
80% 79.7% 580,405 578,507
70% 70.1% 507,854 508,776
60% 60.1% 435,304 436,071
50% 49.8% 362,753 361,123
40% 40.2% 290,202 291,797
30% 30.0% 217,652 217,926
20% 20.1% 145,101 145,536
10% 10.0% 72,551 72,600
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'sl2x170z-node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     718,926
Calibration 2     720,857
Calibration 3     722,200
ssj_ops@calibrated=721,529
100% 99.7% 721,529 719,572
90% 90.1% 649,376 650,031
80% 80.6% 577,223 581,797
70% 70.3% 505,070 507,067
60% 59.9% 432,917 431,865
50% 50.0% 360,764 360,804
40% 39.8% 288,612 287,271
30% 29.8% 216,459 215,178
20% 20.1% 144,306 145,219
10% 9.9% 72,153 71,288
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'sl2x170z-node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     721,251
Calibration 2     728,418
Calibration 3     726,027
ssj_ops@calibrated=727,222
100% 100.0% 727,222 726,994
90% 90.2% 654,500 655,891
80% 79.8% 581,778 580,543
70% 70.0% 509,056 509,240
60% 60.0% 436,333 436,036
50% 50.1% 363,611 364,291
40% 39.8% 290,889 289,749
30% 29.9% 218,167 217,704
20% 20.0% 145,444 145,722
10% 10.0% 72,722 72,806
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'sl2x170z-node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     719,520
Calibration 2     723,835
Calibration 3     725,003
ssj_ops@calibrated=724,419
100% 99.6% 724,419 721,235
90% 89.7% 651,977 650,156
80% 79.9% 579,535 579,055
70% 69.9% 507,093 506,182
60% 60.3% 434,652 437,005
50% 50.1% 362,210 362,591
40% 40.2% 289,768 290,938
30% 30.1% 217,326 218,270
20% 20.0% 144,884 144,649
10% 10.2% 72,442 74,067
Active Idle   0 0

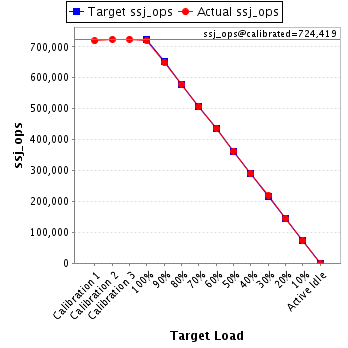

Graph of results
See the Host Performance Report for additional details.
