Dell Inc. PowerEdge R815 (AMD Opteron 6174, 2.20 GHz) ssj_ops@100% = 926,676
ssj_ops@100% per JVM = 231,669
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 8, 2010
Hardware Availability: Jul-2010 Software Availability: Jul-2009 Publication: Jun 30, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     931,029
Calibration 2     930,389
Calibration 3     930,228
ssj_ops@calibrated=930,308
100% 99.6% 930,308 926,676
90% 89.8% 837,278 835,862
80% 80.1% 744,247 745,312
70% 69.8% 651,216 649,772
60% 59.9% 558,185 557,269
50% 50.0% 465,154 464,746
40% 40.1% 372,123 373,390
30% 30.0% 279,093 278,929
20% 20.0% 186,062 185,938
10% 10.0% 93,031 92,932
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R815 (AMD Opteron 6174, 2.20 GHz)
Form Factor: 2U
CPU Name: AMD Opteron 6174
CPU Characteristics: Twelve Core, 2.20 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared/ 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2 GB 2Rx8 PC3-10600E ECC , Slots A1-A4, B1-B4 populated
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Dell PN 9PG9X
Disk Drive: 1 x 50GB 2.5" SATA SSD (Dell PN Y949P)
Disk Controller: PERC H200 Internal
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port onboard Gigabit
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmx1875m -Xmn1400m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 1.1.9
Management Firmware Version: 150 X16 iDRAC
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: Microsoft Hotfix KB974090
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
R815-SPECpower.001 235,024
R815-SPECpower.002 228,984
R815-SPECpower.003 230,201
R815-SPECpower.004 232,466
ssj_ops@100% 926,676
ssj_ops@100% per JVM 231,669

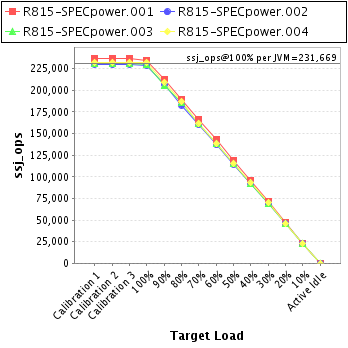

Graph of per-instance results
JVM 'R815-SPECpower.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     237,256
Calibration 2     236,912
Calibration 3     236,601
ssj_ops@calibrated=236,756
100% 99.3% 236,756 235,024
90% 90.0% 213,081 212,992
80% 80.2% 189,405 189,807
70% 70.0% 165,729 165,778
60% 60.3% 142,054 142,652
50% 50.3% 118,378 119,055
40% 40.5% 94,703 95,770
30% 30.1% 71,027 71,172
20% 20.0% 47,351 47,255
10% 9.9% 23,676 23,390
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,435
Calibration 2     230,002
Calibration 3     230,250
ssj_ops@calibrated=230,126
100% 99.5% 230,126 228,984
90% 90.1% 207,113 207,349
80% 79.5% 184,101 183,062
70% 69.7% 161,088 160,367
60% 59.6% 138,076 137,170
50% 49.9% 115,063 114,730
40% 40.0% 92,050 92,125
30% 29.9% 69,038 68,846
20% 19.9% 46,025 45,849
10% 10.0% 23,013 22,968
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,976
Calibration 2     230,860
Calibration 3     230,604
ssj_ops@calibrated=230,732
100% 99.8% 230,732 230,201
90% 89.2% 207,659 205,836
80% 80.5% 184,586 185,646
70% 69.9% 161,512 161,379
60% 60.1% 138,439 138,729
50% 49.8% 115,366 114,993
40% 40.1% 92,293 92,584
30% 29.8% 69,220 68,820
20% 20.2% 46,146 46,496
10% 10.2% 23,073 23,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R815-SPECpower.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,362
Calibration 2     232,615
Calibration 3     232,774
ssj_ops@calibrated=232,694
100% 99.9% 232,694 232,466
90% 90.1% 209,425 209,684
80% 80.3% 186,155 186,797
70% 69.7% 162,886 162,248
60% 59.6% 139,617 138,718
50% 49.8% 116,347 115,967
40% 39.9% 93,078 92,911
30% 30.1% 69,808 70,090
20% 19.9% 46,539 46,337
10% 9.9% 23,269 23,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
