Acer Incorporated Gateway GR380 F1 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 905,129
ssj_ops@100% per JVM = 150,855
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 21, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Jul 14, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     906,505
Calibration 2     907,380
Calibration 3     909,969
ssj_ops@calibrated=908,674
100% 99.6% 908,674 905,129
90% 90.0% 817,807 817,807
80% 80.0% 726,939 727,251
70% 70.0% 636,072 636,398
60% 59.8% 545,204 543,276
50% 49.8% 454,337 452,829
40% 40.1% 363,470 364,191
30% 30.1% 272,602 273,587
20% 20.0% 181,735 181,805
10% 10.1% 90,867 91,850
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR380 F1 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PS-0815
Disk Drive: 1 x 64GB SSD 2.5" SATA
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x onboard Intel gigabit
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P02
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
R380.001 148,601
R380.002 150,514
R380.003 150,365
R380.004 152,555
R380.005 151,317
R380.006 151,776
ssj_ops@100% 905,129
ssj_ops@100% per JVM 150,855
Graph of per-instance results
JVM 'R380.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,129
Calibration 2     148,842
Calibration 3     150,195
ssj_ops@calibrated=149,519
100% 99.4% 149,519 148,601
90% 90.0% 134,567 134,592
80% 80.3% 119,615 120,026
70% 69.9% 104,663 104,515
60% 59.6% 89,711 89,085
50% 49.8% 74,759 74,437
40% 40.1% 59,807 59,949
30% 29.9% 44,856 44,723
20% 19.8% 29,904 29,534
10% 10.0% 14,952 14,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,531
Calibration 2     152,007
Calibration 3     151,642
ssj_ops@calibrated=151,825
100% 99.1% 151,825 150,514
90% 89.5% 136,642 135,848
80% 79.3% 121,460 120,375
70% 70.5% 106,277 107,051
60% 59.8% 91,095 90,751
50% 49.8% 75,912 75,585
40% 40.3% 60,730 61,157
30% 30.0% 45,547 45,546
20% 19.9% 30,365 30,244
10% 10.0% 15,182 15,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,625
Calibration 2     149,578
Calibration 3     150,660
ssj_ops@calibrated=150,119
100% 100.2% 150,119 150,365
90% 90.1% 135,107 135,322
80% 79.7% 120,095 119,599
70% 70.2% 105,083 105,391
60% 59.8% 90,071 89,844
50% 50.1% 75,059 75,152
40% 39.8% 60,048 59,716
30% 30.2% 45,036 45,351
20% 20.1% 30,024 30,173
10% 10.1% 15,012 15,134
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,686
Calibration 2     152,804
Calibration 3     152,705
ssj_ops@calibrated=152,755
100% 99.9% 152,755 152,555
90% 90.4% 137,479 138,056
80% 80.3% 122,204 122,727
70% 70.1% 106,928 107,030
60% 60.0% 91,653 91,586
50% 49.6% 76,377 75,801
40% 40.2% 61,102 61,380
30% 30.2% 45,826 46,192
20% 20.2% 30,551 30,872
10% 10.0% 15,275 15,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,104
Calibration 2     151,232
Calibration 3     152,118
ssj_ops@calibrated=151,675
100% 99.8% 151,675 151,317
90% 89.9% 136,507 136,420
80% 80.1% 121,340 121,531
70% 69.9% 106,172 106,008
60% 59.7% 91,005 90,624
50% 49.9% 75,837 75,625
40% 40.0% 60,670 60,731
30% 30.3% 45,502 45,912
20% 19.9% 30,335 30,244
10% 10.1% 15,167 15,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

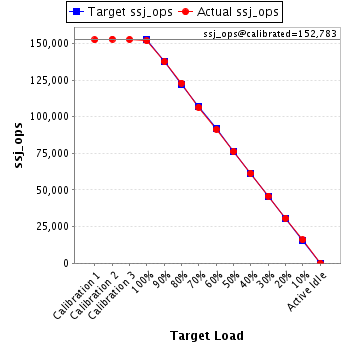

JVM 'R380.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,429
Calibration 2     152,916
Calibration 3     152,649
ssj_ops@calibrated=152,783
100% 99.3% 152,783 151,776
90% 90.0% 137,504 137,569
80% 80.5% 122,226 122,993
70% 69.6% 106,948 106,402
60% 59.8% 91,670 91,387
50% 49.9% 76,391 76,230
40% 40.1% 61,113 61,258
30% 30.0% 45,835 45,864
20% 20.1% 30,557 30,738
10% 10.4% 15,278 15,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
