Acer Incorporated Acer AR380 F1 (Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 895,860
ssj_ops@100% per JVM = 149,310
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 21, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Jul 14, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     898,998
Calibration 2     899,883
Calibration 3     897,693
ssj_ops@calibrated=898,788
100% 99.7% 898,788 895,860
90% 89.8% 808,909 806,736
80% 80.0% 719,030 718,604
70% 70.0% 629,152 628,827
60% 60.0% 539,273 538,905
50% 49.8% 449,394 447,935
40% 39.9% 359,515 358,548
30% 30.1% 269,636 270,523
20% 20.1% 179,758 180,217
10% 10.1% 89,879 91,134
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR380 F1 (Intel Xeon X5670, 2.93 GHz)
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PS-0815
Disk Drive: 1 x 64GB SSD 2.5" SATA
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x onboard Intel gigabit
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P02
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
R380.001 150,147
R380.002 146,265
R380.003 147,322
R380.004 150,154
R380.005 150,207
R380.006 151,767
ssj_ops@100% 895,860
ssj_ops@100% per JVM 149,310

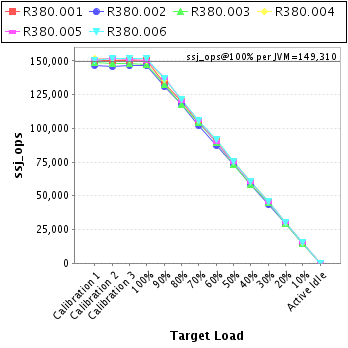

Graph of per-instance results
JVM 'R380.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,033
Calibration 2     150,016
Calibration 3     150,150
ssj_ops@calibrated=150,083
100% 100.0% 150,083 150,147
90% 88.9% 135,075 133,476
80% 80.0% 120,066 120,101
70% 69.7% 105,058 104,618
60% 60.2% 90,050 90,416
50% 50.2% 75,042 75,310
40% 40.4% 60,033 60,624
30% 30.4% 45,025 45,635
20% 19.8% 30,017 29,704
10% 10.2% 15,008 15,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,660
Calibration 2     145,729
Calibration 3     146,269
ssj_ops@calibrated=145,999
100% 100.2% 145,999 146,265
90% 89.6% 131,399 130,756
80% 80.7% 116,799 117,804
70% 69.8% 102,199 101,887
60% 59.7% 87,599 87,184
50% 50.4% 72,999 73,564
40% 40.2% 58,400 58,739
30% 29.7% 43,800 43,404
20% 20.3% 29,200 29,649
10% 10.2% 14,600 14,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,021
Calibration 2     148,402
Calibration 3     147,727
ssj_ops@calibrated=148,064
100% 99.5% 148,064 147,322
90% 89.5% 133,258 132,587
80% 79.6% 118,452 117,814
70% 70.4% 103,645 104,224
60% 60.2% 88,839 89,168
50% 49.3% 74,032 73,000
40% 39.2% 59,226 58,045
30% 30.2% 44,419 44,693
20% 20.0% 29,613 29,650
10% 10.0% 14,806 14,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,848
Calibration 2     151,951
Calibration 3     150,646
ssj_ops@calibrated=151,298
100% 99.2% 151,298 150,154
90% 89.8% 136,168 135,842
80% 80.1% 121,039 121,129
70% 70.2% 105,909 106,156
60% 60.0% 90,779 90,783
50% 49.9% 75,649 75,506
40% 39.8% 60,519 60,284
30% 30.2% 45,389 45,696
20% 20.1% 30,260 30,385
10% 10.0% 15,130 15,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,998
Calibration 2     151,847
Calibration 3     150,911
ssj_ops@calibrated=151,379
100% 99.2% 151,379 150,207
90% 90.8% 136,241 137,473
80% 79.5% 121,103 120,387
70% 70.1% 105,965 106,078
60% 59.3% 90,828 89,824
50% 49.4% 75,690 74,824
40% 39.8% 60,552 60,179
30% 30.1% 45,414 45,519
20% 20.0% 30,276 30,334
10% 10.2% 15,138 15,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R380.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,439
Calibration 2     151,938
Calibration 3     151,990
ssj_ops@calibrated=151,964
100% 99.9% 151,964 151,767
90% 89.9% 136,768 136,603
80% 79.9% 121,571 121,367
70% 69.7% 106,375 105,864
60% 60.2% 91,178 91,530
50% 49.8% 75,982 75,731
40% 39.9% 60,786 60,678
30% 30.0% 45,589 45,576
20% 20.1% 30,393 30,496
10% 10.2% 15,196 15,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
