SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G7 (2.26 GHz, Intel Xeon L5640 processor) | SPECpower_ssj2008 = 3,052 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Jul 20, 2010 |
| Hardware Availability: | Sep-2010 | Software Availability: | Sep-2009 | Publication: | Aug 11, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

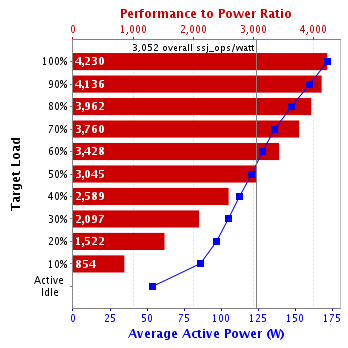

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 725,620 | 172 | 4,230 |
| 90% | 90.6% | 659,864 | 160 | 4,136 |
| 80% | 80.0% | 583,048 | 147 | 3,962 |
| 70% | 70.2% | 511,207 | 136 | 3,760 |
| 60% | 60.3% | 439,188 | 128 | 3,428 |
| 50% | 50.2% | 366,118 | 120 | 3,045 |
| 40% | 39.9% | 290,866 | 112 | 2,589 |
| 30% | 30.1% | 219,614 | 105 | 2,097 |
| 20% | 20.2% | 147,012 | 96.6 | 1,522 |
| 10% | 10.1% | 73,322 | 85.8 | 854 |
| Active Idle | 0 | 53.6 | 0 | |
| ∑ssj_ops / ∑power = | 3,052 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Proliant DL380 G7 |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL380 G7 (2.26 GHz, Intel Xeon L5640 processor) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon L5640 |
| CPU Characteristics: | 6 Core, 2.26 GHz, 12 MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots 3 and 6 populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | HP part # 593188-B21 |
| Disk Drive: | 1 x 120 GB SFF SSD SATA, HP part #572073-B21 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Embedded HP NC382i dual-port gigabit server adapter |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | HP Chipset SATA Cable Kit, HP part #627121-B21 |
| Software | |
|---|---|
| Power Management: | Power saver enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)) |
| JVM Command-line Options: | java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0,F00,F000,F0000,F00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P68 5/15/2010 |
| Management Firmware Version: | 1.0 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard |
| Model: | ProLiant DL360 G5 |
| CPU Description: | Intel Xeon E5440 |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows 2003 R2 Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | java version "1.6.0" Java(TM) SE Runtime Environment (build 1.6.0-b105) BEA JRockit(R) (build R27.2.0-131-78843-1.6.0-20070320-1457-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB53024 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705419 |
| Date of Calibration: | 10-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 172 | 21.4 |
| 90% | 160 | 21.3 |
| 80% | 147 | 21.4 |
| 70% | 136 | 21.6 |
| 60% | 128 | 21.5 |
| 50% | 120 | 21.4 |
| 40% | 112 | 21.3 |
| 30% | 105 | 21.2 |
| 20% | 96.6 | 21.2 |
| 10% | 85.8 | 21.3 |
| Active Idle | 53.6 | 21.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.2 | 132 |

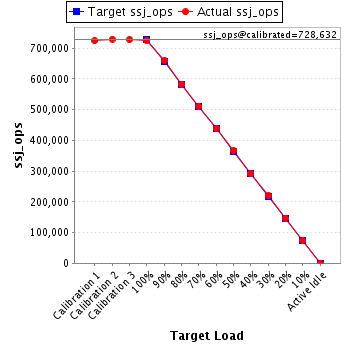

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 724,157 | ||
| Calibration 2 | 729,510 | ||
| Calibration 3 | 727,753 | ||
| ssj_ops@calibrated=728,632 | |||
| 100% | 99.6% | 728,632 | 725,620 |
| 90% | 90.6% | 655,768 | 659,864 |
| 80% | 80.0% | 582,905 | 583,048 |
| 70% | 70.2% | 510,042 | 511,207 |
| 60% | 60.3% | 437,179 | 439,188 |
| 50% | 50.2% | 364,316 | 366,118 |
| 40% | 39.9% | 291,453 | 290,866 |
| 30% | 30.1% | 218,589 | 219,614 |
| 20% | 20.2% | 145,726 | 147,012 |
| 10% | 10.1% | 72,863 | 73,322 |
| Active Idle | 0 | 0 | |
