SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GW2000ht-GW170ht F1 | SPECpower_ssj2008 = 2,098 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | San Jose, CA, USA | Test Date: | Jul 26, 2010 |
| Hardware Availability: | Jul-2010 | Software Availability: | Sep-2009 | Publication: | Aug 25, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

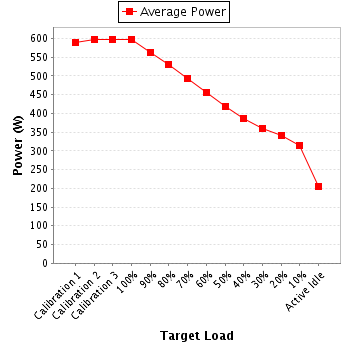

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 589 | 22.4 |
| Calibration 2 | 596 | 22.4 |
| Calibration 3 | 598 | 22.3 |
| 100% | 596 | 22.3 |
| 90% | 562 | 22.5 |
| 80% | 530 | 22.3 |
| 70% | 494 | 22.1 |
| 60% | 457 | 22.2 |
| 50% | 419 | 22.2 |
| 40% | 387 | 22.2 |
| 30% | 361 | 22.0 |
| 20% | 340 | 22.0 |
| 10% | 315 | 22.1 |
| Active Idle | 204 | 22.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H520530 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | SE-Laboratories |
| Calibration Label: | C56-0066 |
| Date of Calibration: | 22-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.89 | 5.0 | 0.982 | 589 | 0.4% |
| Calibration 2 | 208 | 300.0 | 2.92 | 5.0 | 0.982 | 596 | 0.4% |
| Calibration 3 | 208 | 300.0 | 2.93 | 5.0 | 0.982 | 598 | 0.4% |
| 100% | 208 | 300.0 | 2.92 | 5.0 | 0.982 | 596 | 0.4% |
| 90% | 208 | 300.0 | 2.76 | 5.0 | 0.980 | 562 | 0.4% |
| 80% | 208 | 300.0 | 2.61 | 5.0 | 0.978 | 530 | 0.4% |
| 70% | 208 | 300.0 | 2.44 | 5.0 | 0.975 | 494 | 0.4% |
| 60% | 208 | 300.0 | 2.26 | 5.0 | 0.972 | 457 | 0.5% |
| 50% | 208 | 300.0 | 2.08 | 5.0 | 0.969 | 419 | 0.5% |
| 40% | 208 | 300.0 | 1.93 | 5.0 | 0.967 | 387 | 0.5% |
| 30% | 208 | 300.0 | 1.80 | 5.0 | 0.964 | 361 | 0.6% |
| 20% | 208 | 300.0 | 1.70 | 5.0 | 0.962 | 340 | 0.6% |
| 10% | 208 | 300.0 | 1.58 | 5.0 | 0.957 | 315 | 0.6% |
| Active Idle | 208 | 300.0 | 1.06 | 5.0 | 0.926 | 204 | 0.9% |
