Acer Incorporated Acer AW2000ht-AW170ht F1 ssj_ops@100% = 887,144
ssj_ops@100% per JVM = 147,857
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Jul 26, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Aug 25, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     890,267
Calibration 2     892,234
Calibration 3     888,632
ssj_ops@calibrated=890,433
100% 99.6% 890,433 887,144
90% 89.6% 801,390 798,203
80% 79.9% 712,347 711,159
70% 69.9% 623,303 622,628
60% 60.3% 534,260 536,548
50% 50.2% 445,217 446,825
40% 39.9% 356,173 355,290
30% 30.1% 267,130 268,160
20% 19.9% 178,087 177,485
10% 10.0% 89,043 88,648
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AW2000ht-AW170ht F1
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12.0
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 1A, 2A, and 3A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82574L Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: NVIDIA Tesla C2050 GPU Card
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: D03 07/22/2010
Management Firmware Version: 0.01 06/04/2010
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
AW2000ht-GPU-1st-Node.001 149,836
AW2000ht-GPU-1st-Node.002 147,246
AW2000ht-GPU-1st-Node.003 146,824
AW2000ht-GPU-1st-Node.004 149,750
AW2000ht-GPU-1st-Node.005 147,648
AW2000ht-GPU-1st-Node.006 145,840
ssj_ops@100% 887,144
ssj_ops@100% per JVM 147,857

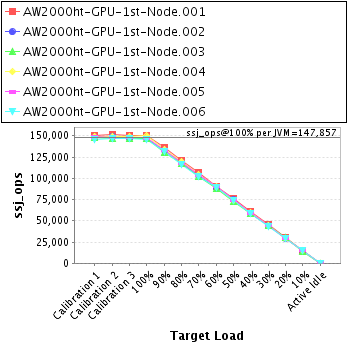

Graph of per-instance results
JVM 'AW2000ht-GPU-1st-Node.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,349
Calibration 2     151,819
Calibration 3     150,855
ssj_ops@calibrated=151,337
100% 99.0% 151,337 149,836
90% 89.9% 136,203 136,122
80% 80.0% 121,069 121,140
70% 70.2% 105,936 106,227
60% 59.9% 90,802 90,713
50% 50.4% 75,668 76,332
40% 40.1% 60,535 60,668
30% 30.2% 45,401 45,636
20% 20.0% 30,267 30,262
10% 9.9% 15,134 15,021
Active Idle   0 0
Graph of results
JVM 'AW2000ht-GPU-1st-Node.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,915
Calibration 2     149,038
Calibration 3     147,270
ssj_ops@calibrated=148,154
100% 99.4% 148,154 147,246
90% 89.8% 133,338 133,103
80% 80.0% 118,523 118,521
70% 69.8% 103,708 103,448
60% 59.8% 88,892 88,604
50% 50.4% 74,077 74,675
40% 39.8% 59,262 58,924
30% 30.0% 44,446 44,514
20% 20.0% 29,631 29,564
10% 10.0% 14,815 14,776
Active Idle   0 0
Graph of results
JVM 'AW2000ht-GPU-1st-Node.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,784
Calibration 2     146,922
Calibration 3     147,179
ssj_ops@calibrated=147,050
100% 99.8% 147,050 146,824
90% 88.8% 132,345 130,610
80% 79.7% 117,640 117,254
70% 69.3% 102,935 101,884
60% 59.5% 88,230 87,511
50% 49.8% 73,525 73,228
40% 40.0% 58,820 58,878
30% 30.6% 44,115 44,964
20% 20.3% 29,410 29,815
10% 9.8% 14,705 14,416
Active Idle   0 0
Graph of results
JVM 'AW2000ht-GPU-1st-Node.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,603
Calibration 2     149,549
Calibration 3     148,705
ssj_ops@calibrated=149,127
100% 100.4% 149,127 149,750
90% 89.6% 134,214 133,686
80% 80.4% 119,302 119,940
70% 69.9% 104,389 104,257
60% 60.3% 89,476 89,954
50% 49.8% 74,563 74,254
40% 39.8% 59,651 59,327
30% 30.2% 44,738 44,964
20% 19.8% 29,825 29,506
10% 9.9% 14,913 14,795
Active Idle   0 0
Graph of results
JVM 'AW2000ht-GPU-1st-Node.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,610
Calibration 2     148,409
Calibration 3     148,246
ssj_ops@calibrated=148,327
100% 99.5% 148,327 147,648
90% 89.7% 133,495 132,986
80% 79.8% 118,662 118,374
70% 70.3% 103,829 104,261
60% 61.1% 88,996 90,579
50% 50.4% 74,164 74,773
40% 39.9% 59,331 59,158
30% 30.2% 44,498 44,859
20% 19.9% 29,665 29,552
10% 10.1% 14,833 15,028
Active Idle   0 0
Graph of results
JVM 'AW2000ht-GPU-1st-Node.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,007
Calibration 2     146,497
Calibration 3     146,379
ssj_ops@calibrated=146,438
100% 99.6% 146,438 145,840
90% 89.9% 131,794 131,696
80% 79.2% 117,150 115,930
70% 70.0% 102,507 102,552
60% 60.9% 87,863 89,187
50% 50.2% 73,219 73,563
40% 39.8% 58,575 58,336
30% 29.5% 43,931 43,224
20% 19.7% 29,288 28,785
10% 10.0% 14,644 14,612
Active Idle   0 0
Graph of results
