Dell Inc. PowerEdge M610 ssj_ops@100% = 909,991
ssj_ops@100% per JVM = 151,665
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     912,522
Calibration 2     914,979
Calibration 3     914,837
ssj_ops@calibrated=914,908
100% 99.5% 914,908 909,991
90% 89.9% 823,417 822,445
80% 80.3% 731,926 735,015
70% 70.0% 640,435 640,085
60% 60.1% 548,945 550,172
50% 49.9% 457,454 456,610
40% 40.1% 365,963 366,507
30% 30.2% 274,472 276,549
20% 20.0% 182,982 183,039
10% 10.0% 91,491 91,229
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M610-2.001 151,170
M610-2.002 151,461
M610-2.003 150,502
M610-2.004 151,567
M610-2.005 150,995
M610-2.006 154,296
ssj_ops@100% 909,991
ssj_ops@100% per JVM 151,665

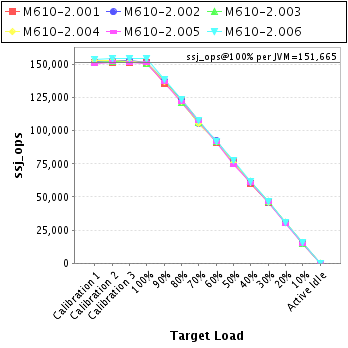

Graph of per-instance results
JVM 'M610-2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,647
Calibration 2     151,608
Calibration 3     151,698
ssj_ops@calibrated=151,653
100% 99.7% 151,653 151,170
90% 89.2% 136,488 135,275
80% 81.5% 121,322 123,614
70% 70.8% 106,157 107,330
60% 59.8% 90,992 90,743
50% 50.6% 75,826 76,670
40% 39.9% 60,661 60,528
30% 30.4% 45,496 46,137
20% 20.1% 30,331 30,426
10% 10.1% 15,165 15,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,298
Calibration 2     152,614
Calibration 3     153,091
ssj_ops@calibrated=152,853
100% 99.1% 152,853 151,461
90% 90.1% 137,567 137,645
80% 80.5% 122,282 123,111
70% 69.2% 106,997 105,777
60% 60.6% 91,712 92,610
50% 49.9% 76,426 76,219
40% 39.8% 61,141 60,870
30% 29.8% 45,856 45,580
20% 20.0% 30,571 30,627
10% 10.1% 15,285 15,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,283
Calibration 2     152,017
Calibration 3     152,226
ssj_ops@calibrated=152,121
100% 98.9% 152,121 150,502
90% 90.5% 136,909 137,662
80% 79.7% 121,697 121,265
70% 69.9% 106,485 106,287
60% 60.3% 91,273 91,741
50% 49.7% 76,061 75,568
40% 40.3% 60,849 61,349
30% 30.6% 45,636 46,488
20% 20.0% 30,424 30,427
10% 9.8% 15,212 14,956
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,894
Calibration 2     152,606
Calibration 3     152,434
ssj_ops@calibrated=152,520
100% 99.4% 152,520 151,567
90% 89.7% 137,268 136,811
80% 80.0% 122,016 122,064
70% 69.3% 106,764 105,733
60% 60.4% 91,512 92,157
50% 49.9% 76,260 76,183
40% 40.1% 61,008 61,233
30% 30.1% 45,756 45,962
20% 20.2% 30,504 30,838
10% 10.1% 15,252 15,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,355
Calibration 2     151,458
Calibration 3     151,225
ssj_ops@calibrated=151,341
100% 99.8% 151,341 150,995
90% 90.2% 136,207 136,515
80% 80.3% 121,073 121,541
70% 70.8% 105,939 107,107
60% 60.2% 90,805 91,134
50% 49.2% 75,671 74,424
40% 40.0% 60,536 60,602
30% 30.5% 45,402 46,144
20% 19.8% 30,268 29,965
10% 9.8% 15,134 14,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,046
Calibration 2     154,675
Calibration 3     154,164
ssj_ops@calibrated=154,420
100% 99.9% 154,420 154,296
90% 89.7% 138,978 138,538
80% 79.9% 123,536 123,420
70% 69.8% 108,094 107,850
60% 59.4% 92,652 91,787
50% 50.2% 77,210 77,545
40% 40.1% 61,768 61,925
30% 29.9% 46,326 46,238
20% 19.9% 30,884 30,756
10% 10.1% 15,442 15,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
