SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/E120b-1 | SPECpower_ssj2008 = 2,118 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Sep 2, 2010 |
| Hardware Availability: | Sep-2010 | Software Availability: | Feb-2010 | Publication: | Sep 22, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

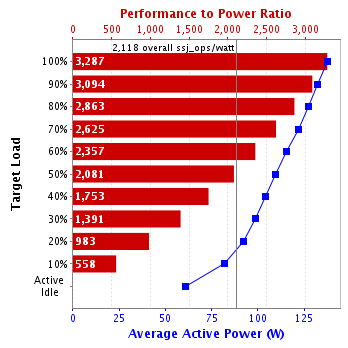

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 452,043 | 138 | 3,287 |
| 90% | 90.0% | 409,069 | 132 | 3,094 |
| 80% | 80.2% | 364,445 | 127 | 2,863 |
| 70% | 70.3% | 319,707 | 122 | 2,625 |
| 60% | 60.0% | 272,609 | 116 | 2,357 |
| 50% | 50.2% | 228,365 | 110 | 2,081 |
| 40% | 40.1% | 182,269 | 104 | 1,753 |
| 30% | 30.1% | 136,931 | 98.4 | 1,391 |
| 20% | 19.9% | 90,532 | 92.1 | 983 |
| 10% | 10.0% | 45,667 | 81.8 | 558 |
| Active Idle | 0 | 60.7 | 0 | |
| ∑ssj_ops / ∑power = | 2,118 | |||
| Set Identifier: | sut |
| Set Description: | Express5800/E120b-1 (Intel Xeon L5630, 2.13 GHz) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/E120b-1 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon L5630 |
| CPU Characteristics: | Quad-Core, 2.13 GHz (Intel Turbo Boost Technology up to 2.40 GHz), 12 MB L3 Cache |
| CPU Frequency (MHz): | 2133 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E ECC CL9; slots CPU1_DIMM1, CPU1_DIMM2, CPU2_DIMM1 and CPU2_DIMM2 populated |
| Power Supply Quantity and Rating (W): | 1 x 360 |
| Power Supply Details: | Delta TDPS-360AB E |
| Disk Drive: | 1 x 50GB SSD SATA, NEC P/N:N8150-702 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82574L Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29_BR8175970_BR9402966-129478-1.6.0_11-20100223-1645-windows-x86_64) |
| JVM Command-line Options: | -Xms1810m -Xmx1810m -Xns1600m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [3,C,30,C0,300,C00,3000,C000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1810 |
| JVM Maximum Heap (MB): | 1810 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0.0005 |
| Management Firmware Version: | 01.11 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/R120a-2 |
| CPU Description: | Intel Xeon X5550 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Standard Edition Service Pack 2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R28.0.1-21-133393-1.6.0_20-20100512-2132-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928024 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-95429 |
| Date of Calibration: | 4-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 138 | 22.2 |
| 90% | 132 | 22.2 |
| 80% | 127 | 22.1 |
| 70% | 122 | 22.1 |
| 60% | 116 | 22.1 |
| 50% | 110 | 22.2 |
| 40% | 104 | 22.1 |
| 30% | 98.4 | 22.1 |
| 20% | 92.1 | 22.2 |
| 10% | 81.8 | 22.2 |
| Active Idle | 60.7 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 202V / 50 Hz / 1 phase / 2 wires | 22.1 | 52 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 450,863 | ||
| Calibration 2 | 453,614 | ||
| Calibration 3 | 455,371 | ||
| ssj_ops@calibrated=454,492 | |||
| 100% | 99.5% | 454,492 | 452,043 |
| 90% | 90.0% | 409,043 | 409,069 |
| 80% | 80.2% | 363,594 | 364,445 |
| 70% | 70.3% | 318,145 | 319,707 |
| 60% | 60.0% | 272,695 | 272,609 |
| 50% | 50.2% | 227,246 | 228,365 |
| 40% | 40.1% | 181,797 | 182,269 |
| 30% | 30.1% | 136,348 | 136,931 |
| 20% | 19.9% | 90,898 | 90,532 |
| 10% | 10.0% | 45,449 | 45,667 |
| Active Idle | 0 | 0 | |
