Acer Incorporated Gateway GT350 F1(Intel Xeon X5670, 2.93 GHz) SPECpower_ssj2008 = 2,531 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Sep 10, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 258 24.4
Calibration 2 258 24.8
Calibration 3 258 25.0
100% 257 24.6
90% 242 24.3
80% 228 23.9
70% 213 23.6
60% 196 23.4
50% 180 23.1
40% 163 22.9
30% 150 23.1
20% 139 23.5
10% 127 23.7
Active Idle 78.4 23.7

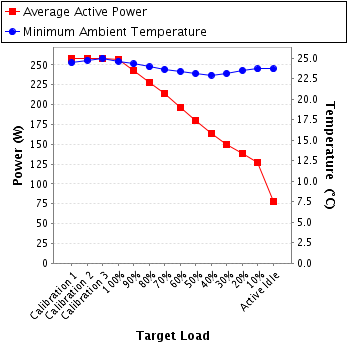

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 10-06-BAC-041-01
Date of Calibration: 10-Jun-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.21 2.0 0.960 258 0.4%
Calibration 2 222 300.0 1.21 2.0 0.960 258 0.4%
Calibration 3 222 300.0 1.21 2.0 0.960 258 0.4%
100% 222 300.0 1.21 2.0 0.960 257 0.4%
90% 222 300.0 1.14 2.0 0.957 242 0.4%
80% 222 300.0 1.08 2.0 0.953 228 0.4%
70% 222 300.0 1.01 1.0 0.949 213 0.3%
60% 222 300.0 0.936 1.0 0.943 196 0.3%
50% 222 300.0 0.863 1.0 0.938 180 0.3%
40% 222 300.0 0.791 1.0 0.931 163 0.4%
30% 222 300.0 0.729 1.0 0.924 150 0.4%
20% 222 300.0 0.680 1.0 0.918 139 0.4%
10% 222 300.0 0.627 1.0 0.909 127 0.4%
Active Idle 222 300.0 0.415 1.0 0.849 78.4 0.6%

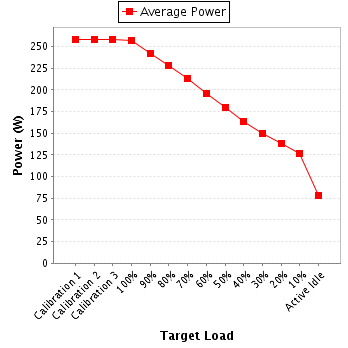

Power details for pwr1
