Acer Incorporated Gateway GT150 F1(Intel Xeon X5670, 2.93 GHz) ssj_ops@100% = 904,396
ssj_ops@100% per JVM = 150,733
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Aug 5, 2010
Hardware Availability: Jun-2010 Software Availability: Dec-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     903,993
Calibration 2     907,775
Calibration 3     906,148
ssj_ops@calibrated=906,961
100% 99.7% 906,961 904,396
90% 90.3% 816,265 818,765
80% 79.8% 725,569 723,984
70% 70.2% 634,873 636,502
60% 59.9% 544,177 543,350
50% 50.2% 453,481 455,458
40% 40.1% 362,785 363,785
30% 30.1% 272,088 272,885
20% 20.1% 181,392 182,467
10% 10.0% 90,696 90,944
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GT150 F1(Intel Xeon X5670, 2.93 GHz)
Form Factor: Tower
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 560
Power Supply Details: PWS-563-1H
Disk Drive: 1 x 64GB SSD 2.5" SATA
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P03
Management Firmware Version: 1.01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-1UVE8JICLK2.001 152,297
WIN-1UVE8JICLK2.002 148,905
WIN-1UVE8JICLK2.003 150,441
WIN-1UVE8JICLK2.004 150,699
WIN-1UVE8JICLK2.005 148,693
WIN-1UVE8JICLK2.006 153,361
ssj_ops@100% 904,396
ssj_ops@100% per JVM 150,733
Graph of per-instance results
JVM 'WIN-1UVE8JICLK2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,524
Calibration 2     152,881
Calibration 3     152,268
ssj_ops@calibrated=152,574
100% 99.8% 152,574 152,297
90% 90.4% 137,317 137,974
80% 80.0% 122,060 122,060
70% 69.5% 106,802 106,056
60% 60.0% 91,545 91,492
50% 50.2% 76,287 76,614
40% 40.4% 61,030 61,622
30% 29.9% 45,772 45,616
20% 20.0% 30,515 30,450
10% 9.9% 15,257 15,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

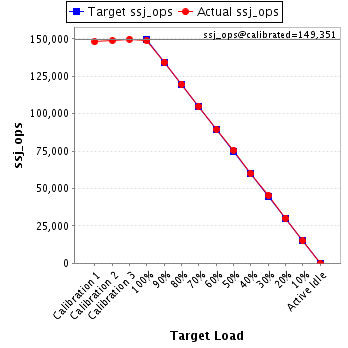

JVM 'WIN-1UVE8JICLK2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,056
Calibration 2     148,853
Calibration 3     149,848
ssj_ops@calibrated=149,351
100% 99.7% 149,351 148,905
90% 90.0% 134,416 134,415
80% 80.2% 119,480 119,757
70% 70.3% 104,545 104,963
60% 60.0% 89,610 89,610
50% 50.7% 74,675 75,699
40% 40.2% 59,740 60,058
30% 30.4% 44,805 45,397
20% 20.3% 29,870 30,244
10% 10.1% 14,935 15,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-1UVE8JICLK2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,184
Calibration 2     151,035
Calibration 3     151,289
ssj_ops@calibrated=151,162
100% 99.5% 151,162 150,441
90% 90.4% 136,046 136,669
80% 79.8% 120,930 120,567
70% 70.8% 105,814 106,996
60% 59.9% 90,697 90,513
50% 50.2% 75,581 75,932
40% 40.4% 60,465 61,013
30% 30.3% 45,349 45,731
20% 20.0% 30,232 30,260
10% 10.2% 15,116 15,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-1UVE8JICLK2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,112
Calibration 2     151,444
Calibration 3     150,881
ssj_ops@calibrated=151,162
100% 99.7% 151,162 150,699
90% 90.4% 136,046 136,718
80% 78.9% 120,930 119,291
70% 70.7% 105,814 106,814
60% 59.5% 90,697 89,893
50% 50.0% 75,581 75,540
40% 40.0% 60,465 60,420
30% 30.3% 45,349 45,752
20% 20.2% 30,232 30,563
10% 10.1% 15,116 15,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-1UVE8JICLK2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,180
Calibration 2     150,316
Calibration 3     148,766
ssj_ops@calibrated=149,541
100% 99.4% 149,541 148,693
90% 90.6% 134,587 135,459
80% 80.7% 119,633 120,705
70% 70.2% 104,679 104,965
60% 60.1% 89,724 89,867
50% 50.5% 74,770 75,549
40% 39.4% 59,816 58,929
30% 29.3% 44,862 43,872
20% 20.2% 29,908 30,157
10% 9.8% 14,954 14,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-1UVE8JICLK2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,938
Calibration 2     153,246
Calibration 3     153,097
ssj_ops@calibrated=153,171
100% 100.1% 153,171 153,361
90% 89.8% 137,854 137,528
80% 79.4% 122,537 121,605
70% 69.7% 107,220 106,708
60% 60.0% 91,903 91,976
50% 49.7% 76,586 76,125
40% 40.3% 61,268 61,743
30% 30.4% 45,951 46,517
20% 20.1% 30,634 30,792
10% 10.1% 15,317 15,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
