Dell Inc. PowerEdge R510 SPECpower_ssj2008 = 2,745 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 31, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 261 23.5
Calibration 2 265 23.4
Calibration 3 264 23.5
100% 266 23.4
90% 239 23.4
80% 214 23.4
70% 196 23.3
60% 179 23.2
50% 167 23.2
40% 155 23.2
30% 142 23.2
20% 130 23.2
10% 114 23.3
Active Idle 56.9 23.2

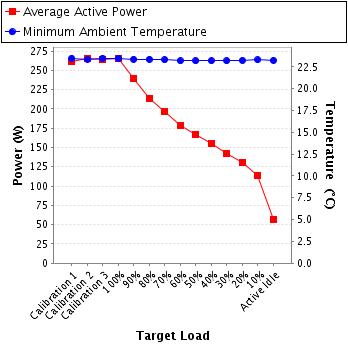

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Corporation of America
Model: WT210
Serial Number: 91JB09482
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Corporation of America
Calibration Label: N-32768
Date of Calibration: 05-Nov-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.3.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 1.30 2.0 0.985 261 0.4%
Calibration 2 205 300.0 1.31 2.0 0.986 265 0.4%
Calibration 3 204 300.0 1.32 2.0 0.981 264 0.4%
100% 204 300.0 1.33 2.0 0.981 266 0.4%
90% 204 300.0 1.20 2.0 0.977 239 0.4%
80% 204 300.0 1.08 2.0 0.972 214 0.4%
70% 204 300.0 0.991 1.0 0.974 196 0.3%
60% 203 300.0 0.907 1.0 0.970 179 0.3%
50% 204 300.0 0.855 1.0 0.961 167 0.3%
40% 203 300.0 0.797 1.0 0.953 155 0.4%
30% 204 300.0 0.738 1.0 0.940 142 0.4%
20% 205 300.0 0.684 1.0 0.929 130 0.4%
10% 205 300.0 0.625 1.0 0.891 114 0.5%
Active Idle 205 300.0 0.341 0.5 0.814 56.9 0.5%

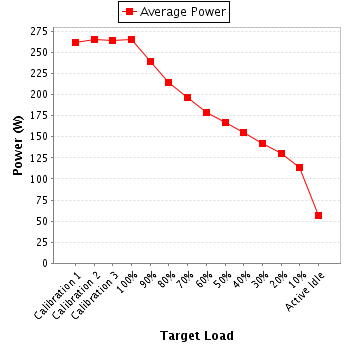

Power details for pwr1
