Dell Inc. PowerEdge R510 ssj_ops@100% = 925,878
ssj_ops@100% per JVM = 154,313
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 31, 2010
Hardware Availability: Jul-2010 Software Availability: Sep-2009 Publication: Oct 6, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     927,311
Calibration 2     928,243
Calibration 3     928,958
ssj_ops@calibrated=928,601
100% 99.7% 928,601 925,878
90% 89.9% 835,741 835,109
80% 79.9% 742,880 742,209
70% 70.0% 650,020 649,764
60% 59.8% 557,160 555,325
50% 49.8% 464,300 462,458
40% 40.0% 371,440 371,683
30% 30.0% 278,580 278,259
20% 20.2% 185,720 187,555
10% 10.1% 92,860 93,631
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R510
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC; slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): 1 x 480
Power Supply Details: Dell PN H410J
Disk Drive: 1 x 160GB 7.2K RPM 3.5" SATA
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port onboard Broadcom NetXtreme II 5716C
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver in OS (see SUT Notes)
Operating System (OS): Windows 2008 Server Enterprise Edition x64
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.3.6
Management Firmware Version: 1.52 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SPF8HVS6F2A.001 154,707
WIN-SPF8HVS6F2A.002 153,660
WIN-SPF8HVS6F2A.003 155,376
WIN-SPF8HVS6F2A.004 154,498
WIN-SPF8HVS6F2A.005 152,314
WIN-SPF8HVS6F2A.006 155,325
ssj_ops@100% 925,878
ssj_ops@100% per JVM 154,313

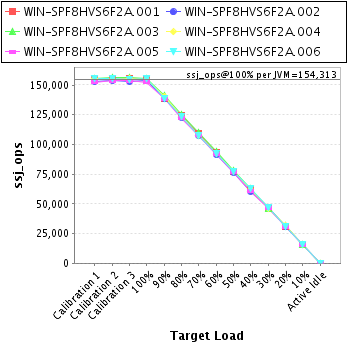

Graph of per-instance results
JVM 'WIN-SPF8HVS6F2A.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,508
Calibration 2     154,619
Calibration 3     155,351
ssj_ops@calibrated=154,985
100% 99.8% 154,985 154,707
90% 89.3% 139,486 138,350
80% 80.4% 123,988 124,535
70% 70.2% 108,489 108,776
60% 60.2% 92,991 93,338
50% 49.9% 77,492 77,273
40% 40.2% 61,994 62,367
30% 30.1% 46,495 46,605
20% 20.2% 30,997 31,256
10% 10.1% 15,498 15,600
Active Idle   0 0
Graph of results
JVM 'WIN-SPF8HVS6F2A.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,961
Calibration 2     153,655
Calibration 3     153,105
ssj_ops@calibrated=153,380
100% 100.2% 153,380 153,660
90% 90.3% 138,042 138,529
80% 80.2% 122,704 122,988
70% 70.1% 107,366 107,591
60% 59.6% 92,028 91,394
50% 50.0% 76,690 76,646
40% 39.5% 61,352 60,605
30% 30.3% 46,014 46,536
20% 20.3% 30,676 31,127
10% 10.1% 15,338 15,470
Active Idle   0 0
Graph of results
JVM 'WIN-SPF8HVS6F2A.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,545
Calibration 2     155,895
Calibration 3     156,570
ssj_ops@calibrated=156,232
100% 99.5% 156,232 155,376
90% 90.4% 140,609 141,258
80% 80.1% 124,986 125,116
70% 70.4% 109,363 109,960
60% 60.1% 93,739 93,839
50% 49.9% 78,116 77,909
40% 40.3% 62,493 63,039
30% 29.7% 46,870 46,415
20% 20.4% 31,246 31,923
10% 10.0% 15,623 15,553
Active Idle   0 0
Graph of results
JVM 'WIN-SPF8HVS6F2A.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,353
Calibration 2     155,034
Calibration 3     155,378
ssj_ops@calibrated=155,206
100% 99.5% 155,206 154,498
90% 90.3% 139,685 140,097
80% 79.7% 124,165 123,766
70% 69.5% 108,644 107,818
60% 59.4% 93,124 92,243
50% 49.7% 77,603 77,119
40% 40.0% 62,082 62,043
30% 29.6% 46,562 45,943
20% 20.5% 31,041 31,768
10% 10.2% 15,521 15,847
Active Idle   0 0
Graph of results
JVM 'WIN-SPF8HVS6F2A.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,165
Calibration 2     153,643
Calibration 3     153,644
ssj_ops@calibrated=153,643
100% 99.1% 153,643 152,314
90% 90.1% 138,279 138,362
80% 79.4% 122,915 121,960
70% 70.2% 107,550 107,835
60% 59.7% 92,186 91,730
50% 49.8% 76,822 76,447
40% 39.4% 61,457 60,493
30% 30.1% 46,093 46,231
20% 19.9% 30,729 30,606
10% 10.1% 15,364 15,500
Active Idle   0 0
Graph of results
JVM 'WIN-SPF8HVS6F2A.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,779
Calibration 2     155,398
Calibration 3     154,910
ssj_ops@calibrated=155,154
100% 100.1% 155,154 155,325
90% 89.3% 139,639 138,514
80% 79.8% 124,124 123,843
70% 69.5% 108,608 107,783
60% 59.8% 93,093 92,780
50% 49.7% 77,577 77,063
40% 40.7% 62,062 63,136
30% 30.0% 46,546 46,530
20% 19.9% 31,031 30,874
10% 10.1% 15,515 15,660
Active Idle   0 0
Graph of results
