Acer Incorporated Acer AW2000h-AW175h F1 ssj_ops@100% = 3,724,716
ssj_ops@100% per Host = 931,179
ssj_ops@100% per JVM = 232,795
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 5, 2010
Hardware Availability: Aug-2010 Software Availability: Dec-2009 Publication: Nov 10, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,746,475
Calibration 2     3,745,949
Calibration 3     3,744,449
ssj_ops@calibrated=3,745,199
100% 99.5% 3,745,199 3,724,716
90% 90.0% 3,370,679 3,372,151
80% 80.0% 2,996,159 2,996,930
70% 70.0% 2,621,639 2,622,844
60% 60.0% 2,247,119 2,248,335
50% 50.0% 1,872,599 1,872,305
40% 39.9% 1,498,080 1,494,701
30% 29.9% 1,123,560 1,121,391
20% 20.1% 749,040 752,238
10% 10.0% 374,520 375,108
Active Idle   0 0

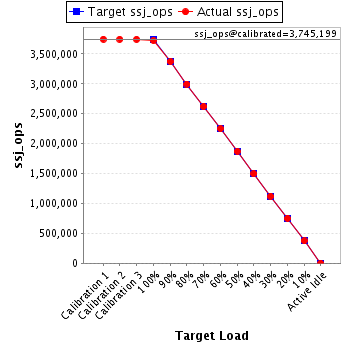

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 96 96 64.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Acer AW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41P-1R
Network Switch: 16-Port Gigabyte switch
Network Switch Details: D-LinkDGS-1016T
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch and monitors are standalone devices and not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-AW175h F1
Form Factor: 2U
CPU Name: AMD Opteron 6174
CPU Characteristics: 12-Core, 2.20 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2048 MB
Memory Details: 2GB 1Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: USB
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [00003F, 000FC0, 03F000, FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-8HBN6J3NIHB 926,417
WIN-9LS4N17UD5K 929,569
WIN-B4O9LANPBF4 934,469
WIN-N4RNL9BG897 934,261
ssj_ops@100% 3,724,716
ssj_ops@100% per Host 931,179
ssj_ops@100% per JVM 232,795
Graph of per-host results
Host 'WIN-8HBN6J3NIHB' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,241
Calibration 2     933,295
Calibration 3     932,540
ssj_ops@calibrated=932,918
100% 99.3% 932,918 926,417
90% 90.0% 839,626 839,259
80% 80.3% 746,334 749,576
70% 70.4% 653,042 656,522
60% 59.9% 559,751 558,417
50% 50.2% 466,459 468,313
40% 39.9% 373,167 371,874
30% 30.0% 279,875 279,590
20% 20.0% 186,584 186,740
10% 10.1% 93,292 94,077
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-9LS4N17UD5K' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,644
Calibration 2     934,526
Calibration 3     933,297
ssj_ops@calibrated=933,912
100% 99.5% 933,912 929,569
90% 89.9% 840,521 839,372
80% 80.1% 747,129 747,696
70% 70.0% 653,738 653,996
60% 60.2% 560,347 562,609
50% 50.1% 466,956 467,719
40% 39.9% 373,565 372,542
30% 29.8% 280,174 278,219
20% 20.0% 186,782 186,787
10% 10.0% 93,391 93,154
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-B4O9LANPBF4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     940,405
Calibration 2     939,731
Calibration 3     939,202
ssj_ops@calibrated=939,466
100% 99.5% 939,466 934,469
90% 90.3% 845,520 848,201
80% 80.0% 751,573 751,711
70% 69.7% 657,626 654,618
60% 60.0% 563,680 563,220
50% 49.9% 469,733 469,236
40% 39.7% 375,786 373,287
30% 30.0% 281,840 282,053
20% 20.1% 187,893 188,953
10% 10.1% 93,947 94,591
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-N4RNL9BG897' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     935,185
Calibration 2     938,397
Calibration 3     939,409
ssj_ops@calibrated=938,903
100% 99.5% 938,903 934,261
90% 90.0% 845,013 845,319
80% 79.7% 751,123 747,947
70% 70.1% 657,232 657,709
60% 60.1% 563,342 564,089
50% 49.7% 469,452 467,037
40% 40.2% 375,561 376,998
30% 30.0% 281,671 281,528
20% 20.2% 187,781 189,759
10% 9.9% 93,890 93,286
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
