SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR160 F1(Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,471 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Oct 8, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Dec-2009 | Publication: | Nov 3, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

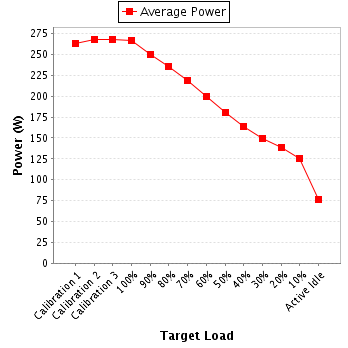

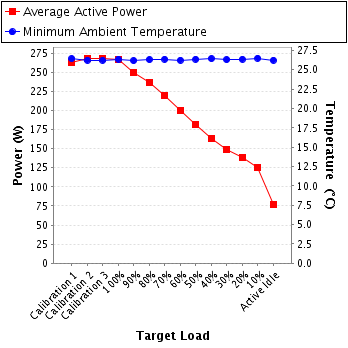

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 263 | 26.4 |
| Calibration 2 | 268 | 26.2 |
| Calibration 3 | 268 | 26.2 |
| 100% | 267 | 26.4 |
| 90% | 250 | 26.2 |
| 80% | 236 | 26.3 |
| 70% | 219 | 26.4 |
| 60% | 200 | 26.2 |
| 50% | 181 | 26.4 |
| 40% | 164 | 26.4 |
| 30% | 149 | 26.3 |
| 20% | 138 | 26.4 |
| 10% | 125 | 26.5 |
| Active Idle | 76.9 | 26.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 10-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 300.0 | 1.23 | 2.0 | 0.934 | 263 | 0.4% |
| Calibration 2 | 230 | 300.0 | 1.25 | 2.0 | 0.934 | 268 | 0.4% |
| Calibration 3 | 230 | 300.0 | 1.25 | 2.0 | 0.934 | 268 | 0.4% |
| 100% | 230 | 300.0 | 1.24 | 2.0 | 0.934 | 267 | 0.4% |
| 90% | 230 | 300.0 | 1.17 | 2.0 | 0.931 | 250 | 0.4% |
| 80% | 230 | 300.0 | 1.11 | 2.0 | 0.929 | 236 | 0.4% |
| 70% | 230 | 300.0 | 1.03 | 1.0 | 0.925 | 219 | 0.3% |
| 60% | 230 | 300.0 | 0.947 | 1.0 | 0.920 | 200 | 0.3% |
| 50% | 230 | 300.0 | 0.863 | 1.0 | 0.914 | 181 | 0.4% |
| 40% | 230 | 300.0 | 0.786 | 1.0 | 0.907 | 164 | 0.4% |
| 30% | 230 | 300.0 | 0.722 | 1.0 | 0.901 | 149 | 0.4% |
| 20% | 230 | 300.0 | 0.674 | 1.0 | 0.894 | 138 | 0.4% |
| 10% | 230 | 300.0 | 0.618 | 1.0 | 0.884 | 125 | 0.4% |
| Active Idle | 230 | 300.0 | 0.412 | 1.0 | 0.812 | 76.9 | 0.6% |
