SPECpower_ssj2008
Host 'X6000-2' Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH310 | ssj_ops@100% = 326,757 ssj_ops@100% per JVM = 163,379 |
||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 12, 2009 |
| Hardware Availability: | Jul-2010 | Software Availability: | Jun-2010 | Publication: | Nov 10, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 329,416 | ||
| Calibration 2 | 329,906 | ||
| Calibration 3 | 329,017 | ||
| ssj_ops@calibrated=329,461 | |||
| 100% | 99.2% | 329,461 | 326,757 |
| 90% | 89.9% | 296,515 | 296,071 |
| 80% | 80.3% | 263,569 | 264,539 |
| 70% | 70.5% | 230,623 | 232,186 |
| 60% | 60.7% | 197,677 | 199,863 |
| 50% | 49.8% | 164,731 | 164,131 |
| 40% | 40.1% | 131,785 | 132,208 |
| 30% | 30.1% | 98,838 | 99,122 |
| 20% | 19.9% | 65,892 | 65,400 |
| 10% | 10.0% | 32,946 | 33,055 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 4 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | XH310 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X3480 |
| CPU Characteristics: | Quad-Core, 3.06GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E ECC |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x0F,0xF0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1900 |
| JVM Maximum Heap (MB): | 1900 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | FUSAV015 |
| Management Firmware Version: | V015 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |
| JVM Instance | ssj_ops@100% |
|---|---|
| X6000-2.001 | 163,523 |
| X6000-2.002 | 163,234 |
| ssj_ops@100% | 326,757 |
| ssj_ops@100% per JVM | 163,379 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 164,656 | ||
| Calibration 2 | 164,809 | ||
| Calibration 3 | 164,723 | ||
| ssj_ops@calibrated=164,766 | |||
| 100% | 99.2% | 164,766 | 163,523 |
| 90% | 90.2% | 148,290 | 148,539 |
| 80% | 80.4% | 131,813 | 132,460 |
| 70% | 70.1% | 115,336 | 115,421 |
| 60% | 60.5% | 98,860 | 99,673 |
| 50% | 49.9% | 82,383 | 82,235 |
| 40% | 40.1% | 65,906 | 66,146 |
| 30% | 29.8% | 49,430 | 49,164 |
| 20% | 20.2% | 32,953 | 33,222 |
| 10% | 9.9% | 16,477 | 16,237 |
| Active Idle | 0 | 0 | |

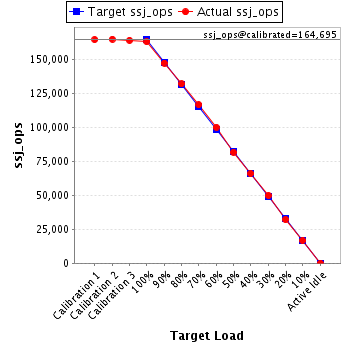

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 164,760 | ||
| Calibration 2 | 165,096 | ||
| Calibration 3 | 164,294 | ||
| ssj_ops@calibrated=164,695 | |||
| 100% | 99.1% | 164,695 | 163,234 |
| 90% | 89.6% | 148,226 | 147,533 |
| 80% | 80.2% | 131,756 | 132,079 |
| 70% | 70.9% | 115,287 | 116,765 |
| 60% | 60.8% | 98,817 | 100,190 |
| 50% | 49.7% | 82,348 | 81,896 |
| 40% | 40.1% | 65,878 | 66,062 |
| 30% | 30.3% | 49,409 | 49,958 |
| 20% | 19.5% | 32,939 | 32,178 |
| 10% | 10.2% | 16,470 | 16,818 |
| Active Idle | 0 | 0 | |
