SPECpower_ssj2008
Host 'x6000-4' Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH310 | ssj_ops@100% = 330,441 ssj_ops@100% per JVM = 165,220 |
||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 12, 2009 |
| Hardware Availability: | Jul-2010 | Software Availability: | Jun-2010 | Publication: | Nov 10, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 328,831 | ||
| Calibration 2 | 331,316 | ||
| Calibration 3 | 331,626 | ||
| ssj_ops@calibrated=331,471 | |||
| 100% | 99.7% | 331,471 | 330,441 |
| 90% | 90.2% | 298,324 | 299,013 |
| 80% | 80.5% | 265,177 | 266,711 |
| 70% | 69.8% | 232,030 | 231,458 |
| 60% | 60.0% | 198,883 | 198,977 |
| 50% | 50.1% | 165,736 | 166,204 |
| 40% | 40.1% | 132,588 | 132,942 |
| 30% | 29.9% | 99,441 | 99,060 |
| 20% | 20.0% | 66,294 | 66,342 |
| 10% | 10.0% | 33,147 | 33,072 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 4 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | XH310 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X3480 |
| CPU Characteristics: | Quad-Core, 3.06GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E ECC |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1900m -Xmx1900m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x0F,0xF0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1900 |
| JVM Maximum Heap (MB): | 1900 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | FUSAV015 |
| Management Firmware Version: | V015 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |

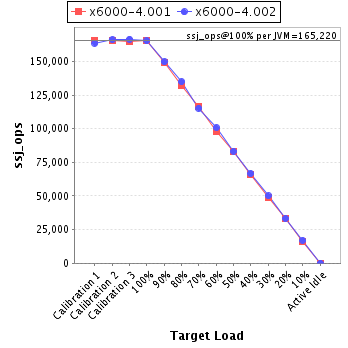

| JVM Instance | ssj_ops@100% |
|---|---|
| x6000-4.001 | 165,198 |
| x6000-4.002 | 165,242 |
| ssj_ops@100% | 330,441 |
| ssj_ops@100% per JVM | 165,220 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 165,209 | ||
| Calibration 2 | 165,199 | ||
| Calibration 3 | 165,086 | ||
| ssj_ops@calibrated=165,143 | |||
| 100% | 100.0% | 165,143 | 165,198 |
| 90% | 90.4% | 148,628 | 149,355 |
| 80% | 79.9% | 132,114 | 131,875 |
| 70% | 70.3% | 115,600 | 116,164 |
| 60% | 59.5% | 99,086 | 98,244 |
| 50% | 50.2% | 82,571 | 82,911 |
| 40% | 40.1% | 66,057 | 66,236 |
| 30% | 29.7% | 49,543 | 48,990 |
| 20% | 20.0% | 33,029 | 33,058 |
| 10% | 9.7% | 16,514 | 16,070 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 163,622 | ||
| Calibration 2 | 166,117 | ||
| Calibration 3 | 166,540 | ||
| ssj_ops@calibrated=166,329 | |||
| 100% | 99.3% | 166,329 | 165,242 |
| 90% | 90.0% | 149,696 | 149,658 |
| 80% | 81.1% | 133,063 | 134,836 |
| 70% | 69.3% | 116,430 | 115,295 |
| 60% | 60.6% | 99,797 | 100,734 |
| 50% | 50.1% | 83,164 | 83,293 |
| 40% | 40.1% | 66,531 | 66,706 |
| 30% | 30.1% | 49,899 | 50,071 |
| 20% | 20.0% | 33,266 | 33,284 |
| 10% | 10.2% | 16,633 | 17,002 |
| Active Idle | 0 | 0 | |
