Acer Incorporated Gateway GT115 F1 (AMD Opteron 4164EE, 1.80 GHz) ssj_ops@100% = 215,041
ssj_ops@100% per JVM = 107,521
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Sep 29, 2010
Hardware Availability: Oct-2010 Software Availability: Sep-2009 Publication: Nov 3, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,212
Calibration 2     216,438
Calibration 3     217,098
ssj_ops@calibrated=216,768
100% 99.2% 216,768 215,041
90% 90.4% 195,091 195,859
80% 79.6% 173,414 172,562
70% 70.1% 151,737 151,853
60% 59.9% 130,061 129,904
50% 50.1% 108,384 108,695
40% 39.8% 86,707 86,253
30% 29.8% 65,030 64,642
20% 19.8% 43,354 42,904
10% 10.0% 21,677 21,771
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GT115 F1 (AMD Opteron 4164EE, 1.80 GHz)
Form Factor: Tower
CPU Name: AMD Opteron 4164EE
CPU Characteristics: Six-Core, 1.8GHz, 6MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 6 cores, 1 chip, 6 cores/chip
Hardware Threads: 6 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB, PC3-1066R- ECC, slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: FSP450-60EP
Disk Drive: 1 x 64 GB SSD 2.5" SATA (Intel SSDSA2SH064G1GC #899386)
Disk Controller: Onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L-Single GbE Controller (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM <build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_049398 <JIT enabled, AOT enabled>
JVM Command-line Options: -Xms1625m -Xmn1200m -Xmx1875m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -XlockReservation -Xnoloa -XtlhPrefetch
JVM Affinity: start /affinity [3F,FC0]
JVM Instances: 2
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: D13
Management Firmware Version: none
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
none
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-07EAG2NCMG5.001 108,542
WIN-07EAG2NCMG5.002 106,499
ssj_ops@100% 215,041
ssj_ops@100% per JVM 107,521
Graph of per-instance results
JVM 'WIN-07EAG2NCMG5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,183
Calibration 2     109,226
Calibration 3     109,529
ssj_ops@calibrated=109,377
100% 99.2% 109,377 108,542
90% 90.6% 98,440 99,127
80% 79.2% 87,502 86,630
70% 69.6% 76,564 76,176
60% 60.1% 65,626 65,769
50% 50.1% 54,689 54,768
40% 39.7% 43,751 43,421
30% 29.7% 32,813 32,515
20% 19.9% 21,875 21,750
10% 9.9% 10,938 10,844
Active Idle   0 0

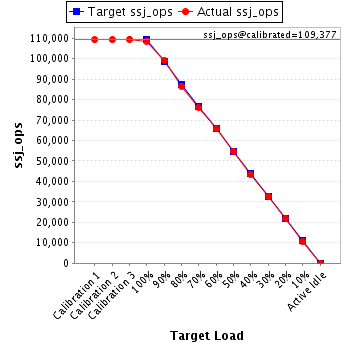

Graph of results
JVM 'WIN-07EAG2NCMG5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,029
Calibration 2     107,212
Calibration 3     107,569
ssj_ops@calibrated=107,390
100% 99.2% 107,390 106,499
90% 90.1% 96,651 96,732
80% 80.0% 85,912 85,932
70% 70.5% 75,173 75,676
60% 59.7% 64,434 64,135
50% 50.2% 53,695 53,927
40% 39.9% 42,956 42,832
30% 29.9% 32,217 32,127
20% 19.7% 21,478 21,154
10% 10.2% 10,739 10,927
Active Idle   0 0
Graph of results
