Acer Incorporated Acer AT115 F1 (AMD Opteron 4164EE, 1.80 GHz) SPECpower_ssj2008 = 1,980 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Sep 29, 2010
Hardware Availability: Oct-2010 Software Availability: Sep-2009 Publication: Nov 3, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 70.2 23.4
Calibration 2 70.4 23.6
Calibration 3 70.4 23.7
100% 70.2 23.6
90% 67.7 23.3
80% 65.2 23.1
70% 62.5 22.9
60% 59.8 22.9
50% 56.1 23.2
40% 52.3 23.1
30% 49.3 23.1
20% 46.1 23.1
10% 41.7 23.0
Active Idle 31.9 23.1

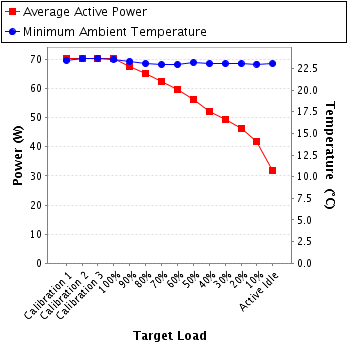

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232-C
Input Connection: Default
Calibration Institute: Tai Yi Electronics & Surveillance Co., Ltd.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T9802230701
Date of Calibration: 30-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: Temperature@lert
Driver Version: 2.6.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 115 150.0 0.623 1.0 0.978 70.2 0.4%
Calibration 2 115 150.0 0.624 1.0 0.978 70.4 0.4%
Calibration 3 115 150.0 0.624 1.0 0.978 70.4 0.4%
100% 115 150.0 0.622 1.0 0.978 70.2 0.4%
90% 115 150.0 0.601 1.0 0.978 67.7 0.4%
80% 115 150.0 0.578 1.0 0.977 65.2 0.4%
70% 115 150.0 0.555 1.0 0.976 62.5 0.4%
60% 115 150.0 0.533 1.0 0.973 59.8 0.4%
50% 115 150.0 0.503 1.0 0.968 56.1 0.4%
40% 115 150.0 0.470 1.0 0.964 52.3 0.4%
30% 115 150.0 0.443 1.0 0.964 49.3 0.5%
20% 115 150.0 0.415 1.0 0.962 46.1 0.5%
10% 116 150.0 0.378 1.0 0.956 41.7 0.5%
Active Idle 116 150.0 0.292 1.0 0.947 31.9 0.6%

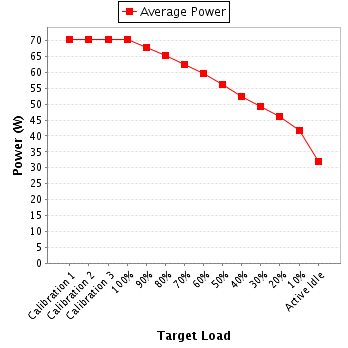

Power details for pwr1
