Acer Incorporated Acer AT115 F1 (AMD Opteron 4164EE, 1.80 GHz) ssj_ops@100% = 215,832
ssj_ops@100% per JVM = 107,916
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Sep 29, 2010
Hardware Availability: Oct-2010 Software Availability: Sep-2009 Publication: Nov 3, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,776
Calibration 2     217,760
Calibration 3     218,101
ssj_ops@calibrated=217,931
100% 99.0% 217,931 215,832
90% 89.6% 196,138 195,296
80% 79.9% 174,345 174,064
70% 69.5% 152,552 151,496
60% 60.3% 130,758 131,449
50% 50.1% 108,965 109,218
40% 39.5% 87,172 86,074
30% 30.0% 65,379 65,433
20% 19.8% 43,586 43,060
10% 10.0% 21,793 21,766
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT115 F1 (AMD Opteron 4164EE, 1.80 GHz)
Form Factor: Tower
CPU Name: AMD Opteron 4164EE
CPU Characteristics: Six-Core, 1.8GHz, 6MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 6 cores, 1 chip, 6 cores/chip
Hardware Threads: 6 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB, PC3-1066R- ECC, slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: FSP450-60EP
Disk Drive: 1 x 64 GB SSD 2.5" SATA (Intel SSDSA2SH064G1GC #899386)
Disk Controller: Onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82574L-Single GbE Controller (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM <build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_049398 <JIT enabled, AOT enabled>
JVM Command-line Options: -Xms1625m -Xmn1200m -Xmx1875m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -XlockReservation -Xnoloa -XtlhPrefetch
JVM Affinity: start /affinity [3F,FC0]
JVM Instances: 2
JVM Initial Heap (MB): 1625
JVM Maximum Heap (MB): 1625
JVM Address Bits: 64
Boot Firmware Version: D13
Management Firmware Version: none
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
none
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-07EAG2NCMG5.001 109,507
WIN-07EAG2NCMG5.002 106,325
ssj_ops@100% 215,832
ssj_ops@100% per JVM 107,916

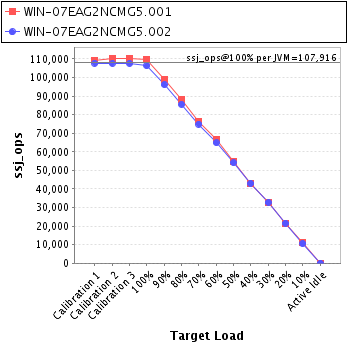

Graph of per-instance results
JVM 'WIN-07EAG2NCMG5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,985
Calibration 2     110,081
Calibration 3     110,432
ssj_ops@calibrated=110,257
100% 99.3% 110,257 109,507
90% 89.9% 99,231 99,136
80% 80.2% 88,205 88,424
70% 69.4% 77,180 76,551
60% 60.4% 66,154 66,549
50% 49.9% 55,128 55,061
40% 39.1% 44,103 43,056
30% 29.6% 33,077 32,673
20% 19.5% 22,051 21,450
10% 10.1% 11,026 11,108
Active Idle   0 0
Graph of results
JVM 'WIN-07EAG2NCMG5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,791
Calibration 2     107,679
Calibration 3     107,669
ssj_ops@calibrated=107,674
100% 98.7% 107,674 106,325
90% 89.3% 96,907 96,159
80% 79.5% 86,139 85,639
70% 69.6% 75,372 74,945
60% 60.3% 64,604 64,900
50% 50.3% 53,837 54,156
40% 40.0% 43,070 43,018
30% 30.4% 32,302 32,761
20% 20.1% 21,535 21,610
10% 9.9% 10,767 10,658
Active Idle   0 0

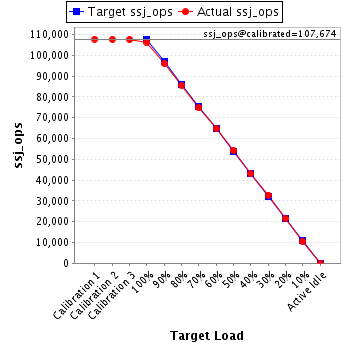

Graph of results
