Acer Incorporated Acer AR585 F1 ssj_ops@100% = 1,812,580
ssj_ops@100% per JVM = 226,572
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Oct 27, 2010
Hardware Availability: Aug-2010 Software Availability: Dec-2009 Publication: Nov 18, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,823,052
Calibration 2     1,818,982
Calibration 3     1,825,779
ssj_ops@calibrated=1,822,381
100% 99.5% 1,822,381 1,812,580
90% 90.0% 1,640,143 1,639,635
80% 79.9% 1,457,904 1,456,993
70% 69.9% 1,275,666 1,274,016
60% 60.0% 1,093,428 1,092,595
50% 49.9% 911,190 909,108
40% 40.1% 728,952 731,507
30% 30.0% 546,714 546,988
20% 20.0% 364,476 364,744
10% 9.9% 182,238 180,895
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6174
CPU Characteristics: 12-Core, 2.20 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 48 cores, 4 chips, 12 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 2048 MB
Memory Details: 2GB 1Rx8 PC3-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 64GB SSD 2.5" SATA, Acer P/N:KF.0640N.001
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: PS2
Monitor: Direct
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: T01
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-QMTM90BV0CG.001 223,852
WIN-QMTM90BV0CG.002 229,618
WIN-QMTM90BV0CG.003 223,783
WIN-QMTM90BV0CG.004 224,541
WIN-QMTM90BV0CG.005 234,134
WIN-QMTM90BV0CG.006 225,555
WIN-QMTM90BV0CG.007 227,370
WIN-QMTM90BV0CG.008 223,727
ssj_ops@100% 1,812,580
ssj_ops@100% per JVM 226,572

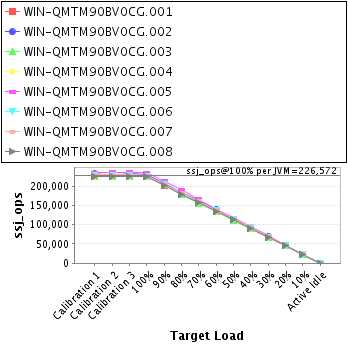

Graph of per-instance results
JVM 'WIN-QMTM90BV0CG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,329
Calibration 2     224,640
Calibration 3     225,647
ssj_ops@calibrated=225,144
100% 99.4% 225,144 223,852
90% 90.0% 202,629 202,671
80% 80.0% 180,115 180,190
70% 70.3% 157,601 158,223
60% 60.6% 135,086 136,373
50% 49.6% 112,572 111,655
40% 39.5% 90,057 88,985
30% 29.9% 67,543 67,376
20% 20.2% 45,029 45,435
10% 9.9% 22,514 22,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,376
Calibration 2     227,861
Calibration 3     231,530
ssj_ops@calibrated=229,696
100% 100.0% 229,696 229,618
90% 89.6% 206,726 205,867
80% 79.9% 183,757 183,472
70% 70.4% 160,787 161,755
60% 60.6% 137,817 139,187
50% 49.6% 114,848 113,829
40% 40.0% 91,878 91,903
30% 30.0% 68,909 68,879
20% 19.8% 45,939 45,427
10% 10.1% 22,970 23,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,327
Calibration 2     224,830
Calibration 3     224,960
ssj_ops@calibrated=224,895
100% 99.5% 224,895 223,783
90% 90.4% 202,406 203,396
80% 79.7% 179,916 179,315
70% 69.4% 157,427 156,012
60% 59.7% 134,937 134,284
50% 49.6% 112,448 111,506
40% 40.3% 89,958 90,651
30% 29.9% 67,469 67,261
20% 20.1% 44,979 45,131
10% 9.8% 22,490 22,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,465
Calibration 2     225,781
Calibration 3     225,467
ssj_ops@calibrated=225,624
100% 99.5% 225,624 224,541
90% 90.0% 203,062 203,005
80% 80.7% 180,499 182,000
70% 69.9% 157,937 157,762
60% 60.0% 135,374 135,295
50% 50.0% 112,812 112,858
40% 39.9% 90,250 90,028
30% 30.1% 67,687 67,920
20% 20.0% 45,125 45,063
10% 9.8% 22,562 22,055
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     234,920
Calibration 2     235,869
Calibration 3     235,453
ssj_ops@calibrated=235,661
100% 99.4% 235,661 234,134
90% 90.5% 212,095 213,170
80% 80.8% 188,529 190,328
70% 70.2% 164,963 165,545
60% 59.4% 141,397 140,009
50% 50.1% 117,831 117,979
40% 40.1% 94,264 94,523
30% 30.1% 70,698 70,846
20% 20.0% 47,132 47,120
10% 10.0% 23,566 23,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,108
Calibration 2     226,693
Calibration 3     228,023
ssj_ops@calibrated=227,358
100% 99.2% 227,358 225,555
90% 90.1% 204,622 204,880
80% 78.9% 181,886 179,372
70% 69.5% 159,150 158,086
60% 59.8% 136,415 135,874
50% 49.8% 113,679 113,334
40% 40.4% 90,943 91,851
30% 29.8% 68,207 67,704
20% 19.8% 45,472 45,050
10% 9.8% 22,736 22,389
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,153
Calibration 2     229,111
Calibration 3     229,886
ssj_ops@calibrated=229,499
100% 99.1% 229,499 227,370
90% 89.4% 206,549 205,282
80% 79.7% 183,599 182,989
70% 69.8% 160,649 160,281
60% 60.1% 137,699 137,910
50% 50.4% 114,749 115,638
40% 40.6% 91,799 93,196
30% 30.3% 68,850 69,606
20% 20.1% 45,900 46,168
10% 10.0% 22,950 22,882
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-QMTM90BV0CG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,374
Calibration 2     224,197
Calibration 3     224,812
ssj_ops@calibrated=224,505
100% 99.7% 224,505 223,727
90% 89.7% 202,054 201,364
80% 79.9% 179,604 179,327
70% 69.6% 157,153 156,352
60% 59.5% 134,703 133,662
50% 50.0% 112,252 112,310
40% 40.3% 89,802 90,370
30% 30.0% 67,351 67,396
20% 20.2% 44,901 45,350
10% 10.0% 22,450 22,382
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
